Description
Product Overview
ICS Triplex T9110 is a high-performance processor module designed for the AADvance® and Trusted® safety control system platforms. It serves as the central processing unit of the safety controller, executing application logic, managing safety functions, coordinating I/O processing, and providing communication services between the controller and external automation systems. The T9110 is a core component in industrial safety instrumented systems (SIS), where high availability, fault tolerance, and deterministic control performance are critical.
ICS Triplex T9110 integrates a powerful industrial processor, safety kernel execution capability, diagnostic functions, and communication management features. Within an AADvance safety controller architecture, the T9110 performs application program execution, processes input data from I/O modules, generates output commands, communicates with other processor modules, and exchanges information with supervisory systems such as DCS and HMI platforms.
ICS Triplex T9110 is designed for safety-critical applications requiring compliance with demanding industrial reliability standards. Through advanced diagnostics, watchdog monitoring, redundant power support, and fault-tolerant architecture, T9110 helps achieve high system availability and supports SIL-rated safety applications in industries such as oil and gas, petrochemical, power generation, and process automation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | T9110 |
| Manufacturer | ICS Triplex (Rockwell Automation) |
| Product Type | Safety Processor Module / Controller Processor |
| System Platform | AADvance® Safety Controller / Trusted® Safety System |
| Main Function | Safety logic execution and controller management |
| Processor Function | Executes application logic and safety kernel |
| Power Supply | 24 VDC |
| Supply Voltage Range | 18–32 VDC |
| Power Consumption | Approx. 8 W |
| Maximum Current Consumption | Approx. 380 mA |
| Communication Interfaces | Ethernet, USB, RS-232, RS-485 |
| Communication Function | Controller networking and system integration |
| Redundancy Support | Processor redundancy support |
| Diagnostic Function | Continuous self-test and watchdog monitoring |
| Operating Temperature | -25°C to +60°C |
| Mounting Type | Controller chassis / rack installation |
| Weight | Approx. 0.44 kg |
| Safety Capability | SIL 2 / SIL 3 applications (system dependent) |

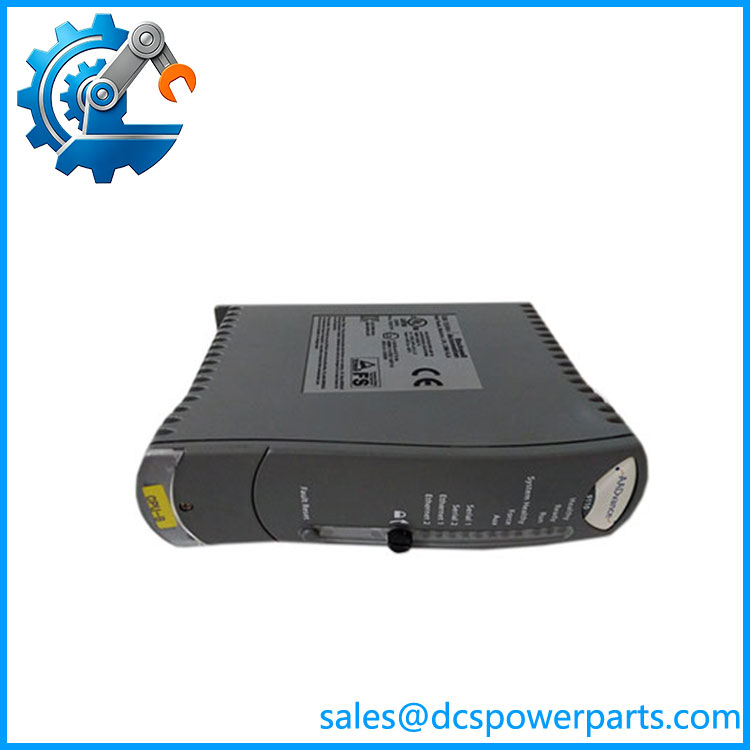

T9110
Main Features and Advantages
ICS Triplex T9110 provides a powerful processing foundation for safety-critical automation systems. As the main processor module of the AADvance® controller platform, T9110 is responsible for executing safety application programs, processing field signals, managing controller operations, and maintaining communication with other system components. This centralized processing capability allows complex safety logic to be executed with high speed and predictable response.
One of the most important advantages of ICS Triplex T9110 is its fault-tolerant design. The module supports redundant processor configurations, allowing systems to continue operation even when an individual processor experiences a fault. In redundant architectures, replacement and synchronization procedures can be performed with minimal disruption, improving plant availability and reducing unplanned shutdown risks.
ICS Triplex T9110 incorporates advanced diagnostic mechanisms including internal health monitoring, watchdog supervision, and automatic fault detection. These functions continuously verify processor operation and system integrity, helping maintenance personnel quickly identify abnormal conditions before they affect safety performance.
The communication capability of T9110 provides flexible integration with industrial automation environments. Through Ethernet and serial communication interfaces, the processor can exchange information with engineering tools, operator interfaces, distributed control systems, and other safety controllers.
ICS Triplex T9110 is designed for demanding industrial environments where reliability and continuous operation are essential. The module uses industrial-grade electronic components and supports stable operation under temperature variations, electrical noise, and long-term operating conditions.
The modular structure of T9110 simplifies system expansion and maintenance. Users can integrate additional I/O modules, communication modules, and processor redundancy options according to application requirements without redesigning the entire safety architecture.
For industries requiring high-integrity protection systems, ICS Triplex T9110 provides a reliable processing solution that combines safety performance, diagnostic capability, communication flexibility, and lifecycle support.
Applications
ICS Triplex T9110 is widely used in safety instrumented systems where reliable and deterministic control is required. As the processor module of AADvance® safety controllers, T9110 provides the computing power required for emergency shutdown, fire and gas protection, burner management, and critical process monitoring applications.
In oil and gas facilities, ICS Triplex T9110 is used for refinery protection systems, offshore platforms, pipeline safety applications, and process shutdown functions. The module provides fast safety logic execution to protect personnel, equipment, and production assets.
Petrochemical plants utilize T9110 in safety systems responsible for monitoring hazardous processes and initiating protective actions during abnormal operating conditions. Its diagnostic capability and fault tolerance help improve plant safety and operational reliability.
In power generation facilities, ICS Triplex T9110 supports turbine protection, boiler safety systems, and auxiliary process safety applications. Reliable processor operation is essential for maintaining safe plant operation and preventing equipment damage.
Industrial manufacturing plants, chemical processing facilities, and infrastructure projects also use T9110 where safety controllers must operate continuously with minimal downtime.
Typical application areas include:
- Safety Instrumented Systems (SIS)
- Emergency Shutdown Systems (ESD)
- Fire and Gas Detection Systems
- Oil and Gas Production Facilities
- Petrochemical Processing Plants
- Power Generation Protection
- Turbine Safety Systems
- Chemical Process Automation
- Critical Industrial Control Applications
