Description
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ICS Triplex |
| Product Family | Trusted TMR Safety System |
| Model | TC-501-02-4M5 |
| Product Type | Trusted TMR I/O SmartSlot Cable |
| Cable Function | I/O module-to-FTA/VFTA connection |
| Channel Configuration | 40-channel input |
| Cable Length | 4.5 m / approx. 14.8 ft |
| Insulation Code | 02 |
| Insulation Type | Low Smoke Zero Halogen (LSZH) |
| Fire Characteristic | Flame-retardant; IEC 60332-3 Cat A reference |
| Architecture | Trusted TMR |
| Application | Safety Instrumented System I/O |
| Cable Construction | Multicore shielded I/O cable |
| Typical Connection | Trusted I/O module ↔ FTA/VFTA |
| Condition | New Surplus / Factory Sealed / Fully Tested |
The TC-501-02-4M5 part number is specifically documented as a SmartSlot cable, and the Trusted cable documentation states that these cables connect Trusted analog and digital I/O modules to FTAs or VFTAs. It also explains that the cable-length designation is added to the part number, with 02 representing LSZH insulation.
One secondary specification identifies the cable as a 40-channel input-to-FTA assembly with a 4.5 m length.
Application Scenarios & Pain Points
In a TMR safety system, a cable failure is not something to dismiss as ordinary instrumentation wiring. The termination path carries the I/O signals that the safety controller depends on, and a replacement with the wrong pinout can create a much larger commissioning problem.
- Trusted TMR digital input systems: TC-501-02-4M5 provides the physical connection between applicable Trusted input modules and field termination hardware.
- Trusted analog input installations: The same SmartSlot cable family supports Trusted analog I/O connections where the corresponding module/FTA combination is specified.
- Oil, gas, chemical, and power SIS cabinets: The LSZH construction is useful where smoke and halogen emissions are controlled as part of the cabinet/cable specification.
- Cabinet replacement work: The 4.5 m length is suited to installations where the FTA is not immediately adjacent to the Trusted I/O rack.
Field note: Measure the installed cable route before ordering. A nominal 4.5 m replacement is not automatically “close enough” if the original cable is routed through a crowded marshalling cabinet with service loops and segregation requirements.
Brief Field Case
A safety cabinet can produce intermittent I/O diagnostics after maintenance even though every module tests normally. One practical suspect is the cable and connector path. Inspect the connector latch, pin seating, shielding, and cable bend radius before replacing a healthy Trusted I/O module.

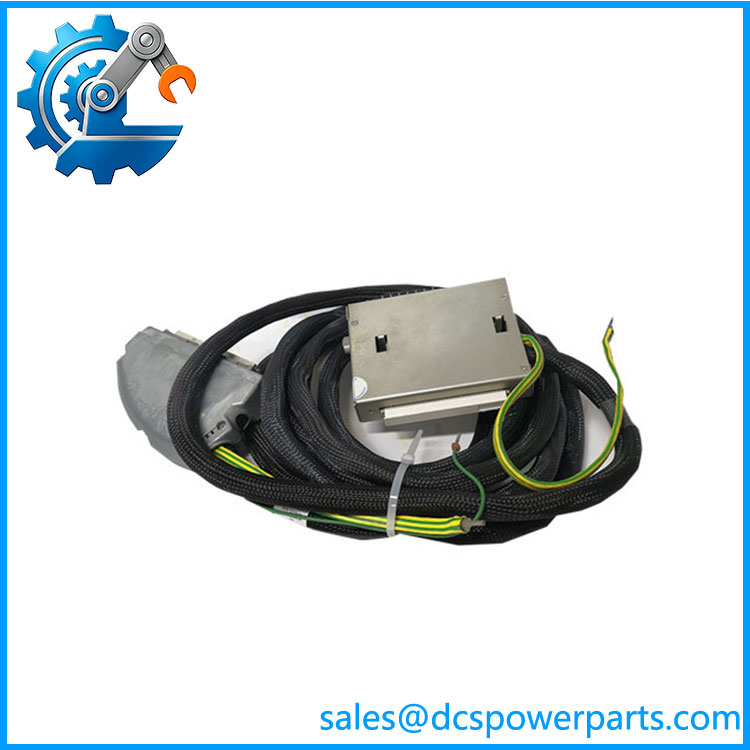

TC-501-02-4M5
Related Products
- ICS Triplex TC-501-02-4M5 — Subject 40-channel input SmartSlot cable, approximately 4.5 m long, using LSZH insulation.
- ICS Triplex TC-501-02-2M5 — Same cable family and insulation code with a shorter 2 m length; appropriate where the FTA is closer to the I/O rack.
- ICS Triplex TC-502-02-4M5 — Related Trusted I/O cable designation intended for a different I/O connection arrangement; verify the module type and pinout before substitution.
- ICS Triplex TC-506-02-4M5 — Higher-channel-count cable family referenced for different Trusted I/O arrangements; it is not a direct replacement for TC-501 without confirming the termination architecture.
- ICS Triplex TC-001-02-2M5 — Shorter Trusted cable family member used for other I/O connection arrangements; different part number and wiring application.
- ICS Triplex TC-201-02-4M5 — Related Trusted I/O cable designation. The matching module and termination assembly must be verified before use.
- ICS Triplex TC-801-02-4M5 — Another Trusted I/O cable family member for a different system connection arrangement.
- ICS Triplex T8310 — Trusted TMR Expander Interface associated with the wider Trusted architecture; it is system hardware rather than a direct cable replacement.
- ICS Triplex T8451 / T8461 — Trusted TMR digital output modules. These are complementary safety I/O hardware, not substitutes for the TC-501 cable.
- ICS Triplex T8480 — Trusted TMR analog output module. It uses the Trusted I/O architecture but requires its specified termination/cable arrangement.
The Engineer’s Guide: Field Pitfalls to Avoid
WARNING 1 — Do not treat the last three characters as an arbitrary length code.
For the Trusted SmartSlot cable family, the documentation states that cable length forms part of the ordering designation. 4M5 means approximately 4.5 m, not simply “a TC-501 cable variant.”
How to avoid it: Match the installed cable length and routing requirement before ordering.
WARNING 2 — Do not substitute 02 and 03 cable constructions casually.
The Trusted documentation identifies 02 as Low Smoke Zero Halogen (LSZH), while other insulation codes represent different cable constructions.
How to avoid it: Match the complete suffix when the plant specification requires LSZH cable.
WARNING 3 — Check the connector and pinout before installation.
A SmartSlot cable is not generic multicore wiring. The termination arrangement is part of the system design.
How to avoid it: Compare the replacement cable against the original for:
- Connector type
- Keying/latching arrangement
- Pin count
- Cable length
- Cable marking
- Shield termination
- FTA/VFTA compatibility
Never force a connector because the shell appears mechanically similar.
Frequently Asked Questions (FAQ)
What is ICS Triplex TC-501-02-4M5?
It is a Trusted TMR I/O SmartSlot cable used to connect applicable Trusted I/O modules with Field Termination Assemblies or Versatile Field Termination Assemblies.
It is not a processor, communication card, or analog I/O module.
What does the “4M5” suffix mean?
4M5 indicates an approximately 4.5-meter cable length. The Trusted cable documentation explains that length is encoded into the cable part number.
This matters when the cable must be routed through an existing SIS cabinet with defined segregation and service-loop requirements.
What does “02” mean in TC-501-02-4M5?
The 02 portion identifies the Low Smoke Zero Halogen (LSZH) cable insulation option in the Trusted SmartSlot cable designation system.
Do not replace it with another insulation-code version simply because the physical cable length is identical.
Is TC-501-02-4M5 a 40-channel cable?
Yes. Available technical specifications identify the TC-501-02-4M5 as a 40-channel input-to-FTA SmartSlot cable with a 4.5 m length.
The exact module and FTA pairing should still be checked against the cabinet documentation.
Can I use TC-501-02-4M5 for a Trusted output module?
Do not assume so. The TC-501 designation is associated with a particular I/O cable arrangement. Other Trusted cable numbers exist for different I/O configurations.
Before substitution, verify:
- Trusted I/O module model.
- FTA or VFTA model.
- Cable part number.
- Channel count.
- Connector/keying arrangement.
- Cabinet wiring drawing.
How should a used TC-501-02-4M5 cable be inspected?
For a safety-system spare, inspect more than the jacket:
- Connector latch condition
- Pin straightness
- Contact oxidation
- Shield continuity
- Conductor continuity
- Insulation resistance
- Cable jacket cuts or crushing
- Evidence of excessive bending
- Correct part-number marking
A cable can look fine externally while having a damaged conductor near the connector where repeated cabinet movement has concentrated mechanical stress.
What should I request when buying a new or refurbished TC-501-02-4M5?
Specify the complete TC-501-02-4M5 number and request photographs of the actual cable labels and both connectors.
For a critical Trusted SIS spare, also request confirmation of:
- 4.5 m length
- LSZH construction
- Correct connector configuration
- Continuity test
- Insulation test where applicable
- Physical inspection
- Condition
- Warranty
That level of documentation is worthwhile for a safety-system cable because a wrong pinout can create a commissioning problem long before the cable itself appears defective.
