Description

ICS Triplex T9481 | 3-Channel Isolated Analog Output Module | AADvance Safety System

Key Technical Specifications

The AADvance Controller Reference Manual explicitly lists T9481 as a 3-channel analog output module, while T9482 provides 8 channels. It also identifies T9881 and T9882 as the corresponding simplex and dual analog-output termination assemblies.

Product Introduction

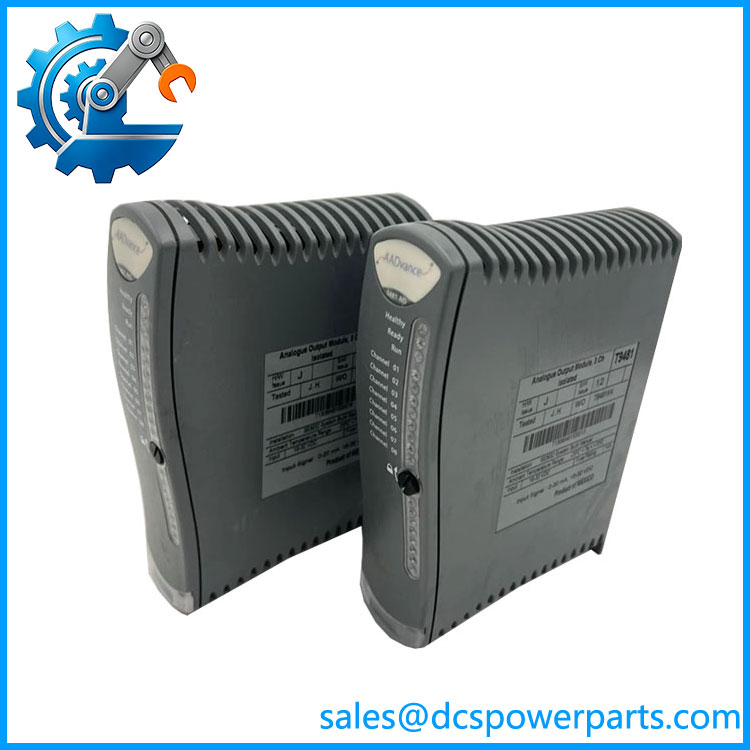

The ICS Triplex T9481 is a three-channel isolated analog output module used in the AADvance safety control system. Its position is on the output side of the controller architecture, where commanded values are passed to analog field devices such as valve positioners, actuators, and other continuously controlled final elements. The module is specifically identified in the AADvance documentation as an isolated analog-output device rather than a digital output or general-purpose PLC I/O module.

The ICS Triplex T9481 is also significant from a safety-system engineering perspective because AADvance architectures define how analog output modules are arranged for different fault-tolerance requirements. The documentation lists T9481/T9842 analog-output modules in 1oo1, 1oo2, and 1oo2D configurations, with specific rules for SIL-rated applications. The termination assembly and redundancy arrangement therefore need to be considered together with the module itself.

ics T9481

Application Scenarios & Field Pitfalls — The Engineer’s Perspective

Engineering Pain Point

A failed analog output module can leave a process actuator unavailable even though the controller and input modules remain operational. With the , the important question is not simply whether the replacement powers up; the engineer needs to confirm the channel assignment, termination assembly, output configuration, redundancy arrangement, and required safe-state behavior.

Typical Applications

Safety Instrumented Systems
The can be used within AADvance safety architectures where analog output signals are required for final control elements.

Control Valve Positioning
Analog outputs can be used for continuously variable commands to valve positioners and similar field devices.

Process Control
The module is suitable for applications requiring isolated analog commands from the AADvance controller to external process equipment.

High-Availability Output Architectures
AADvance documentation specifies the use of modules in fault-tolerant analog-output arrangements, including dual configurations where required by the safety architecture.

Technical Pitfalls

1. Do not confuse with T9451.
   T9451 is an 8-channel digital output module. is a 3-channel analog output module. The similar numbering makes this an easy procurement error.
2. Do not confuse with T9482.
   provides 3 analog output channels, while T9482 provides 8. The channel count is a fundamental hardware difference.
3. Check the termination assembly.
   T9881 is identified for simplex analog-output arrangements and T9882 for dual arrangements. Replacing the electronic module without checking the termination architecture can result in an incorrect system configuration.
4. Verify the required safety architecture.
   A used in a SIL-rated application is not simply a matter of installing one module. The AADvance architecture determines whether one or two analog-output modules are required for the intended safety function.
5. Do not rely on conflicting reseller specifications.
   Secondary listings variously describe the as supporting 0–10 V, ±10 V, 4–20 mA, or other output combinations. These claims should not be treated as interchangeable engineering specifications without checking the applicable AADvance documentation and installed configuration.
6. Verify the actual field loop.
   Before replacement, document whether the connected device is a valve positioner, actuator, drive reference, or another analog load. Check loop wiring, termination, scaling, safe state, and diagnostics rather than assuming the existing configuration from the module number alone.
7. Safety integrity depends on the complete system.
   The presence of a does not by itself make an application SIL 3. The processor arrangement, output architecture, termination assembly, application configuration, diagnostics, and certified installation all matter.

Related Products

• ICS Triplex T9482 — 8-channel isolated analog output module; same AADvance analog-output family but higher channel count.
• ICS Triplex T9881 — Simplex analog output termination assembly for /T9842 applications.
• ICS Triplex T9882 — Dual analog output termination assembly for redundant analog-output arrangements.
• ICS Triplex T9431 — 8-channel isolated analog input module.
• ICS Triplex T9432 — 16-channel isolated analog input module.
• ICS Triplex T9451 — 8-channel isolated 24 VDC digital output module.
• ICS Triplex T9401 — 8-channel isolated 24 VDC digital input module.
• ICS Triplex T9402 — 16-channel isolated 24 VDC digital input module.
• ICS Triplex T9300 — AADvance I/O base unit used to accommodate the I/O modules.
• ICS Triplex T9110 — AADvance processor module; controller hardware rather than an analog I/O module.

Procurement Note

For a replacement request, specify the complete identification as:

ICS Triplex — 3-Channel Isolated Analog Output Module — AADvance

Also provide the T9300 base configuration, T9881/T9882 termination assembly, number of installed modules, redundancy architecture, channel assignment, field-device type, application configuration, and module revision where available.

For used or surplus inventory, inspect the module housing and connector interface, then verify every output channel under an appropriate AADvance test arrangement. A visual inspection or simple power-up check does not establish analog accuracy, output integrity, diagnostic operation, or correct behavior of a safety function.

Engineering classification: ICS Triplex = AADvance 3-channel isolated analog output module. It is not a digital output module, processor module, or standalone analog signal converter.
