Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | T8850 |
| Manufacturer | ICS Triplex / Rockwell Automation |
| Product Type | Trusted Field Termination Assembly (FTA) |
| System Platform | Trusted TMR Safety System |
| Channel Capacity | 40 output channels |
| Channel Grouping | Five groups of eight channels |
| Application | Analog output and digital output termination |
| Field Voltage Range | 18–32 VDC |
| Mounting | DIN rail compatible installation |
| Connection Type | Field screw terminals |
| Compatible Modules | Trusted output modules including T8451 and T8480 families |
| Cable Interface | Trusted I/O companion slot cable connection |
| Diagnostics | Field power indication by channel group |
| Installation Location | Safety system cabinet / marshalling area |
Application Scenarios & Pain Points
Safety output circuits are often the last point before a shutdown action occurs. A wiring or termination problem here can prevent a healthy safety controller from reaching the field device.
Typical applications:
- Oil & Gas Facilities: Used for emergency shutdown valves, actuator interfaces, and safety-related field output circuits.
- Chemical Plants: Supports shutdown systems where output signals drive isolation valves, alarms, and protective equipment.
- Power Generation: Applied in turbine protection and auxiliary safety systems requiring reliable output termination.
- Process Manufacturing: Connects Trusted safety outputs to solenoids, relays, and final control elements.
Field note: A processing facility experienced repeated output channel alarms after maintenance work in a safety cabinet. The Trusted processor and I/O modules tested correctly, but inspection found damaged termination connections. Replacing the T8850 assembly and checking field wiring restored normal output operation.

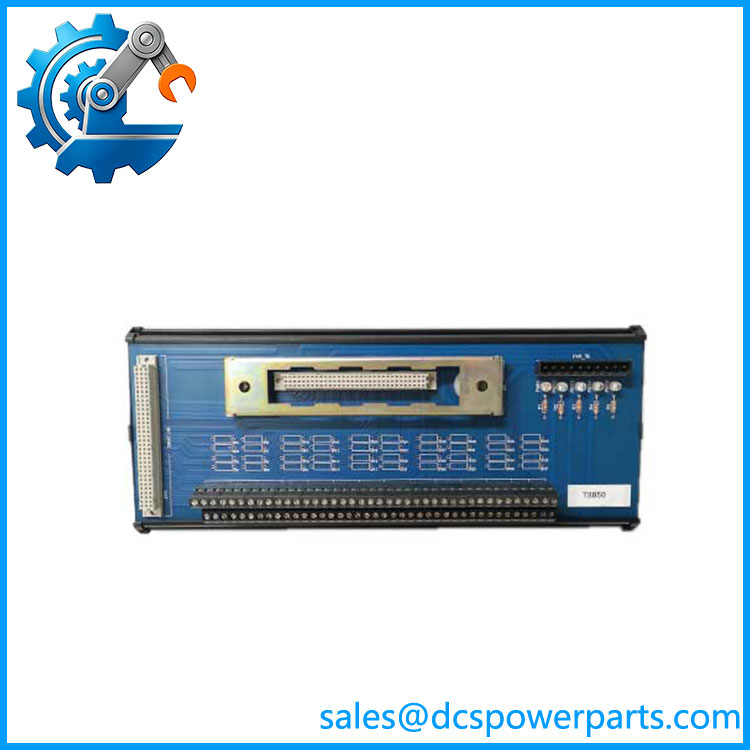

T8850
Related Products
- ICS Triplex T8451 — Trusted digital output module commonly paired with T8850 for 24 VDC output applications.
- ICS Triplex T8461 — Trusted digital output module for safety-related discrete control signals.
- ICS Triplex T8480 — Trusted analog output module designed for continuous control signal applications with compatible termination hardware.
- ICS Triplex T8870 — Related Trusted field termination assembly designed for different output module arrangements.
- ICS Triplex T8310 — Trusted expander processor module used for system expansion architectures.
- ICS Triplex T8151 — Trusted communication interface module supporting external system communication.
- ICS Triplex T8231 — Trusted power supply module supporting safety system cabinet power requirements.
- ICS Triplex T8403 — Trusted input/output interface component used in Trusted TMR configurations.
The Engineer’s Guide: Field Pitfalls to Avoid
⚠️ Incorrect FTA and Output Module Pairing
The T8850 is not a universal termination assembly for every Trusted output module.
How to avoid: Verify the exact output module model, companion cable type, and termination drawing before replacement.
⚠️ Field Voltage Misconfiguration
A wiring mistake on the field supply side can damage outputs or create false shutdown signals.
How to avoid: Confirm field voltage levels, polarity, and channel grouping before energizing the cabinet.
⚠️ Cable Assembly Compatibility Issues
Trusted systems use specific companion slot cables between modules and FTAs.
How to avoid: Check cable part numbers and connector condition; inspect pins for contamination or oxidation before installation.
Frequently Asked Questions (FAQ)
What is the main function of the ICS Triplex T8850?
The T8850 is a 40-channel Trusted Field Termination Assembly used to connect safety system output modules with external field devices.
Is the an I/O module?
No. The is an FTA. It provides field wiring termination and interface functions but does not execute safety logic.
Which Trusted modules work with the ?
Typical compatible applications include Trusted output modules such as T8451 and T8480 families, depending on the system design and cable arrangement.
Can I replace a without changing the safety application?
Normally yes, because the FTA does not contain the safety program. However, field wiring, output testing, and proof-test procedures should be completed before returning the system to service.
Why do output channels fail after replacing an FTA?
Possible causes include:
- Incorrect cable connection
- Wrong field voltage supply
- Channel wiring errors
- Damaged terminal connections
- Incorrect module pairing
What should be checked before purchasing a ?
Recommended checks:
- Existing FTA model
- Connected Trusted output module
- Companion cable type
- Field voltage arrangement
- Cabinet wiring drawings
- Safety system revision
Is a refurbished suitable for SIS applications?
A tested refurbished unit can be suitable when it passes terminal inspection, continuity testing, field power checks, and compatibility verification with the installed Trusted system.
