Description
Product Features
The T8442 is a high-precision TMR (Triple Modular Redundant) speed monitor module developed by ICS TRIPLEX (Rockwell Automation), specially designed for the Trusted series Safety Instrumented System (SIS). As a core safety monitoring component for rotating machinery, it is dedicated to real-time speed detection, overspeed protection and abnormal speed judgment of industrial high-speed rotating equipment. With SIL3 safety certification, triple redundant hardware voting architecture and high-resolution signal processing capability, it provides ultra-high reliable speed safety protection for key industrial equipment, effectively avoiding equipment failure and safety accidents caused by overspeed and under-speed faults.
1. Professional TMR Triple Redundant Safety Architecture: Adopts standard 2oo3 triple modular redundant design, with three independent signal acquisition and processing channels. The intelligent voting mechanism eliminates single-point failure risks, effectively preventing false protection and missed protection, and meeting the highest safety integrity requirements of industrial safety systems.
2. SIL3 International Safety Certification: Fully compliant with IEC 61508 SIL3 and TÜV safety standards, suitable for high-risk process industry safety instrumented systems. It supports critical safety protection scenarios such as equipment overspeed interlock, emergency shutdown and running state monitoring.
3. High-precision Speed Monitoring Performance: Equipped with high-resolution frequency acquisition and algorithm processing unit, supporting wide-range speed signal detection. It features ultra-low measurement error and excellent linearity, realizing accurate real-time monitoring and trend tracking of rotating equipment speed.
4. Multi-channel Independent Detection & Protection: Integrated multi-channel independent speed signal acquisition interface, each channel equipped with independent fuse protection circuit. It supports synchronous monitoring of multiple equipment speed signals, with independent channel operation without mutual interference.
5. Comprehensive Intelligent Fault Diagnosis: Built-in full-coverage fault detection function, capable of automatically identifying sensor signal loss, circuit open circuit, short circuit, frequency abnormality and internal module operation faults. It uploads real-time fault codes and alarm logs to the upper system for rapid fault location and maintenance.
6. Online Hot-swap Maintenance Support: Adopts SmartSlot hot-replacement technology, supporting online hot-swap replacement without system shutdown and safety loop interruption. It greatly reduces system maintenance downtime and improves the continuous operation rate of industrial production.
7. Strong Industrial Environmental Adaptability: Adopts industrial-grade reinforced structure and EMC electromagnetic shielding design, with strong resistance to on-site electromagnetic interference, temperature fluctuation, vibration and humidity. It supports 24/7 long-term stable operation in harsh industrial environments such as petrochemical and power plants.
8. Accurate Event Recording Function: Supports high-precision timestamp event recording, which can trace and store recent fault events and speed abnormal records. It provides reliable data traceability for post-fault analysis and equipment operation optimization.

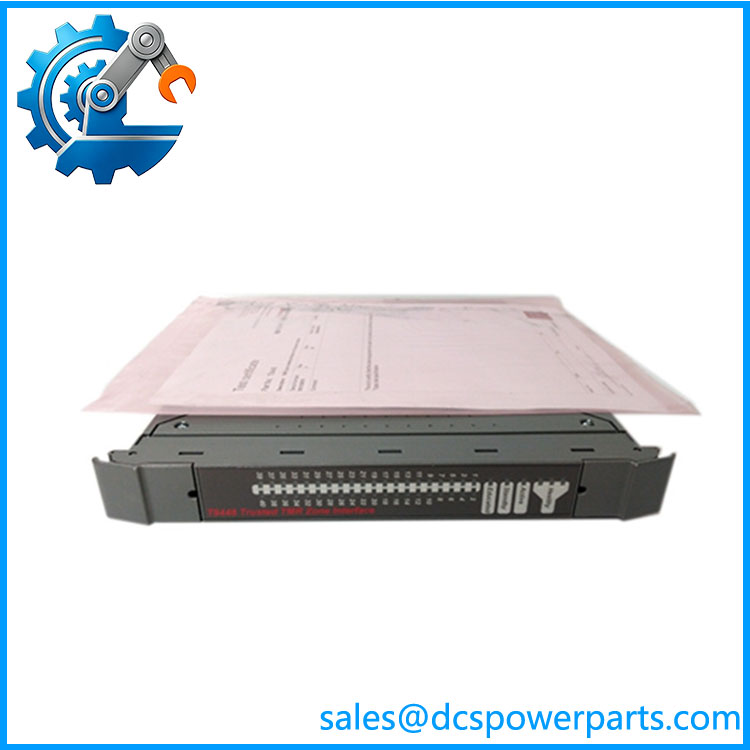

T8442
Product Parameters
|
Item
|
Specification
|
|
Part Number
|
T8442
|
|
Brand
|
ICS TRIPLEX (Rockwell Automation)
|
|
Product Type
|
TMR Safety Speed Monitor Module
|
|
Applicable System
|
Trusted Series Safety Instrumented System (SIS)
|
|
Safety Level
|
SIL3 Certified (IEC 61508 / TÜV Certified)
|
|
System Architecture
|
2oo3 Triple Modular Redundant (TMR)
|
|
Monitoring Frequency Range
|
0.1Hz ~ 2000Hz
|
|
Measurement Accuracy
|
±0.2% Full Scale (at 25°C), 0.01% High Resolution
|
|
Field Power Supply
|
24VDC Industrial DC Power Supply
|
|
Single Channel Protection
|
50mA Independent Fuse Protection per Channel
|
|
Signal Response Time
|
≤10ms High-speed Response
|
|
Anti-interference Level
|
3000V AC Isolation Anti-interference Design
|
|
Hot-swap Function
|
Support Online SmartSlot Hot-replacement
|
|
Event Recording
|
High-precision Timestamp Recording, Support Fault Log Storage and Export
|
|
Operating Temperature Range
|
|
|
Storage Temperature Range
|
-40℃ ~ +85℃
|
|
Working Humidity
|
10%~95% Non-condensing
|
|
Installation Method
|
Standard Chassis Rack Slot Mounting
|
|
Core Functions
|
Rotating machinery speed real-time monitoring, overspeed/underspeed safety interlock, signal fault diagnosis, event log recording, safety protection output
|
Product Usage Method
1. Pre-installation Inspection: Inspect the T8442 module appearance, terminal blocks, circuit boards and indicator lights to confirm no damage, aging or loose components. Verify the compatibility with Trusted SIS system and on-site speed sensors to meet industrial safety speed monitoring specifications.
2. Static Protection Operation: Complete installation and wiring in a dry, dust-free and static-proof industrial environment. Wear professional anti-static gloves and wrist straps to prevent static discharge from damaging internal TMR redundant circuits and high-precision frequency processing chips of the module.
3. Module Installation & Fixation: Insert the T8442 module smoothly into the designated slot of the Trusted system chassis, and fasten the fixing device firmly. Ensure stable and reliable contact with the backplane bus to avoid signal fluctuation and monitoring abnormality caused by equipment vibration.
4. Standard Wiring Connection: Connect 24VDC safety power cables, system bus communication cables and on-site speed sensor signal cables in strict accordance with safety wiring specifications. Distinguish independent channel interfaces to prevent wrong wiring, short circuit and signal crosstalk faults, ensuring standard and safe wiring of safety monitoring loops.
5. Safety Parameter Configuration: Log in to the dedicated Trusted system configuration software after correct wiring. Set speed monitoring range, overspeed/underspeed threshold, interlock delay logic and fault diagnosis parameters according to on-site equipment safety design requirements, then download and save all configuration data.
6. Function Debugging & Safety Verification: Start the system self-diagnosis program to check module TMR redundant operation status, communication stability and speed signal acquisition accuracy. Simulate speed abnormal signals and circuit faults to verify the reliability of safety interlock action and fault alarm response.
7. Online Operation & Daily Maintenance: Put the module into long-term online safety monitoring operation after passing debugging and safety verification. Regularly check module operating temperature, indicator status and wiring tightness, clean dust periodically, back up safety configuration and fault log data, and inspect speed monitoring accuracy to ensure stable and reliable operation of equipment safety protection system.
Product Application Fields
1. Thermal & Gas Power Industry: Widely used in SIS safety systems of power plants, responsible for speed monitoring and overspeed protection of core equipment such as steam turbines, generators, fans and water pump units. It ensures safe and stable operation of power generation rotating machinery and avoids unit failure caused by speed abnormality.
2. Petroleum & Natural Gas Industry: Applied in safety monitoring systems of oil and gas fields, offshore platforms and gas transmission stations. It monitors the operating speed of key rotating equipment such as compressors and turbo machinery, providing reliable safety interlock protection for oil and gas production processes.
3. Chemical & Petrochemical Industry: Deployed in safety instrumented systems of refining and fine chemical production devices. It performs real-time speed monitoring and abnormal protection for process rotating equipment, ensuring the safe and continuous operation of high-risk chemical production links.
4. Metallurgy & Energy Heavy Industry: Suitable for speed safety monitoring of high-load rotating equipment such as steel rolling mills, industrial fans and kiln transmission equipment. Its SIL3 high safety performance adapts to harsh and high-risk industrial production environments.
5. Industrial Safety Instrumented System: As a core TMR safety speed monitoring module of ICS TRIPLEX Trusted SIS system, it is widely used in various high-risk process industries, providing accurate speed monitoring and reliable safety interlock guarantee for key industrial rotating machinery.
