Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ICS Triplex / Rockwell Automation |
| Model | T9451 |
| Part Number | 9451-0001 |
| Product Type | Digital Output Module |
| Controller Platform | AADvance Safety Controller |
| Output Type | 24 VDC Digital Output |
| Output Channels | 8 channels |
| Channel Type | Isolated output channels |
| Output Voltage Range | 18–32 VDC |
| Maximum Output Current | Up to 1 A per channel |
| Nominal Output Voltage | 24 VDC |
| Power Consumption | Approx. 3 W |
| Output Monitoring | Voltage and load current monitoring |
| Protection Functions | Reverse current protection, short circuit detection, open circuit monitoring |
| Redundancy Support | Dual redundant field power support |
| Safety Certification | Designed for IEC 61508 safety applications |
| Installation | AADvance I/O base unit |
| Application | Safety instrumented systems and critical control |
Product Introduction

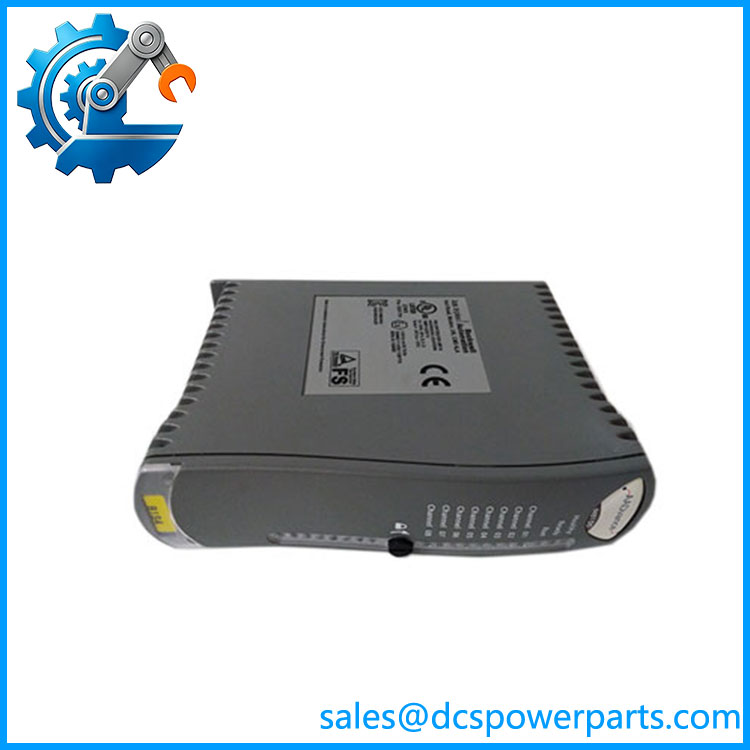

ICS Triplex T9451 Overview
The ICS Triplex T9451 9451-0001 is an 8-channel 24 VDC digital output module designed for the AADvance safety controller platform. It provides the interface between controller logic and field-level devices, allowing safety applications to control final elements such as shutdown valves, solenoids, alarms, and process interlocks.
The ICS Triplex T9451 is designed for applications where output integrity and fault detection are important. Each output channel includes monitoring functions that supervise output voltage, load current, and field wiring conditions. These diagnostic features help identify problems such as open circuits, wiring faults, or abnormal load conditions before they affect plant operation.
The ICS Triplex T9451 digital output module supports up to eight field output devices and provides channel-level protection functions. The module incorporates reverse current protection and short circuit monitoring to help protect both the I/O hardware and connected field equipment.
The T9451 9451-0001 is commonly installed in safety instrumented systems used in demanding industries. Typical applications include emergency shutdown systems, turbine protection systems, chemical processing plants, oil and gas production facilities, and power generation equipment.
The ICS Triplex operates as part of a complete AADvance controller architecture. It is not a standalone output device; correct operation depends on the controller processor module, I/O base unit, termination assembly, application configuration, and safety logic programming.
When replacing an ICS Triplex , engineers should verify the existing AADvance hardware configuration, module firmware compatibility, termination assembly type, output wiring, and safety application settings. A replacement module should be validated before returning safety functions to service.
T9451
Application Scenarios & Field Considerations
Engineering Pain Point
Typical issues involving digital output modules include:
- Valve command failures
- Solenoid activation problems
- Safety output alarms
- Open circuit detection
- Field device response failures
The may be involved, but engineers should also inspect:
- Field power supply
- Termination assembly
- Output wiring
- Connected actuators
- Application logic configuration
Recommended troubleshooting steps:
- Check module diagnostic LEDs
- Review AADvance Workbench diagnostics
- Verify output channel status
- Measure field voltage
- Inspect wiring continuity
- Confirm safety logic commands
The ICS Triplex provides output switching and diagnostics, but reliable safety operation depends on the complete SIS architecture.
Typical Applications
Emergency Shutdown Systems (ESD)
Used for:
- Shutdown valve control
- Emergency isolation functions
- Process trip actions
Oil & Gas Facilities
Applied for:
- Compressor protection
- Pipeline safety systems
- Burner shutdown control
Power Generation
Used for:
- Turbine protection logic
- Generator auxiliary systems
- Safety interlocks
Industrial Process Plants
Applied for:
- Solenoid control
- Alarm outputs
- Safety-related field commands
Technical Pitfalls to Avoid
1. Verify Termination Assembly Compatibility
Check:
- T9851 digital output termination assembly
- Wiring arrangement
- Channel assignment
The I/O module must match the installed termination hardware.
2. Confirm Safety Configuration
Verify:
- AADvance application database
- Output voting configuration
- Safety logic assignments
- Module replacement settings
3. Inspect Field Devices
Check:
- Solenoid coil resistance
- Valve actuator condition
- External power supply
- Field wiring insulation
4. Preserve Existing Parameters
Before replacement:
- Record module configuration
- Backup controller application
- Document channel assignments
- Verify safety validation records
