Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ICS Triplex / Rockwell Automation |
| Model | T8403CX |
| Product Type | Trusted TMR Digital Input Module |
| Safety Platform | Trusted TMR Safety System |
| Input Type | Digital Input |
| Number of Channels | 40 channels |
| Input Voltage | 24VDC |
| Input Range | 0–32VDC typical operating range |
| Redundancy Architecture | Triple Modular Redundancy (TMR) |
| Field Interface | 40-channel digital field inputs |
| Power Supply | 20–32VDC |
| Power Consumption | Approx. 20W maximum |
| Safety Level Application | SIL safety systems (application dependent) |
| Mounting | Trusted controller chassis |
| Operating Temperature | -40°C to +70°C typical |
| Environmental Coating | CX conformal coated version |
| Replacement Model | T8403C |
Product Introduction
ICS Triplex T8403CX Overview
The ICS Triplex T8403CX is a Trusted TMR 24VDC 40-channel digital input module designed for safety-critical industrial control systems. It receives discrete field signals from switches, sensors, shutdown devices, and interlock circuits, then processes these inputs through the Trusted Triple Modular Redundancy architecture.
The ICS Triplex T8403CX is typically maintained in existing safety instrumented systems where replacing the complete safety platform is not practical. The conformal-coated CX version is intended for installations requiring additional environmental protection. Before replacement, verify chassis compatibility, firmware revision, application configuration, and safety validation requirements.

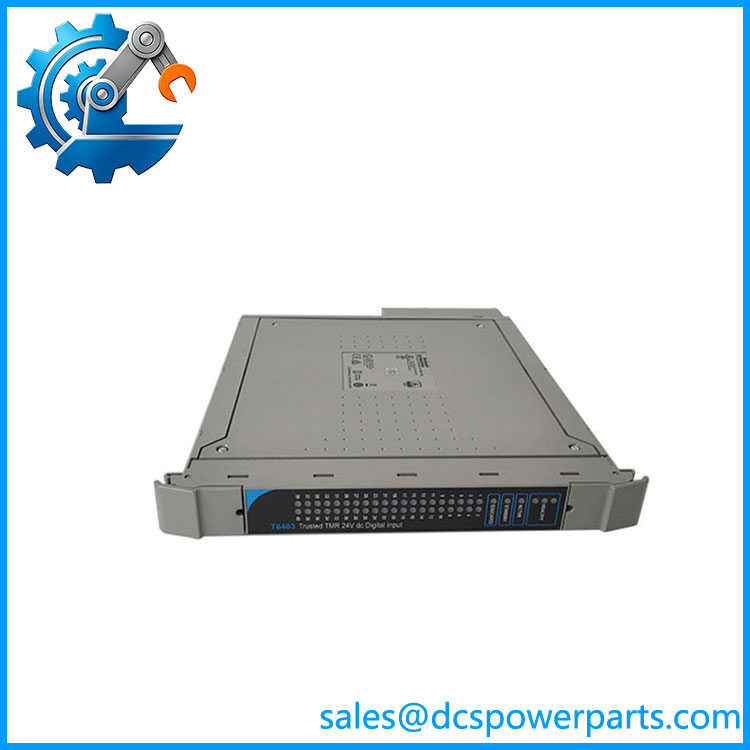

T8403CX
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A shutdown system failure in a refinery or power station is rarely caused by the obvious component. A digital input module may appear to be a simple signal collection device, but in a safety system it sits directly between field devices and the logic solver. Incorrect channel mapping, degraded field wiring, or incompatible firmware can create unnecessary trips or, worse, prevent a valid shutdown signal from being recognized.
The ICS Triplex T8403CX is normally selected for maintaining installed Trusted safety systems where existing I/O architecture, safety certification records, and application logic must remain unchanged.
Typical Applications
- Oil & Gas Facilities – Emergency shutdown (ESD) systems monitoring pressure switches, valve feedback, and trip signals.
- Power Generation – Turbine protection systems, boiler safety interlocks, and auxiliary equipment shutdown circuits.
- Chemical Processing – Safety instrumented functions for critical process protection.
- Offshore Platforms – Fire and gas systems, emergency devices, and hazardous area monitoring.
Technical Pitfalls to Avoid
- Firmware and System Revision Compatibility
Do not assume a replacement T8403CX will operate identically without checking Trusted system firmware compatibility. Confirm the processor, chassis, and I/O module revisions before installation.
- Safety Loop Documentation Errors
Digital inputs in SIS applications are normally tied to certified safety functions. Verify channel assignments, voting logic, and field termination details before reconnecting wiring.
- Conformal Coating Inspection
CX variants are selected for harsher environments. Inspect the module condition carefully, especially when used in areas with humidity, corrosive gases, or temperature cycling.
Field note: Before removing a Trusted I/O module, record the chassis slot, LED status, firmware information, and connected field terminal mapping. Safety system recovery depends heavily on accurate records.
Related Products
- T8403C
Direct successor/replacement category for the . It provides the same 24VDC 40-channel Trusted digital input function without the CX conformal coating designation. - T8403
Earlier Trusted Series 24VDC 40-channel digital input module. Used in legacy Trusted systems with different revision requirements. - T8402C
Trusted digital input module with 60-channel capability. Selected when higher input density is required. - T8431C
Trusted analog input module supporting 4–20mA signals. Used for process measurements rather than discrete field contacts. - T8451C
Trusted 24VDC digital output module. Provides safety output control for actuators, valves, and shutdown devices. - T8110C
Trusted processor module used as the main control processor within the Trusted TMR safety architecture. - T8310
Trusted expander processor module used for system expansion and distributed chassis configurations. - T8151C
Trusted communication interface module used for system communications and external integration. - Trusted TMR Safety System
The overall safety control platform where provides digital input acquisition for critical shutdown and protection functions.
