Description
Product Features
The T8431 is a high-density, high-precision TMR (Triple Modular Redundant) analog input module developed by ICS TRIPLEX (Rockwell Automation), designed for the Trusted series Safety Instrumented System (SIS). As a core signal acquisition unit for safety-critical industrial applications, it delivers reliable multi-channel analog signal collection, accurate data conversion and comprehensive fault diagnosis. With strict SIL3 safety certification and 2oo3 voting fault-tolerant architecture, the module ensures exceptional operational stability and safety integrity, supporting high-risk process monitoring and interlock protection in petrochemical, power and energy industries.
1. High-density 40-channel Analog Acquisition: Integrates 40 independent analog input channels in a single module, supporting centralized collection of massive field voltage and current signals. The high-density design optimizes cabinet layout, saves installation space and reduces overall system construction and maintenance costs.
2. 2oo3 TMR Fault-tolerant Architecture: Adopts triple modular redundant signal processing and voting logic, completely eliminating single-point hardware and signal failure risks. It effectively avoids false alarms and missed detections, ensuring ultra-high reliability and availability of safety loop operation.
3. SIL3 Safety Integrity Certification: Fully compliant with IEC 61508 SIL3 international safety standards and TÜV certification, meeting the highest safety requirements for process industry safety instrumented systems. It is applicable to critical safety scenarios such as ESD emergency shutdown and FGS fire and gas protection.
4. High-precision Signal Conversion Performance: Equipped with 16-bit high-resolution sampling chips, featuring ultra-low calibration error and excellent linearity. It supports accurate measurement of 0–22mA current and 0–6VDC voltage signals, achieving precise acquisition of temperature, pressure, flow and liquid level parameters.
5. Strong Electrical Isolation & Anti-interference: Built-in 2500V reinforced galvanic isolation between channels and backplane, effectively isolating on-site surge voltage, electromagnetic interference and signal crosstalk. It maintains stable signal output without distortion in harsh industrial environments.
6. Full-range Intelligent Self-diagnosis: Supports automatic detection of wire breakage, short circuit, signal overload, channel drift and internal circuit faults. It uploads real-time fault codes and alarm logs to the upper system, enabling rapid fault location and predictive maintenance.
7. Online Hot-swap Support: Adopts SmartSlot hot-replacement technology, allowing non-stop online module replacement. It completes maintenance and upgrade without interrupting system operation and safety loop control, minimizing industrial production downtime.
8. High-speed SOE Event Recording: Integrated 1ms high-precision timestamp sequence-of-event recording function, accurately capturing signal change time and sequence. It provides complete data traceability for post-fault analysis and system operation optimization.

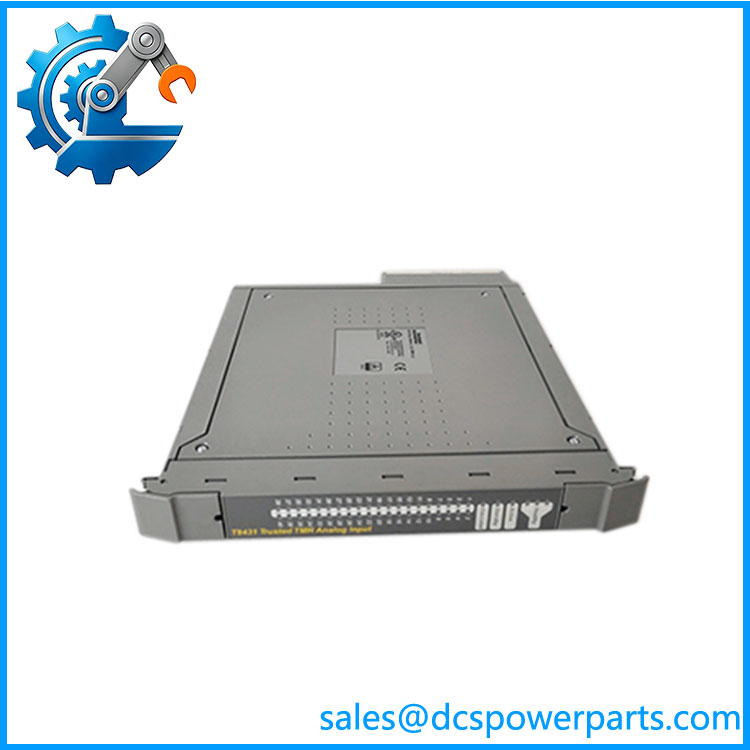

T8431
Product Parameters
|
Item
|
Specification
|
|
Part Number
|
T8431
|
|
Brand
|
ICS TRIPLEX (Rockwell Automation)
|
|
Product Type
|
TMR Safety Analog Input Module
|
|
Applicable System
|
Trusted Series Safety Instrumented System (SIS)
|
|
Safety Level
|
SIL3 Certified (IEC 61508 / TÜV Certified)
|
|
System Architecture
|
2oo3 Triple Modular Redundant (TMR)
|
|
Channel Quantity
|
40 Independent Isolated Analog Input Channels
|
|
Input Signal Range
|
0–22mA DC Current / 0–6VDC Voltage
|
|
Sampling Resolution
|
16-bit High Resolution (3.9µA Step Accuracy)
|
|
Calibration Accuracy
|
±0.03% High Precision Calibration
|
|
Safety Measurement Accuracy
|
±1% Full Scale
|
|
Isolation Voltage
|
2500V Reinforced Galvanic Isolation
|
|
SOE Recording Resolution
|
1ms High-precision Timestamp Recording
|
|
Signal Response Time
|
≤10ms Fast Response
|
|
Power Supply Range
|
20.4VDC ~ 28.8VDC (Typical 24VDC)
|
|
Power Consumption
|
15~18W Rated Power
|
|
Hot-swap Function
|
Support Online SmartSlot Hot-replacement
|
|
Diagnosis Function
|
Open circuit, short circuit, signal overload, drift and internal fault self-diagnosis
|
|
Operating Temperature Range
|
0℃ ~ +60℃
|
|
Storage Temperature Range
|
-25℃ ~ +70℃
|
|
Working Humidity
|
10%~95% Non-condensing
|
|
Installation Method
|
Standard Chassis Rack Slot Mounting
|
|
Core Functions
|
Field analog signal high-precision acquisition, TMR safety voting processing, SOE event recording, full fault diagnosis, safety data transmission
|
Product Usage Method
1. Pre-installation Inspection: Inspect the T8431 module appearance, terminal blocks, circuit boards and indicator lights to confirm no damage, oxidation or loose components. Verify compatibility with Trusted SIS system chassis and field analog sensors to meet safety signal acquisition specifications.
2. Static Protection Operation: Complete installation and wiring in a dry, dust-free and static-proof industrial environment. Wear professional anti-static gloves and wrist straps to prevent static discharge from damaging internal TMR redundant circuits and high-resolution sampling chips.
3. Module Installation & Fixation: Insert the T8431 module smoothly into the designated slot of the Trusted system chassis, and fasten the fixing structure firmly. Ensure stable and reliable contact with the backplane bus to avoid signal fluctuation and communication abnormality caused by equipment vibration.
4. Standard Wiring Connection: Connect 24VDC safety power cables, system bus communication cables and field analog sensor signal cables in strict accordance with safety wiring standards. Distinguish current and voltage signal channels to prevent wrong wiring, short circuit and signal crosstalk faults.
5. Safety Parameter Configuration: Log in to the dedicated Trusted system configuration software after correct wiring. Set signal type, sampling range, safety threshold, SOE recording rules and fault diagnosis parameters according to on-site SIS safety design requirements, then download and save all configuration data.
6. Function Debugging & Safety Verification: Start the system self-diagnosis program to check module TMR redundant operation status, communication stability and analog acquisition accuracy. Simulate field signal fluctuation and circuit faults to verify fault alarm response and safety voting reliability.
7. Online Operation & Daily Maintenance: Put the module into long-term online safety monitoring after passing debugging and verification. Regularly check module operating temperature, indicator status and wiring tightness, clean dust periodically, back up safety configuration files, and calibrate signal acquisition accuracy to ensure stable operation of the industrial safety instrumented system.
Product Application Fields
1. Petroleum & Natural Gas Industry: Widely used in SIS safety systems of oil and gas fields, offshore platforms and gas transmission stations. It collects analog signals of pressure, temperature and flow of oil and gas production equipment, supporting ESD emergency shutdown and FGS safety linkage protection.
2. Chemical & Petrochemical Industry: Deployed in safety instrumented systems of refining, chemical fertilizer and fine chemical production devices. It monitors key process parameters in real time, provides accurate data for safety interlock logic judgment, and ensures safe and stable operation of high-risk chemical production processes.
3. Thermal & Gas Power Industry: Applied in power plant unit safety monitoring systems. It collects operating analog data of steam turbines, generators and auxiliary equipment, assists in equipment safety early warning and interlock protection, and guarantees continuous and safe operation of power generation units.
4. Metallurgy & Building Materials Industry: Suitable for safety monitoring of high-load industrial equipment such as steel smelting furnaces and cement kilns. Its high anti-interference performance and SIL3 safety level adapt to harsh dust and high-temperature industrial environments.
5. Industrial Safety Instrumented System: As a core high-density TMR analog input module of ICS TRIPLEX Trusted SIS system, it is widely used in various high-risk process industries, providing high-precision and high-reliability signal acquisition guarantee for industrial safety protection systems.
