Description
Product Features
The T8403 is a high-density, safety-certified TMR (Triple Modular Redundant) digital input module developed by ICS Triplex (Rockwell Automation), serving as a core signal acquisition component for Trusted safety instrumented systems. Designed for high-reliability safety monitoring and discrete signal collection in high-risk industrial scenarios, it supports 24VDC field digital signal acquisition with comprehensive fault diagnosis and sequence-of-event (SOE) recording functions. Compliant with strict IEC 61508 SIL3 safety standards, it delivers stable, high-availability signal collection for ESD, FGS and process safety interlock systems, ensuring the integrity and safety of industrial production operations.
1. High-density 40-channel Digital Acquisition：Integrates 40 independent digital input channels within a single module, realizing centralized collection of massive field discrete signals. The high-density slot-saving design optimizes cabinet layout, reduces system construction costs, and simplifies overall safety I/O configuration and wiring management.
2. Industrial-grade TMR Triple Redundant Architecture：Adopts professional triple modular redundant processing design, effectively eliminating single-point hardware and signal failure risks. It minimizes false trips and missed trips, providing ultra-high operational reliability and availability for critical safety instrumented systems.
3. SIL3 Full Safety Certification：Fully certified to IEC 61508 SIL3 safety integrity level, meeting the highest safety requirements for process industry safety systems. It supports safety-related control and monitoring of high-risk production links, compliant with international process safety specification standards.
4. High-precision SOE Sequence Recording：Built-in high-resolution 1ms timestamp sequence-of-event recording function, accurately capturing the action sequence and time of field switching signals. It provides reliable data traceability for post-fault analysis, equipment troubleshooting and production accident investigation.
5. Reinforced Electrical Isolation & Adaptability：Equipped with 2500Vrms reinforced channel isolation design, effectively isolating on-site surge interference and crosstalk. It supports both sink and source 24VDC signal input, with configurable threshold parameters to adapt to diverse field sensor and switching device types.
6. Comprehensive Intelligent Self-diagnosis：Integrates full-range fault diagnosis functions including wire breakage, short circuit, signal overload, channel abnormality and internal circuit failure. It uploads real-time fault codes and status alarms to the upper system for rapid fault location and processing.
7. Hot-swap & Stable Industrial Operation：Supports online hot-swap replacement without system shutdown or safety loop interruption, greatly reducing system maintenance downtime. With excellent EMC anti-interference performance and wide temperature adaptability, it supports 24/7 stable operation in harsh industrial environments.

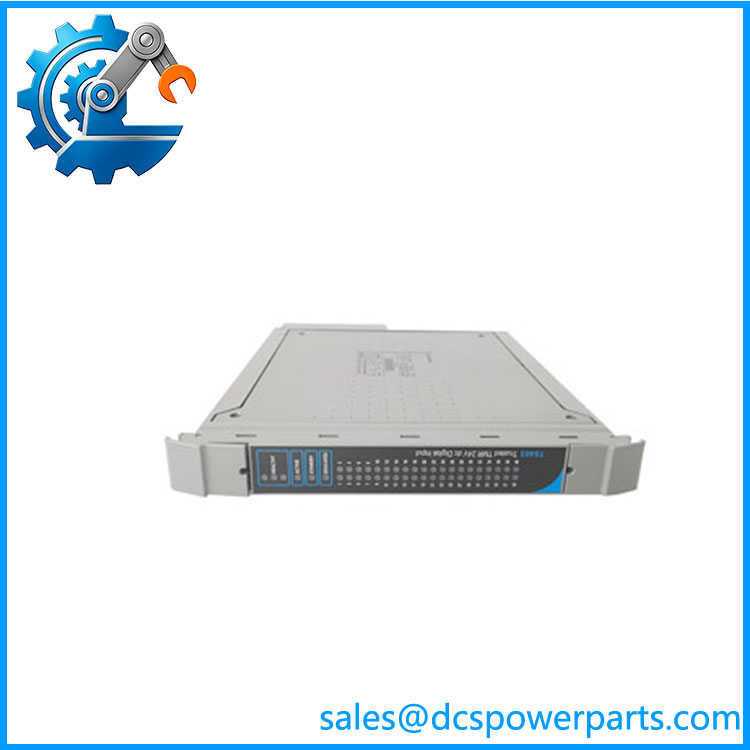

T8403
Product Parameters
|
Item
|
Specification
|
|
Part Number
|
T8403
|
|
Brand
|
ICS Triplex / Rockwell Automation
|
|
Product Type
|
40-Channel TMR Digital Input Module
|
|
Applicable System
|
Trusted Series Safety Instrumented System (SIS)
|
|
Channel Configuration
|
40 Independent Isolated Digital Input Channels
|
|
Safety Level
|
SIL3 Certified (IEC 61508)
|
|
System Supply Voltage
|
20VDC ~ 32VDC (Typical 24VDC)
|
|
Field Input Type
|
24VDC Sink / Source Switchable Input
|
|
Input Voltage Range
|
10VDC ~ 30VDC Effective Range, -6VDC ~ +36VDC Measurement Range
|
|
Isolation Voltage
|
2500Vrms Reinforced Galvanic Isolation
|
|
SOE Recording Resolution
|
1ms High-precision Timestamp Recording
|
|
Signal Response Time
|
Typical 2ms
|
|
Power Consumption
|
Typical 6W
|
|
Hot-swap Function
|
Support Online Hot-swap Replacement
|
|
Operating Temperature Range
|
0℃ ~ +60℃
|
|
Storage Temperature Range
|
-25℃ ~ +70℃
|
|
Working Humidity
|
10%~95% Non-condensing
|
|
Architecture
|
TMR Triple Modular Redundant Safety Architecture
|
|
Core Function
|
Field digital signal acquisition, safety signal processing, SOE sequence recording, channel fault diagnosis, safety system data transmission
|
Product Usage Method
1. Pre-installation Inspection: Inspect the T8403 module appearance, terminal interfaces, circuit boards and status indicators to confirm no damage, aging or loose components. Verify compatibility with Trusted SIS system and on-site 24VDC field switching sensors to meet safety signal acquisition specifications.
2. Static Protection Operation: Complete installation and wiring in a dry, dust-free and static-proof industrial environment. Wear professional anti-static gloves and wrist straps to prevent static discharge from damaging internal TMR redundant circuits and high-precision processing chips of the module.
3. Module Installation & Fixation: Insert the T8403 module smoothly into the designated chassis slot of the Trusted safety system, and fasten the fixing structure. Ensure stable contact with the backplane bus to avoid signal fluctuation and communication abnormality caused by equipment vibration.
4. Standard Wiring Connection: Connect 24VDC system power cables, field digital signal cables and system communication cables in strict accordance with safety wiring specifications. Distinguish sink/source signal types and independent channel interfaces to prevent wrong wiring, short circuit and signal crosstalk faults.
5. Safety Parameter Configuration: Log in to the dedicated safety configuration software after correct wiring. Set channel signal mode, threshold parameters, SOE recording rules and fault diagnosis logic according to on-site SIS safety design requirements, then download and save all configuration data.
6. Function Debugging & Verification: Start the system self-diagnosis program to check module communication status, TMR redundant operation status and channel signal acquisition accuracy. Simulate field signal switching and fault conditions to verify SOE recording accuracy and fault alarm response reliability.
7. Online Operation & Daily Maintenance: Put the module into long-term online safety monitoring after passing debugging and safety verification. Regularly check module operating temperature, indicator status and wiring tightness, clean dust periodically, back up safety configuration files, and inspect channel operation status to ensure stable and reliable operation of the industrial safety instrumented system.
Product Application Fields
1. Oil & Gas Industry: Widely used in SIS safety systems for offshore platforms, oil and gas gathering and transportation stations. It collects discrete signals of valves, switches and emergency equipment, supporting ESD emergency shutdown and FGS fire and gas safety linkage protection.
2. Petrochemical & Chemical Industry: Applied in safety instrumented systems of refining, chemical fertilizer and fine chemical production devices. It monitors key equipment switching status and process discrete signals in real time, ensuring safe and stable operation of high-risk chemical production processes.
3. Power Generation Industry: Suitable for safety monitoring systems of thermal power, gas power and new energy power plants. It collects auxiliary equipment switching signals and unit safety status signals, providing reliable data support for power plant safety interlock and fault early warning.
4. Metallurgy & Energy Heavy Industry: Used in safety protection systems of steel smelting and energy processing equipment. Its high-reliability TMR redundant design and SIL3 safety performance meet the strict safety monitoring requirements of high-load and high-risk industrial production scenarios.
5. Industrial Safety Instrumented System: As a core high-density TMR digital input module for Trusted SIS systems, it is widely deployed in various high-risk process industries, providing accurate signal acquisition, fault recording and safety guarantee for industrial safety interlock systems, reducing production safety risks.
