Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | T8830 |
| Manufacturer | ICS Triplex / Rockwell Automation |
| Product Type | Trusted 40 Channel Analog Input FTA |
| System Platform | Trusted TMR Safety System |
| Compatible Input Module | T8431 Trusted Analog Input Module |
| Channel Capacity | 40 analog input channels |
| Signal Type | 2-wire analog field devices |
| Typical Signal | 4-20 mA current loops |
| Field Power | 24 VDC |
| Loop Protection | Individual channel fuse protection |
| Resistor Conditioning | 250 Ω input conversion resistor |
| Mounting | DIN rail installation |
| Connection Interface | Field terminal blocks and SmartSlot cable interface |
| Diagnostics | LED indication for field power status |
| Application | SIS process measurement input termination |
Application Scenarios & Pain Points
Safety system failures often begin at the field connection level. A transmitter may still produce a valid signal, yet poor termination or unstable loop power can create inaccurate process readings or unnecessary shutdown alarms.
Typical applications:
- Oil & Gas Processing: Used for pressure, flow, level, and temperature transmitter connections in emergency shutdown and safety monitoring systems.
- Chemical Plants: Provides organized termination for analog process measurements where incorrect signals may affect protective actions.
- Power Generation: Applied in turbine and auxiliary safety systems requiring reliable analog feedback from field instruments.
- Refineries: Supports SIS cabinets where multiple 4-20 mA transmitters must be isolated and monitored.
Field note: A refinery unit reported intermittent analog input alarms across several safety channels. The transmitters tested correctly, but loop diagnostics showed inconsistent field termination performance. Replacing the T8830 assembly and checking SmartSlot connections restored stable analog readings.

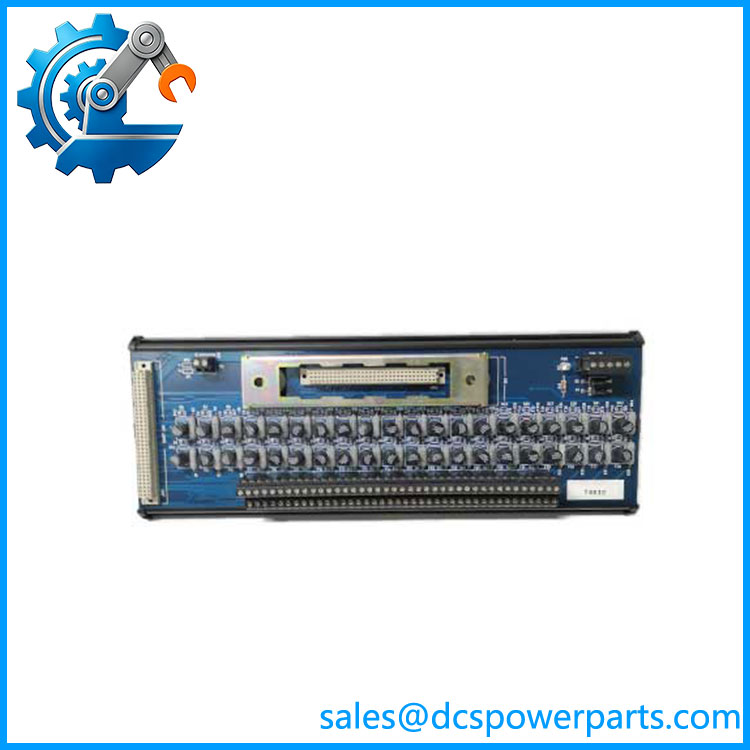

T8830
Related Products
- ICS Triplex T8431 — Trusted TMR analog input module paired with the T8830. The T8431 performs signal acquisition while the T8830 provides field termination.
- ICS Triplex T8830C — Updated T8830 family variant. Used where system documentation specifies the C revision hardware.
- ICS Triplex T8850 — 40 channel analog/digital output FTA. Designed for output field device connections rather than transmitter inputs.
- ICS Triplex T8451 — Trusted digital output module typically paired with compatible output termination assemblies.
- ICS Triplex T8461 — Trusted digital output module for safety-related discrete control applications.
- ICS Triplex T8310 — Trusted expander processor module used in expanded safety system architectures.
- ICS Triplex T8151B — Trusted communication interface module for external system communication.
- ICS Triplex T8231 — Trusted power supply module supporting Trusted system cabinet operation.
The Engineer’s Guide: Field Pitfalls to Avoid
⚠️ Mixing T8830 With the Wrong Input Module
The is designed around specific Trusted analog input hardware.
How to avoid: Confirm the connected I/O module model, especially the T8431, before replacement.
⚠️ Incorrect Loop Wiring During Replacement
A single reversed or misplaced transmitter pair can create false process readings.
How to avoid: Label every field wire before removal and compare against cabinet drawings.
⚠️ Ignoring Channel Fuse Status
A blown field fuse can look like a failed transmitter or controller channel.
How to avoid: Check channel fuse condition and LED indicators before replacing larger system components.
Frequently Asked Questions (FAQ)
What is the main function of the ICS Triplex ?
The is a 40-channel analog input Field Termination Assembly that connects field analog devices with Trusted TMR analog input modules such as the T8431.
Is the a safety controller module?
No. The does not execute safety logic. It provides field termination, loop power distribution, and signal conditioning between field devices and the Trusted input module.
How many field signals can the handle?
The unit supports up to 40 analog input channels, typically from 2-wire field transmitters.
Can the replace a T8850?
No. The is designed for analog input applications, while the T8850 is used for output termination functions. The field signal direction is different.
What should be checked before purchasing a ?
Recommended checks:
- Existing Trusted module model
- T8431 compatibility
- SmartSlot cable type
- Field transmitter wiring
- 24 VDC loop supply arrangement
- Channel assignments
Why do analog values become unstable after replacing a ?
Possible causes include:
- Incorrect terminal wiring
- Wrong channel configuration
- Damaged SmartSlot cable
- Missing loop power
- Incorrect transmitter scaling
Is a refurbished suitable for SIS applications?
A tested refurbished unit can be suitable when it passes terminal inspection, channel continuity checks, power verification, and compatibility testing with the installed Trusted TMR system.
