Description
Product Overview

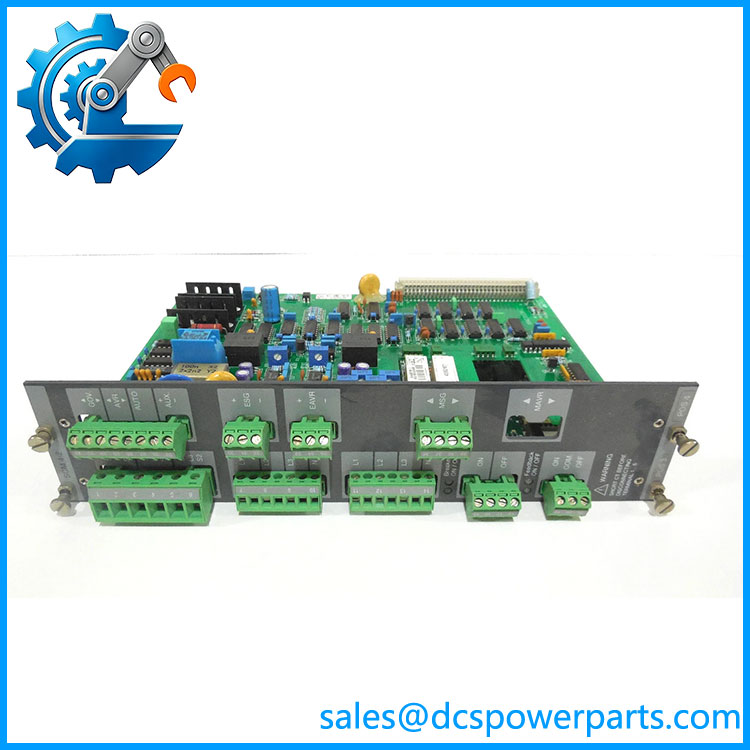

DEIF SCM-2 1044220110E is a multifunction synchronizing and measuring module designed for the DEIF Delomatic (DM) power management and generator control system platform. It is a key electronic module used in marine and industrial generator applications, providing electrical measurement, synchronization control, and monitoring functions for diesel generator sets, switchboards, and power distribution systems. The SCM-2 1044220110E combines measurement processing and control logic in a compact module, enabling accurate monitoring of generator voltage, busbar voltage, current, frequency, and phase-related parameters.
DEIF SCM-2 1044220110E functions as a measuring and synchronizing unit within the Delomatic multi-function control architecture. It receives electrical signals from generators and switchgear systems, processes three-phase electrical measurements, and provides essential information for automatic synchronization, load sharing, and generator management functions. The module integrates a multi-transducer unit and generator breaker ON/OFF interface functions, making it suitable for complex power management systems requiring precise electrical supervision.
DEIF SCM-2 1044220110E is widely used in marine vessels, offshore platforms, and industrial power generation installations where stable and reliable generator operation is critical. Through accurate measurement and synchronization functions, SCM-2 1044220110E helps improve power system availability, prevent synchronization failures, and support automatic operation of generator systems. Its modular design simplifies integration into existing Delomatic control solutions and provides a reliable replacement component for long-service generator automation systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | SCM-2 1044220110E |
| Manufacturer | DEIF A/S |
| Product Type | Synchronizing and Measuring Module |
| System Platform | DEIF Delomatic Multi-Function System |
| Main Function | Generator measurement, synchronization, and monitoring |
| Module Type | SCM-2 / SCM-B |
| Application | Marine and industrial generator control |
| Measurement Inputs | Three-phase generator voltage, busbar voltage, generator current |
| Voltage Measurement Range | Up to approximately 660 VAC |
| Frequency Range | 40–70 Hz |
| Current Measurement | Three-phase generator current input |
| Power Supply | Delomatic system supply |
| Communication Interface | Delomatic internal system communication |
| Control Functions | Synchronization monitoring and breaker interface |
| Installation Type | Control cabinet / generator switchboard mounting |
| Input Protection | Current transformer input protection required |
| Operating Environment | Industrial and marine electrical systems |
| Mounting Method | Panel mounting |
| Weight | Approx. 1–2 kg (configuration dependent) |
SCM-2
Main Features and Advantages
DEIF SCM-2 1044220110E provides a specialized solution for generator synchronization and electrical measurement applications where reliability and accuracy are essential. Designed for the Delomatic control platform, SCM-2 1044220110E integrates multiple measurement functions into one compact module, reducing system complexity and improving generator control performance.
Advanced electrical measurement capability is one of the primary advantages of DEIF SCM-2 1044220110E. The module can monitor important generator and power distribution parameters, including three-phase voltage, current, frequency, and phase-related conditions. Accurate measurement data allows the control system to make reliable decisions during generator startup, synchronization, and load management operations.
The synchronization function of SCM-2 1044220110E is especially important in applications involving multiple generators operating in parallel. The module evaluates generator and busbar conditions to ensure proper synchronization before breaker closing. This helps prevent electrical stress, equipment damage, and unstable power system operation.
DEIF SCM-2 1044220110E features a modular architecture that allows integration into Delomatic generator management systems. By using dedicated measurement and synchronization hardware, the system achieves faster response times and improved reliability compared with solutions based only on general-purpose controllers.
The multi-transducer capability of SCM-2 1044220110E simplifies switchboard design by combining several measurement functions into a single module. This reduces the need for multiple independent measuring devices and decreases wiring complexity inside generator control panels.
Another advantage of DEIF SCM-2 1044220110E is its suitability for demanding marine environments. Generator automation systems on ships and offshore platforms require continuous operation under vibration, temperature variation, and electrical interference conditions. The module is designed for reliable service in these challenging environments.
The compact design and proven Delomatic compatibility of SCM-2 1044220110E also make it valuable for maintenance and retrofit projects. Operators can replace aging synchronization modules while maintaining existing generator control system functionality.
With accurate measurement, reliable synchronization control, and strong compatibility with DEIF generator automation platforms, SCM-2 1044220110E provides an effective solution for modern power management applications.
Applications
DEIF SCM-2 1044220110E is mainly used in generator control and power management systems requiring accurate electrical measurement and synchronization functions. In marine applications, SCM-2 1044220110E is commonly installed in ship generator switchboards to manage synchronization between diesel generators and the main electrical busbar.
In offshore platforms and floating production units, DEIF SCM-2 1044220110E supports reliable operation of distributed power generation systems. The module helps monitor generator conditions and ensures safe connection of generators operating in parallel.
Industrial power plants use SCM-2 1044220110E for generator automation systems where automatic synchronization, load management, and electrical monitoring are required. The module can support standby generator systems, auxiliary power systems, and distributed energy installations.
In shipbuilding and marine engineering projects, DEIF SCM-2 1044220110E is applied in vessels requiring dependable power management, including cargo ships, offshore support vessels, ferries, and specialized marine equipment.
The module is also suitable for retrofit projects involving existing DEIF Delomatic installations. Replacing damaged or obsolete synchronization modules with compatible SCM-2 1044220110E units helps extend equipment service life and maintain system reliability.
Typical application areas include:
- Marine generator control systems
- Offshore power systems
- Ship electrical switchboards
- Diesel generator synchronization
- Industrial power generation
- Emergency standby generators
- Parallel generator systems
- Energy management systems
- Delomatic automation platforms
