Description

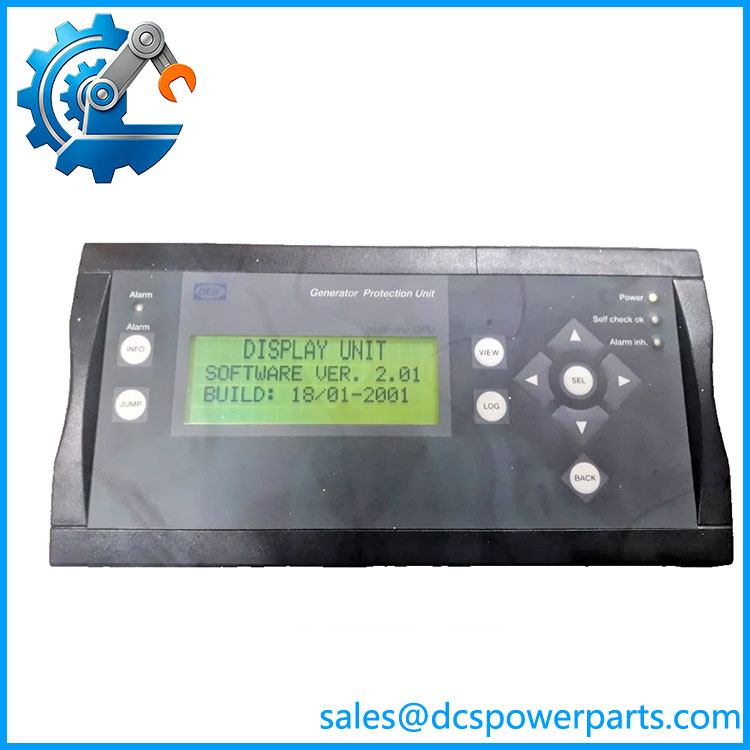

DEIF GPU/2/GS | Generator Protection Unit | Multi-line 2 Genset Protection
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | DEIF |
| Model | GPU/2/GS |
| Product Family | GPU-2 |
| Product Type | Generator Protection Unit |
| Control Platform | DEIF Multi-line 2 |
| Primary Function | Generator protection and supervision |
| Application | Generator sets / power-generation systems |
| Protection Functions | Configuration-dependent |
| Measurement Functions | Generator electrical measurements |
| Synchronization | Configuration-dependent |
| Analog I/O | Option-dependent |
| Relay I/O | Option-dependent |
| Communication | Option-dependent |
| Software Family | Multi-line 2 GPU |
| Lifecycle | Phased out / end of life |
DEIF’s own documentation confirms that GPU-2 is part of the Multi-line 2 product family, alongside GPC-2 and PPU-2. DEIF’s software records also show GPU-2-specific application versions, including the later 2.42.x software series.
The exact /GS option configuration should be checked against the nameplate and original option sheet. This is important because GPU-2 hardware was configured with different functional options, so generic specifications from unrelated GPU/2 listings should not automatically be applied to every unit.
Product Introduction
The DEIF GPU/2/GS is a GPU-2 Generator Protection Unit from DEIF’s Multi-line 2 generation. It is designed for electrical protection, generator measurement, monitoring, alarm handling, and associated generator-control functions in genset and power-generation installations. DEIF’s own documentation explicitly places GPU-2 within the Multi-line 2 platform.
This is legacy generator-control hardware rather than a general-purpose PLC. The installed protection functions, I/O configuration, communication options, and software version need to match the existing generator controller configuration. DEIF currently identifies as phased out, with no direct replacement listed on its product page.
GPU/2/GS
Application Scenarios & Field Pitfalls — Engineer’s Perspective
Engineering Pain Point
A failure can affect more than generator alarming. Depending on the installed option configuration, the unit may participate in generator protection, electrical measurement, synchronization-related functions, breaker control, and communication with supervisory systems. Replacing it with a different GPU variant without checking the option configuration can therefore change system behavior.
Typical Applications
- Diesel generator protection systems
- Gas generator and engine-generator sets
- Marine and industrial power-generation installations
- Generator switchgear and supervisory control systems
DEIF’s historical Multi-line 2 software documentation covers together with GPC-2 and PPU-2, confirming its role within the generator control/protection family rather than as a conventional PLC I/O device.
Technical Pitfalls to Avoid
- Do not treat GPU/2/GS as a generic power-supply module.
Some secondary listings incorrectly describe GPU/2/GS as a standalone power module. DEIF’s own product documentation identifies as a Generator Protection Unit. - Do not assume every has the same I/O and protection functions.
Multi-line 2 hardware uses option-based configurations. Analog outputs, communication interfaces, relay functions, synchronization features, and protection functions should be checked against the actual unit’s option code rather than copied from another . - Check the software version before replacement.
DEIF’s historical records show multiple software generations, including 1.x and 2.x application series. A replacement should be checked against the existing parameter backup and application version. - Do not assume has a current drop-in replacement.
DEIF currently marks as phased out/end-of-life and states that it does not currently have a direct replacement. A modernization decision should therefore consider the complete generator-control architecture rather than substituting a newer controller based only on physical dimensions.
Related Products
- — Base Generator Protection Unit family to which GPU/2/GS belongs.
- DEIF GPC-2 — Generator Paralleling Controller in the same Multi-line 2 generation.
- DEIF PPU-2 — Generator Paralleling and Protection Unit combining broader paralleling and protection functions.
- DEIF GPU-3 — Later-generation generator protection platform; not automatically interchangeable with .
- DEIF GPC-3 — Later Multi-line generator paralleling controller.
- DEIF PPU-3 — Later generator paralleling and protection platform.
- DEIF AGC-2 — Automatic Genset Controller from the same Multi-line 2 generation.
- DEIF PPM-2 — Power-management hardware associated with Multi-line 2 installations.
DEIF’s own software records show the , GPC-2, and PPU-2 products sharing the Multi-line 2 software ecosystem, while later records distinguish GPU-3, GPC-3, and PPU-3 as newer generations.
Procurement Check
Before approving a DEIF GPU/2/GS replacement, verify:
- Exact designation: GPU/2/GS
- Complete DEIF type/option code
- hardware revision
- Multi-line 2 application version
- Existing parameter backup
- Generator rated voltage
- Generator CT/PT configuration
- Protection functions currently enabled
- Breaker and synchronization configuration
- Relay-output allocation
- Analog I/O options
- Communication option
- Existing wiring and terminal arrangement
- Event/alarm configuration
- Original nameplate and serial information
Recommended procurement description:
DEIF GPU/2/GS Multi-line 2 Generator Protection Unit, Generator Protection and Monitoring Controller, Legacy Genset Protection Hardware.
The important distinction is that GPU/2/GS is generator protection/control hardware, not a generic PLC or power-supply module. Since DEIF now lists as phased out, preserving the exact option configuration, software version, parameter set, and generator wiring is especially important when sourcing a replacement.
