DEIF CM-2 Product Description
Product Overview
DEIF CM-2 is a multifunction control module designed for the DELOMATIC Multi-Function System, serving as the main controller unit responsible for communication management, application logic execution, and coordination of distributed control functions. Developed by DEIF A/S, Denmark, DEIF CM-2 is a core automation module used in generator control, power management, and industrial energy systems where reliable monitoring and coordinated operation are required. The module acts as the central processing element within a DELOMATIC DGU (Diesel Generator Unit), managing communication between connected modules, external devices, and supervisory systems.
The DEIF CM-2 provides multiple communication interfaces, including RS-232, RS-422, and RS-485 serial communication, allowing integration with external controllers, PLC systems, monitoring equipment, and operator interfaces. As the main control module in the DELOMATIC architecture, DEIF CM-2 executes programmed control sequences, handles system communication, and supports flexible configuration for different generator and automation applications.
Designed for demanding industrial and marine environments, DEIF CM-2 offers reliable operation, modular installation, and long service life. It is commonly found in shipboard power systems, diesel generator control panels, offshore installations, and industrial energy management systems where stable communication and dependable control performance are essential.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | CM-2 |
| Manufacturer | DEIF A/S |
| Product Series | DELOMATIC Multi-Function System |
| Product Type | Control Module / Main Controller Module |
| Main Function | System control, communication management, application processing |
| System Application | Generator control and power management systems |
| Controller Role | Main controller for DELOMATIC DGU |
| Communication Interfaces | RS-232 / RS-422 / RS-485 |
| Network Communication | ARC-net communication |
| Power Supply | 24 VDC |
| Power Consumption | Industrial low-power electronic module |
| Mounting Type | DELOMATIC rack-mounted module |
| Terminal Type | Screw terminal connection, max. 2.5 mm² |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +70°C |
| Protection Degree | IP20 (installed in DELOMATIC rack) |
| Humidity Class | Class HSE according to DIN 40040 |
| Application Standard | Industrial and marine automation environments |
Main Features and Advantages
Centralized control capability:
DEIF CM-2 functions as the main processing and communication module within the DELOMATIC control architecture. It coordinates system operation, executes programmed logic, and manages communication between various control modules. This centralized structure simplifies system design and improves operational reliability.
Flexible communication architecture:
One of the key advantages of DEIF CM-2 is its integrated serial communication capability. Through RS-232, RS-422, and RS-485 interfaces, DEIF CM-2 can exchange data with external automation equipment, engineering tools, and supervisory systems. This allows easy integration into different industrial control environments.

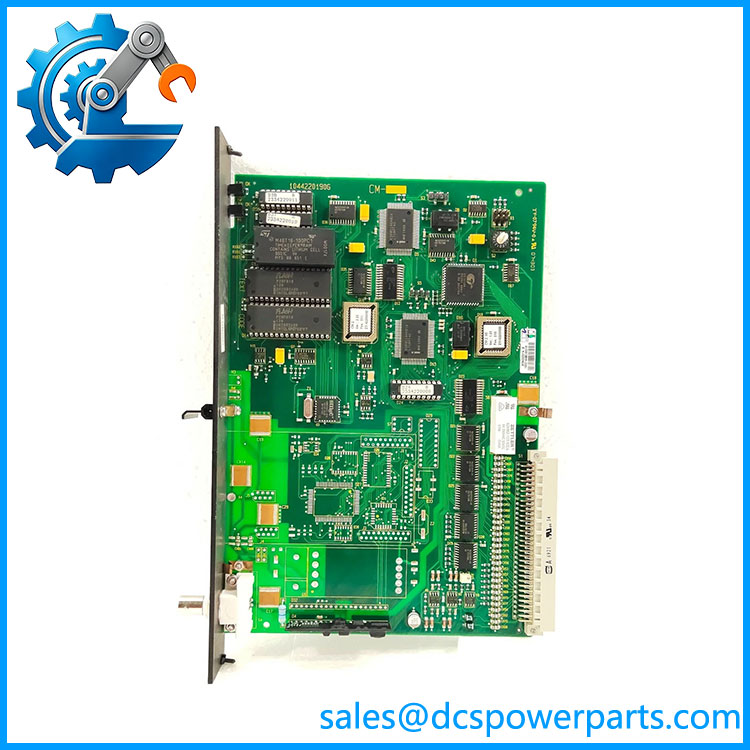

CM-2
Reliable DELOMATIC system integration:
DEIF CM-2 is specifically designed for the DELOMATIC Multi-Function System. It provides seamless compatibility with DEIF modules and ensures stable communication within distributed generator control solutions. The modular architecture enables flexible expansion according to application requirements.
Industrial-grade durability:
Built for continuous operation, DEIF CM-2 is suitable for harsh industrial and marine environments. The module supports wide operating temperature ranges and robust electrical design, ensuring stable performance in applications where downtime must be minimized.
Efficient maintenance and troubleshooting:
DEIF CM-2 simplifies maintenance through modular installation and diagnostic communication functions. Engineers can quickly identify system status, communication faults, and control issues, reducing troubleshooting time and improving system availability.
Versatile automation applications:
The programmable characteristics of DEIF CM-2 allow it to be adapted for different generator and energy control scenarios. It can support customized control strategies according to the requirements of OEM generator packages and industrial power systems.
Application Areas
DEIF CM-2 is primarily applied in generator control and industrial automation systems based on the DELOMATIC Multi-Function System.
In marine power systems, DEIF CM-2 is widely used in ship generator control panels, auxiliary power systems, and marine energy management installations. It provides centralized control and communication functions for diesel generator units, helping maintain stable onboard electrical power.
In offshore applications, DEIF CM-2 supports generator automation systems used on platforms and marine facilities. Reliable communication and modular control capability help ensure continuous operation under demanding environmental conditions.
In industrial power generation, DEIF CM-2 is applied in diesel generator packages, standby power systems, and distributed energy installations. It coordinates control functions between generator components and external monitoring systems.
In manufacturing plants and infrastructure facilities, DEIF CM-2 helps manage backup power equipment and automated generator systems. Its communication capability allows integration with PLC and SCADA platforms for centralized supervision.
For existing DEIF DELOMATIC installations, DEIF CM-2 remains an important replacement component used to maintain legacy control systems and extend the operational life of installed generator automation equipment.
Related Products
- DEIF DELOMATIC DGU Series: Generator control system platform where DEIF CM-2 operates as the main control module.
- DEIF DM-1: Related DELOMATIC module used for distributed control functions.
- DEIF PCM-1: Power control module used in DEIF generator management architectures.
- DEIF AGC-4 Mk II: Modern automatic generator controller providing advanced synchronization and power management functions.
- DEIF AGC 150: Compact generator controller for single genset and industrial applications.
- DEIF PPM-300: Advanced power management controller for marine and offshore systems.
- DEIF GPU Series: Generator protection and control products for industrial power applications.
- DEIF MIC-2: Electrical measurement module for monitoring voltage, current, power, and energy parameters.
