DEIF IOM 4.2 | Delomatic 400 Multifunction I/O Module | Generator Control
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | DEIF A/S |
| Model | IOM 4.2 |
| Platform | Delomatic 400 / DM-400 |
| Product Type | Multifunction I/O module |
| Total I/O Classification | 40-channel multifunction module |
| Temperature Inputs | 6 × Pt100/Pt1000, 2-/3-/4-wire |
| Thermocouple Alternative | 6 × Type K NiCr-Ni |
| Analog Inputs | 4 |
| Analog Input Signal | 0/4–20 mA |
| Analog Input Resolution | 12 bit |
| Analog Outputs | 4 |
| Analog Output Signal | ±20 mA |
| Analog Output Resolution | 10 bit |
| Maximum Analog Output Load | 500 Ω |
| Digital Inputs | 12 |
| Digital Input Voltage | 9–36 VDC or -9–36 VDC |
| Frequency/Digital Inputs | 4 individually galvanically isolated |
| Frequency Range | 0–20 kHz |
| Frequency Sampling | 1.25 MHz internal sampling |
| Digital Outputs | 10 |
| Digital Output Supply | External 9–36 VDC |
| Digital Output Load | Up to 200 mA |
| Digital Output Protection | Short-circuit and thermal overload protection |
| Galvanic Isolation | Optical isolation between I/O groups |
| Module Width | 8 TE / 40.64 mm |
DEIF describes IOM 4.2 as a multifunctional interface for sensors and for interfacing other systems through analog and digital signals. The module provides six temperature inputs, four analog current inputs, four analog current outputs, 12 standard digital inputs, four individually isolated frequency/digital inputs, and 10 digital outputs.
Product Introduction
The DEIF IOM 4.2 is the general-purpose field-interface module within the Delomatic 400 control architecture. Unlike a simple digital I/O card, it combines temperature measurement, analog process signals, speed/frequency pickup inputs, conventional digital signals, and proportional analog outputs in one module. This makes it suitable for generator, turbine, and auxiliary-system control where several signal types must be handled by the same controller.
In a typical DM-400 installation, IOM 4.2 modules work alongside the PCM 4.3 main control/power module and, where generator electrical measurement is required, the SCM 4.1 AC measurement module. Multiple IOM 4.2 modules can be installed when the application requires additional field I/O.

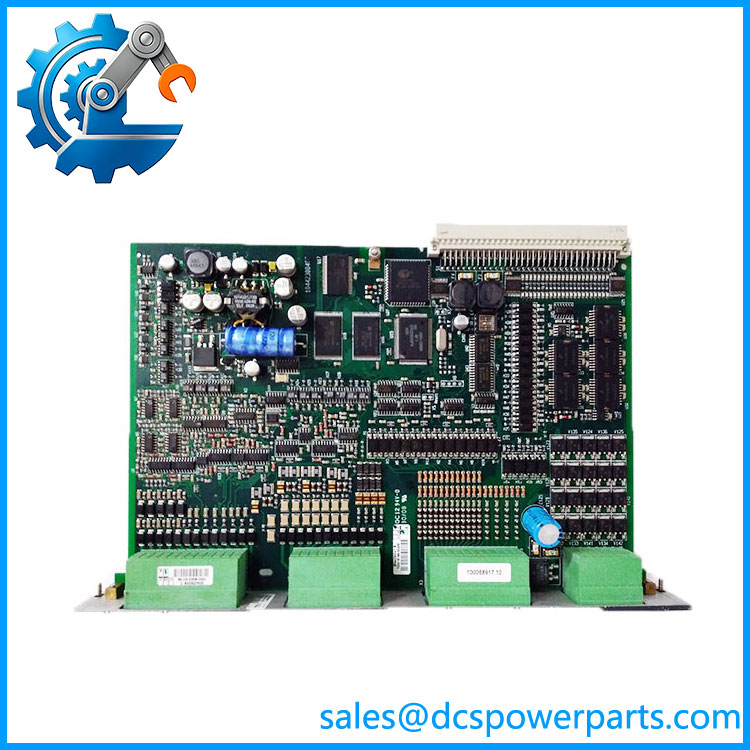

IOM4.2
Application Scenarios & Field Pitfalls — Engineer’s Perspective
Engineering Pain Point
The IOM 4.2 often carries signals from several different parts of a generator package. A replacement therefore needs to match the original signal assignment, not merely the module designation. Incorrect sensor type, polarity, analog scaling, or RPM-input wiring can produce control errors even when the module itself is healthy.
Typical Applications
- DEIF Delomatic 400 generator control systems
- Gas-engine generator monitoring and control
- Hydro turbine speed-governor systems
- Generator auxiliary-system monitoring
- Temperature, pressure, position, and process-signal acquisition
- Speed/RPM pickup measurement
- AVR, governor, or frequency-converter analog setpoint interfaces
DEIF’s DM-400 Hydro configurations use IOM 4.2 modules for combinations of Pt100 inputs, 4–20 mA/0–10 V process inputs, ±20 mA outputs, digital inputs, high-speed inputs, and digital outputs.
Technical Pitfalls to Avoid
- Do not treat every temperature channel as universally interchangeable.
The six temperature channels can be configured for Pt100/Pt1000 or alternatively Type K thermocouples. Confirm the original application before changing sensor wiring. - Check the analog-output load.
The four analog outputs are ±20 mA, 10-bit, with a maximum burden of 500 Ω. This matters when the outputs drive governors, AVRs, valve interfaces, or frequency converters. - Protect the RPM/frequency inputs from wiring mistakes.
The four frequency/digital inputs are individually galvanically isolated and can measure signals up to 20 kHz. These are not equivalent to the ordinary 12 digital inputs. - Verify external power for digital outputs.
The 10 digital outputs require an external 9–36 VDC supply and support loads up to 200 mA. Do not assume the IOM module internally supplies the field load.
Related Products
- DEIF PCM 4.3 — Main processor and power-supply module for the DM-400 rack; coordinates the IOM modules.
- DEIF SCM 4.1 — Three-phase AC measurement and fast-protection module for generator and mains measurements.
- DEIF PCM 4.4 — Controller/power module typically used for DM-400 extension racks.
- DEIF IOM 4.2 — Multifunction field-I/O module used when additional analog, digital, temperature, and speed signals are required.
- DEIF DM-400 — Complete Delomatic 400 control platform incorporating PCM, SCM, and IOM modules.
- DEIF Delomatic 400 Hydro — DM-400 configuration for hydroelectric turbine and generator control.
- DEIF Delomatic 400 Gas — DM-400 configuration for gas-engine generator applications.
Procurement & Replacement Check
Before purchasing a DEIF IOM 4.2, verify:
- Exact designation: IOM 4.2
- Delomatic generation: DM-400 / Delomatic 400
- Gas, hydro, or other application variant
- Number of IOM 4.2 modules installed
- Original module position and I/O assignment
- Pt100/Pt1000 versus Type K configuration
- 4–20 mA input scaling
- ±20 mA output scaling and connected load
- RPM/frequency pickup type and frequency range
- Digital input polarity
- External digital-output supply voltage
- PCM 4.3 compatibility
- Application software and configuration backup
- Terminal wiring and connector condition
Recommended procurement description:
DEIF IOM 4.2 Multifunction I/O Module, Delomatic 400 DM-400, 6 Temperature Inputs, 4 × 0/4–20 mA Analog Inputs, 4 × ±20 mA Analog Outputs, 12 Digital Inputs, 4 Isolated Frequency Inputs, 10 Digital Outputs.
The key distinction is that IOM 4.2 is the multifunction field-I/O module of the DEIF Delomatic 400 system. Its value is the combination of process, temperature, speed, digital, and proportional-control interfaces in one module; for a replacement, the original I/O assignment and sensor configuration should be checked before commissioning.
