TRICONEX RO3451 Product Description
Product Overview

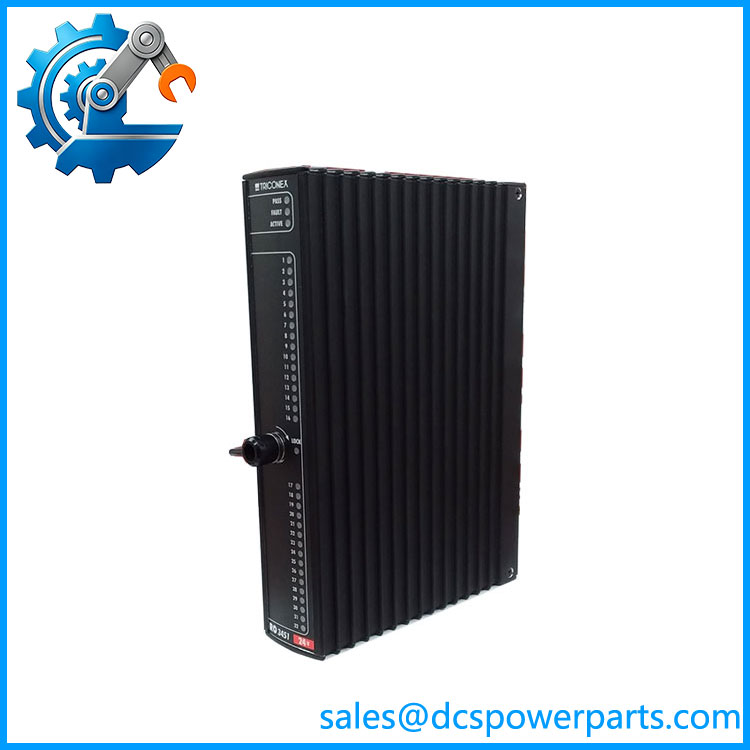

TRICONEX RO3451 is a 32-channel solid-state relay output module designed for the Tricon safety instrumented system (SIS). It provides electrically isolated digital outputs for controlling critical field devices such as solenoid valves, shutdown actuators, alarms, contactors and interlocking equipment. Technical documentation for the related Trident architecture identifies Model 3451 as a solid-state relay output module with 32 individual relay outputs, with output status monitored through feedback circuitry.
The TRICONEX RO3451 operates as an execution interface between the safety controller and field equipment. Control decisions generated by the Tricon processor are delivered to the output module, where the corresponding channels actuate the connected field loads. Its solid-state relay architecture is particularly valuable in applications requiring frequent switching, electrical isolation and high availability.
In a TRICONEX TMR safety architecture, RO3451 is used where dependable final-element control is essential. The module is therefore well suited to emergency shutdown, burner management, fire and gas, turbine protection and other safety-related applications where an output failure could have significant consequences.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | RO3451 |
| Manufacturer | TRICONEX / Invensys |
| Product Type | Solid-State Relay Output Module |
| System | Tricon / Trident Safety System |
| Output Channels | 32 |
| Output Type | Solid-State Relay |
| Output Configuration | Independent digital outputs |
| Typical Supply Class | 24 VDC |
| Electrical Isolation | Channel/output isolation architecture |
| Diagnostic Function | Output status / relay feedback monitoring |
| Redundancy | TMR system architecture |
| Hot Sparing | Supported in applicable Tricon/Trident configurations |
| Operating Temperature | Application/configuration dependent |
| Installation | Tricon/Trident I/O baseplate |
| Application | SIS / ESD / Critical Control |
Note: Third-party listings provide inconsistent electrical ratings for RO3451. The Trident planning documentation confirms the Model 3451 24 V solid-state relay output module with 32 outputs, while exact load-current and field-voltage limits should be verified from the applicable Tricon/Trident hardware manual before engineering use.
Main Features and Advantages
32-Channel Solid-State Output
The TRICONEX RO3451 provides 32 individual output channels in one module, allowing a single I/O position to control a large number of discrete field devices. This high channel density is particularly useful in safety systems containing numerous shutdown valves, alarms and interlocks.
Solid-State Relay Technology
Unlike conventional electromechanical relay boards, the RO3451 uses solid-state relay technology. This eliminates mechanical relay contact wear and makes the module suitable for applications requiring repeated switching operations.
RO3451
Output Verification
The Trident documentation describes an I/O loop-back circuit for each output, allowing the system to verify relay operation independently of the connected load. Ongoing diagnostics monitor the operational status of the SRO module.
TMR Safety Architecture
The RO3451 is designed for use within a high-integrity Tricon/Trident safety architecture. In the Trident implementation, output signals from the three main processors are voted before driving the individual output relays. This architecture helps prevent a single processor fault from producing an inappropriate safety action.
Online Maintenance Capability
The Trident documentation states that the SRO module supports hot sparing, allowing online replacement of a faulty module or continuous backup by a spare module. This capability can significantly reduce maintenance-related process interruptions.
High-Integrity Final-Element Control
The module is intended for the final stage between safety logic and physical equipment. It can therefore be used to control devices such as shutdown solenoids, safety relays, alarms and other discrete actuators where reliable execution of a safety command is essential.
Improved Maintenance Diagnostics
Module-level and output feedback diagnostics make it easier to distinguish between a control-system problem and an external field-device problem. This can reduce troubleshooting time and help maintenance personnel locate failed channels more efficiently.
Application Fields
TRICONEX RO3451 is primarily used in Safety Instrumented Systems (SIS) where digital output commands must be delivered reliably to critical field equipment. It is especially suitable for applications requiring high availability, fault tolerance and continuous diagnostic monitoring.
In oil and gas production, the module can control emergency shutdown valves, isolation devices and alarm circuits. During an abnormal process condition, the safety controller can issue shutdown commands through the RO3451 to place hazardous equipment into a predetermined safe state.
In petrochemical and chemical plants, RO3451 can be integrated into ESD, process interlock and high-integrity protection systems. Typical loads include solenoid-operated valves, shutdown relays and other discrete final elements associated with reactors, compressors, pumps and process isolation systems.
In power generation, the module can be applied to turbine trip systems, boiler protection and auxiliary safety circuits. Its redundant safety-system architecture is particularly valuable where incorrect output operation could lead to equipment damage or personnel risk.
The TRICONEX RO3451 is also suitable for fire and gas systems, burner management, offshore platforms, LNG facilities, refining units and other high-hazard process environments. Its 32-channel architecture makes it practical for installations requiring many discrete safety outputs while maintaining a compact I/O configuration.
