Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ProSoft Technology |
| Model Number | PTQ-PDPMV1 |
| Product Type | PROFIBUS DPV1 Master Network Interface Module |
| Platform Compatibility | Schneider Electric Modicon Quantum PLC |
| Backplane Interface | Quantum single-slot compatible |
| PROFIBUS Protocol | DPV0 / DPV1 Master |
| PROFIBUS Interface | Isolated RS-485 via 9-pin D-sub connector |
| Maximum Baud Rate | 12 Mbps |
| Maximum Slave Devices | Up to 125 devices with repeaters |
| Cyclic Data Capacity | Up to 1536 bytes input / 1536 bytes output |
| Configuration Software | ProSoft Configuration Builder (PCB) |
| Ethernet Port | RJ45 for configuration and diagnostics |
| Configuration Port | RS-232 DB-9 |
| Processor Interface | Quantum backplane data exchange |
| Hot Standby Support | Supported with compatible Quantum Unity systems |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% non-condensing |
Product Introduction
ProSoft PTQ-PDPMV1 Overview
The ProSoft PTQ-PDPMV1 is a PROFIBUS DPV1 Master communication module designed for Schneider Electric Modicon Quantum PLC systems. It provides a communication bridge between Quantum processors and PROFIBUS DP slave devices, allowing process data exchange, diagnostics, and parameter communication through a standard industrial fieldbus network.
The ProSoft PTQ-PDPMV1 is commonly used in legacy Quantum automation systems that require PROFIBUS connectivity for drives, remote I/O, instrumentation, and intelligent field devices. Its DPV1 support allows access to extended diagnostics and acyclic parameter data beyond normal cyclic I/O exchange.

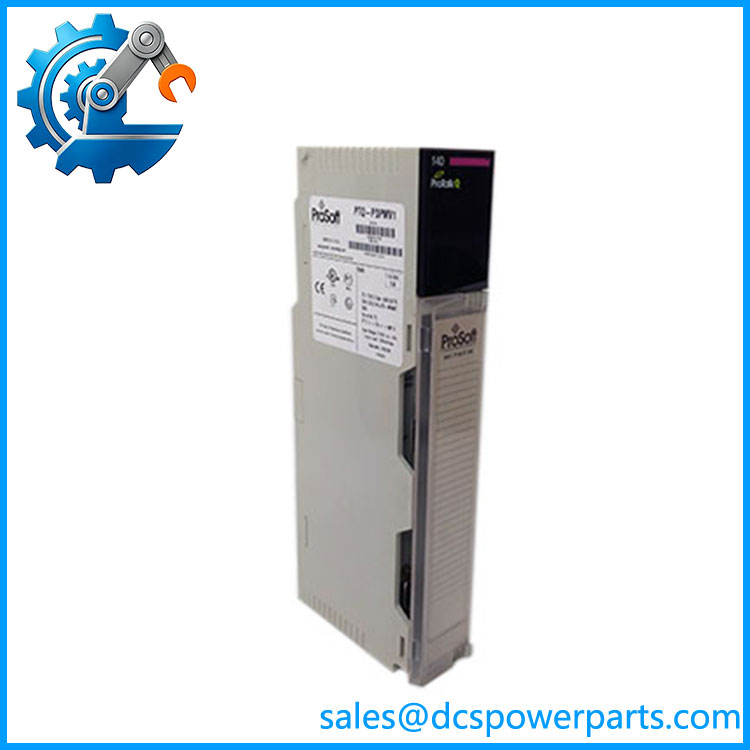

PTQ-PDPMV1
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A production line upgrade requires connecting existing PROFIBUS devices to an older Quantum PLC platform. The PLC logic is still running correctly, but the plant needs additional drives, remote I/O stations, or intelligent instruments on the network.
This is where communication modules become critical. A PROFIBUS master failure can disconnect an entire segment of field devices. The issue may not be the module itself; network addressing, GSD files, termination, and baud rate settings are frequent causes of commissioning problems.
The PTQ-PDPMV1 handles the communication layer between the Quantum processor and the PROFIBUS network. Configuration accuracy matters.
Typical Applications
- Manufacturing Automation – PROFIBUS-connected variable frequency drives, remote I/O racks, and machine control devices.
- Water and Wastewater Plants – Pump stations, motor control centers, and instrumentation networks connected to Quantum PLC systems.
- Oil & Gas Facilities – Legacy PLC systems communicating with intelligent field instruments and packaged equipment.
- Power Distribution Systems – PROFIBUS networks for switchgear monitoring and auxiliary control equipment.
Technical Pitfalls to Avoid
- Verify PROFIBUS Addressing and GSD Files
Every slave device requires correct node addressing and device description files. Incorrect GSD configuration can prevent network communication even when wiring is correct.
- Check Bus Termination and Cable Installation
PROFIBUS is sensitive to physical layer problems. Incorrect termination resistors, poor shielding, and excessive cable length can create intermittent communication faults.
- Confirm Quantum PLC Compatibility
Verify processor model, Unity Pro/Concept version, rack configuration, and firmware revision before installation. The module depends on correct backplane communication settings.
Related Products
- ProSoft PTQ-PDPMV1-HSBY
Hot Standby-capable version of the PROFIBUS DPV1 Master module. Used in Quantum redundant control systems requiring communication failover support. - ProSoft PTQ-DP-MV1
Related PROFIBUS communication module family for Quantum systems. Application depends on required protocol features and device compatibility. - ProSoft MVI56-PDPMV1
PROFIBUS DPV1 Master module designed for Rockwell ControlLogix platforms. Similar communication function but different PLC backplane architecture. - Schneider Electric 140CPU67160
Quantum Unity Hot Standby processor commonly associated with redundant applications. - Schneider Electric Modicon Quantum PLC Rack System
The host automation platform for installation. Module placement and processor compatibility must be verified. - ProSoft PROFIBUS Master FDT/DTM Software
Engineering software component used for PROFIBUS device parameter access and diagnostics through compatible FDT environments. - PROFIBUS DP Remote I/O Modules
Field devices connected as slaves to the network for distributed signal acquisition. - PROFIBUS Variable Frequency Drives
Intelligent motor control devices commonly integrated through the communication interface.
