Description
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ProSoft Technology |
| Model | 5304-MBP-PDPM |
| Series | ProLinx 5000 |
| Product Type | Protocol Gateway |
| Primary Conversion | Modbus Plus ↔ PROFIBUS-DP |
| Modbus Plus Port | 1 × configurable DB9 female |
| Modbus Plus Mode | Master or Slave |
| PROFIBUS Port | 1 × configurable DB9 female |
| PROFIBUS Role | DP Master |
| PROFIBUS Network | Mono-Master or Multi-Master |
| PROFIBUS Baud Rate | 9.6 Kbps to 12 Mbps |
| Mounting | DIN rail |
| Configuration | ProSoft configuration environment |
| Application | PLC, remote I/O, drives, instruments, and process-device integration |
| Product Status | Legacy product |
The manufacturer’s datasheet describes the 5304-MBP-PDPM as a standalone DIN-rail gateway with one Modbus Plus DB9F port and one PROFIBUS-DP Master DB9F port. The Modbus Plus driver can operate as either master or slave, while the PROFIBUS driver supports master operation on mono-master or multi-master networks.
ProSoft currently categorizes the model under its Legacy Products / ProLinx / 5000 Series support structure, so procurement should account for the fact that this is an older gateway platform.
Application Scenarios & Pain Points
A protocol gateway earns its place when the cost and risk of replacing an installed PLC network are higher than the cost of translating the required data. That is exactly the situation where the 5304-MBP-PDPM makes technical sense.
- Modicon/Modbus Plus systems: Existing Modbus Plus PLC equipment can exchange process data with PROFIBUS-DP field devices without replacing the complete controller architecture.
- Drive integration: PROFIBUS-compatible drives can be connected to an older Modbus Plus control system through the gateway.
- Remote I/O expansion: PROFIBUS-DP slave I/O stations can be integrated while the supervisory PLC remains on Modbus Plus.
- Phased migration: Useful when a plant is replacing field devices in stages rather than executing a full controls migration at once.
Field note: The gateway does not magically make two networks behave as one. The real engineering work is the data map—register organization on the Modbus Plus side, PROFIBUS slave configuration, cyclic data sizes, and diagnostic handling.
Brief Field Case
A common retrofit pattern is an older PLC network that still controls the process reliably while a replacement drive package arrives with PROFIBUS-DP only. Instead of replacing the PLC rack, the gateway can handle the protocol boundary. The commissioning team then focuses on mapping status words, command words, speed references, and fault information between the two networks.

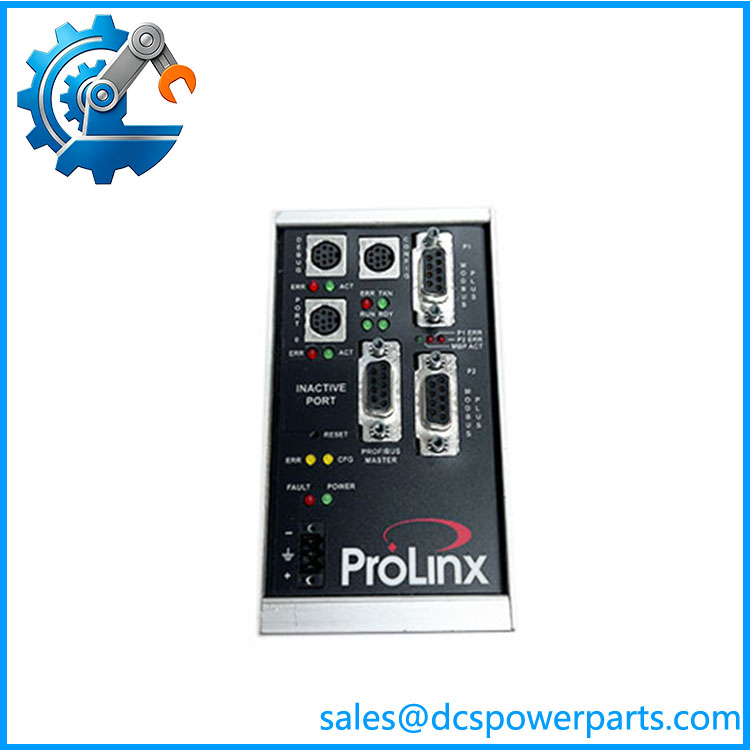

5304-MBP-PDPM
Related Products
- ProSoft 5304-MBP-PDPM — Subject gateway. Converts data between Modbus Plus and PROFIBUS-DP with the gateway acting as the PROFIBUS master.
- ProSoft 5304-MBP-PDPMV1 — Related ProLinx Modbus Plus/PROFIBUS-DP Master gateway variant. The V1 designation should be matched carefully against the existing configuration and firmware requirements.
- ProSoft 5305-MBP-PDPS — Complementary Modbus Plus to PROFIBUS-DP Slave gateway. It serves the opposite PROFIBUS role and should not be substituted when the application requires the gateway to control PROFIBUS slaves.
- ProSoft 5303-MBP-MNET — Modbus Plus to Modbus TCP/IP gateway. Appropriate when the modernization target is Ethernet-based Modbus rather than PROFIBUS-DP.
- ProSoft 5301-MBP-MCM — Modbus Plus to Modbus serial gateway. Useful for integrating serial Modbus devices into a Modbus Plus system.
- ProSoft 5301-MBP-DNPS — Modbus Plus to DeviceNet Slave gateway. Relevant when DeviceNet equipment is present instead of PROFIBUS-DP equipment.
- ProSoft 5307-MBP-HART — Modbus Plus to HART gateway for HART instrumentation applications. It serves a different field-instrument protocol and should not be confused with the PROFIBUS gateway.
- ProSoft 5604-RIO-PDPM — Related ProLinx Remote I/O platform with Modbus-based architecture and PROFIBUS-DP Master functionality. Its hardware architecture differs from the 5304-MBP-PDPM.
The Engineer’s Guide: Field Pitfalls to Avoid
WARNING 1 — Do not confuse PROFIBUS Master and Slave versions.
The 5304-MBP-PDPM is a PROFIBUS-DP Master. The similarly named 5305-MBP-PDPS is a PROFIBUS-DP Slave device.
How to avoid it: Confirm which side of the PROFIBUS network the gateway occupies. If it must control and exchange cyclic data with PROFIBUS slaves, the Master version is required.
WARNING 2 — Do not replace the unit without preserving the data map.
A gateway can establish communication while still transferring the wrong words.
How to avoid it: Record the existing Modbus Plus register assignments, PROFIBUS slave addresses, module configuration, input/output byte lengths, and diagnostic registers before replacement. Compare actual process values after commissioning—not just the communication status.
WARNING 3 — Treat the 5304-MBP-PDPM as a legacy platform during procurement.
ProSoft lists this model under its Legacy Products support area.
How to avoid it: For a production spare, request the exact hardware version, firmware information, configuration backup, diagnostic test results, and evidence that both communication ports have been tested. A unit that merely powers up is not enough for a protocol gateway.
Frequently Asked Questions (FAQ)
What is the ProSoft 5304-MBP-PDPM?
It is a ProLinx protocol gateway that connects Modbus Plus networks with PROFIBUS-DP networks. The gateway contains one configurable Modbus Plus port and one PROFIBUS-DP Master port.
The primary use case is allowing existing Modbus Plus control equipment to communicate with PROFIBUS-DP slave devices.
Is 5304-MBP-PDPM a PROFIBUS Master or Slave?
It is a PROFIBUS-DP Master.
The manufacturer specifies support for both mono-master and multi-master PROFIBUS networks.
That makes it suitable for applications where the gateway must manage PROFIBUS-DP slave devices.
What is the PROFIBUS speed range?
The documented range is 9.6 Kbps through 12 Mbps.
The selected baud rate must still be compatible with the PROFIBUS segment design, connected devices, cable length, and network configuration.
Can 5304-MBP-PDPM connect a Modbus Plus PLC to PROFIBUS drives?
Yes, this is a practical application. The Modbus Plus side communicates with the existing PLC/network, while the gateway operates as PROFIBUS master toward compatible PROFIBUS drives or other slaves.
During commissioning, pay particular attention to command/status word mapping, scaling, drive state machines, and fault-code handling.
Is 5304-MBP-PDPM still a current product?
ProSoft’s current website categorizes 5304-MBP-PDPM under Legacy Products, with downloadable documentation including the MBP-PDPM datasheet and driver manuals.
For an existing plant, that does not make the unit unusable. It does mean that a spare-parts strategy should be deliberate, especially if the gateway is a single point of failure.
What should I check when buying a replacement 5304-MBP-PDPM?
Ask for:
- Exact 5304-MBP-PDPM nameplate.
- Hardware revision.
- Firmware revision.
- Configuration backup.
- Modbus Plus communication test.
- PROFIBUS-DP Master communication test.
- PROFIBUS slave discovery/configuration test.
- DB9 connector condition.
- DIN-rail mounting condition.
- Power-up and diagnostic verification.
- Warranty and condition statement.
For this particular gateway, I would put configuration preservation ahead of cosmetic condition. A clean-looking unit with the wrong firmware or missing configuration can create more commissioning work than an older-looking unit with a verified hardware and software match.
