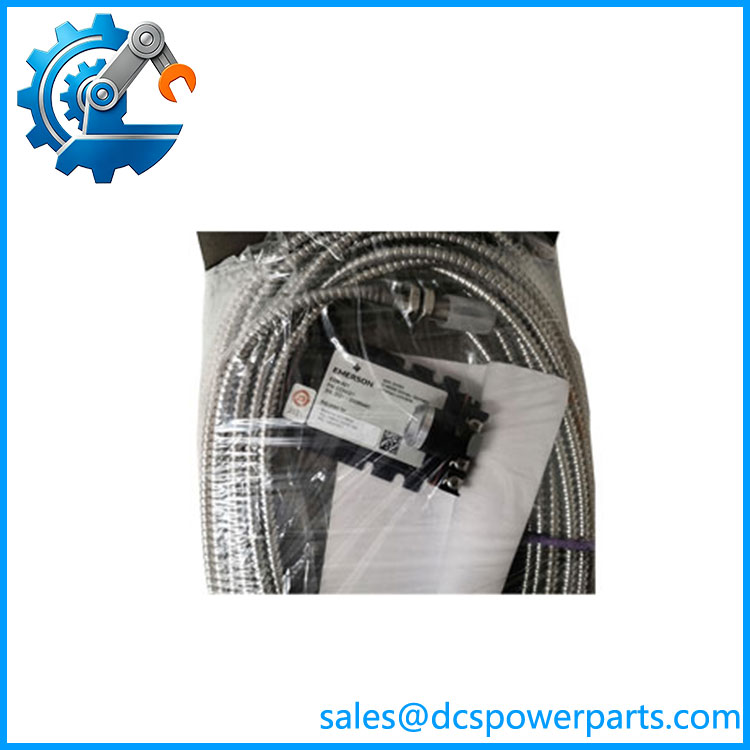

Emerson EPRO PR6424/013-130+CON021 Eddy Current Displacement Measurement System Product Description
Product Overview
Emerson EPRO PR6424/013-130+CON021 is a high-precision eddy current displacement measurement system designed for critical rotating machinery condition monitoring applications. The complete system consists of an EPRO PR6424 series 16 mm eddy current sensor and a CON021 signal converter, providing accurate non-contact measurement of shaft displacement, vibration, axial position, eccentricity, and rotational speed/key parameters. The Emerson EPRO PR6424/013-130+CON021 system is widely used in turbine machinery, compressors, pumps, generators, and other high-value rotating equipment where continuous monitoring and early fault detection are essential.
The Emerson EPRO PR6424/013-130+CON021 belongs to the EPRO PR642 series of eddy current measurement solutions, which are designed specifically for turbomachinery protection and machinery health monitoring. The PR6424 sensor uses a non-contact eddy current measurement principle to detect changes in the distance between the probe tip and the conductive shaft surface, while the CON021 converter converts the sensor signal into a standardized voltage output for connection to monitoring systems such as EPRO MMS6000/MMS7000 platforms, turbine protection systems, and industrial condition monitoring equipment.
Designed for demanding industrial environments, Emerson EPRO PR6424/013-130+CON021 provides excellent dynamic response, high measurement stability, and compatibility with safety-critical machinery applications. The sensor system is especially suitable for large shaft diameter equipment where accurate radial and axial displacement monitoring is required. By providing continuous real-time mechanical condition information, Emerson EPRO PR6424/013-130+CON021 helps operators improve equipment reliability, prevent unexpected shutdowns, and optimize maintenance strategies.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | PR6424/013-130+CON021 |
| Manufacturer | Emerson EPRO |
| Product Type | Eddy Current Displacement Sensor System |
| Sensor Model | PR6424/013-130 |
| Signal Converter Model | CON021 |
| Measurement Principle | Eddy Current Non-Contact Measurement |
| Sensor Diameter | 16 mm |
| Measurement Range | ±2.0 mm static displacement |
| Dynamic Measurement Range | 0 to 1000 μm vibration |
| Frequency Response | 0 to 20 kHz |
| Sensitivity | 4 V/mm ±1.5% |
| Target Shaft Diameter | ≥80 mm |
| Operating Temperature (Sensor) | -35°C to +150°C |
| Operating Temperature (Converter) | -30°C to +100°C |
| Output Signal | DC voltage proportional to displacement |
| Power Supply | -21 VDC to -32 VDC / -23 VDC to -32 VDC |
| Protection Rating | IP20 (converter) |
| Installation Method | Industrial panel / DIN rail converter mounting |
| Application Standard | Machinery protection and condition monitoring |
| Approvals | CE, ATEX, IECEx, CSA (system dependent) |
