Description
Product Overview

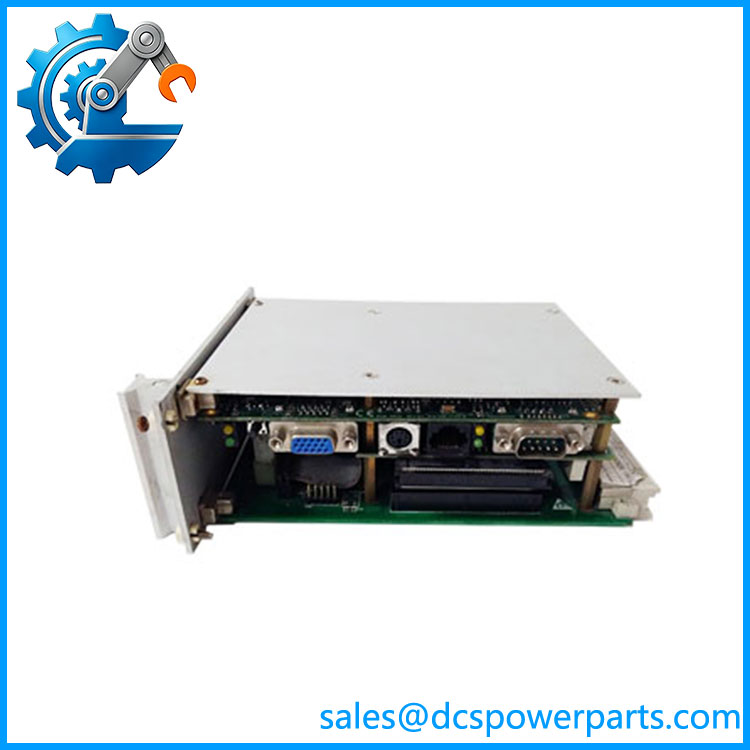

The EPRO MMS6823 9100-00001-05 is a displacement monitoring module associated with the EPRO MMS 6000 machinery monitoring platform, designed for reliable monitoring of mechanical displacement and movement in critical rotating equipment. The module is used in applications where changes in turbine casing, housing position, or other mechanical structures must be continuously detected and evaluated. Available industry references identify the MMS6823 9100-00001-05 as a displacement monitor used within industrial machinery protection and monitoring applications.
The EPRO MMS6823 9100-00001-05 is particularly relevant to steam turbines, gas turbines, hydro-generators, compressors, and other large rotating machines where thermal expansion and mechanical displacement can affect equipment integrity. It forms part of the signal-monitoring chain between displacement sensing equipment and the plant monitoring or protection system. Its purpose is to provide dependable displacement information for condition monitoring, alarm management, and equipment protection.
Within an industrial automation architecture, the MMS6823 9100-00001-05 can complement PLC, DCS, turbine control, and dedicated machinery protection systems. Its use in continuous-process facilities helps maintenance teams identify abnormal mechanical movement at an early stage and supports preventive maintenance strategies. The module is therefore valuable for plants where turbine availability, mechanical integrity, and reliable protection against abnormal operating conditions are essential.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | MMS6823 9100-00001-05 |
| Manufacturer | EPRO / Emerson |
| Product Family | EPRO MMS 6000 |
| Product Type | Displacement Monitoring Module |
| Monitoring Function | Mechanical displacement / expansion monitoring |
| Typical Measurement | Turbine casing and machinery displacement |
| Sensor Interface | Compatible EPRO displacement measurement chain |
| System Integration | MMS 6000 machinery monitoring system |
| Application | Turbine and critical rotating machinery monitoring |
| Installation | MMS 6000 system rack / module configuration |
| Operating Voltage | System-dependent; verify applicable hardware documentation |
| Communication | MMS system signal/output architecture |
| Operating Temperature | Verify according to installation and hardware revision |
| Diagnostic Function | Monitoring and alarm-related diagnostic functions |
Exact electrical input/output ranges, channel configuration, terminal assignment, environmental ratings, and power requirements should be verified against the original EPRO documentation and the specific hardware revision before replacement. Available references consistently identify this part number as a displacement-monitoring product, while some third-party listings provide conflicting electrical specifications.
Main Features and Advantages
Dedicated displacement monitoring
The MMS6823 9100-00001-05 is designed specifically for machinery displacement monitoring rather than general-purpose PLC signal acquisition. This makes it suitable for applications where small changes in mechanical position can indicate thermal expansion, alignment changes, mechanical stress, or abnormal equipment behavior.
Suitable for critical rotating machinery
The module is particularly associated with turbine and generator applications. Steam turbines, gas turbines, hydro-generators, and other large rotating machines can experience significant thermal and mechanical movement during startup, loading, unloading, and shutdown. Continuous displacement monitoring provides valuable information for machinery protection and operational decision-making.
MMS6823
Integration with EPRO MMS architecture
As part of the MMS 6000 monitoring platform, the MMS6823 9100-00001-05 can be incorporated into an established machinery monitoring architecture. This allows displacement information to be evaluated alongside other parameters such as vibration, speed, temperature, and shaft-related measurements.
Supports condition-based maintenance
Reliable mechanical displacement information can help maintenance personnel recognize developing equipment problems before they result in severe mechanical damage. Trends in casing or structural movement can provide useful diagnostic information during routine inspections and predictive maintenance programs.
Industrial replacement value
For facilities operating legacy EPRO/Emerson machinery monitoring systems, maintaining the correct original module can reduce engineering changes and avoid unnecessary modification of sensor wiring and monitoring configurations. The MMS6823 9100-00001-05 is therefore particularly useful as a maintenance spare for existing MMS 6000 installations.
Application Fields
The EPRO MMS6823 9100-00001-05 is primarily suited to machinery monitoring applications in power generation and process industries. In steam power plants, it can be used as part of a turbine monitoring arrangement for observing casing expansion and other mechanical displacement associated with temperature changes and operating load. Such information is important during turbine startup, synchronization, load changes, and shutdown.
In gas-turbine installations, the module can support monitoring of housing or structural movement associated with thermal cycling and changing operating conditions. In hydroelectric generation, displacement monitoring can provide supplementary mechanical condition information for large turbine-generator assemblies.
The module is also relevant to chemical and petrochemical facilities, where compressors, turbines, pumps, and other critical rotating equipment must operate continuously under demanding conditions. Integrating displacement information into the machinery monitoring architecture can help operators detect abnormal mechanical movement and support early intervention.
For oil & gas, metallurgy, and other continuous-process industries, the MMS6823 9100-00001-05 can be used where large rotating machines represent critical production assets. It can work alongside DCS, PLC, turbine control, and machinery protection systems, providing specialized mechanical monitoring data for alarm, protection, diagnostics, and maintenance functions.
Related Products
- MMS6823R 9100-00001-06 – Related/revised displacement monitoring version associated with the MMS6823 family; verify revision compatibility before substitution.
- MMS6110 – EPRO MMS 6000 dual-channel vibration monitoring module, used for vibration-related machinery condition monitoring.
- MMS6120 9100-00002C-08 – EPRO monitoring module associated with temperature measurement and machinery monitoring applications.
- MMS3120/022-000 – EPRO machinery vibration monitoring module used for rotating-equipment condition monitoring.
- CON021 9200-00006N – EPRO signal-conditioning component used with compatible sensor systems, particularly eddy-current measurement chains.
- CON011 9200-00001 – EPRO signal converter used with compatible industrial sensor applications.
- PR6423/003-030-CN – EPRO eddy-current displacement/vibration sensor used for non-contact measurement of rotating machinery parameters.
- PR6423/010-000-CN – EPRO eddy-current sensor for machinery vibration and displacement measurement applications.
- PR9376/010-011 – EPRO speed/proximity sensing component used in machinery monitoring systems.
