EPRO PR6423/000-131 Product Description
Product Overview

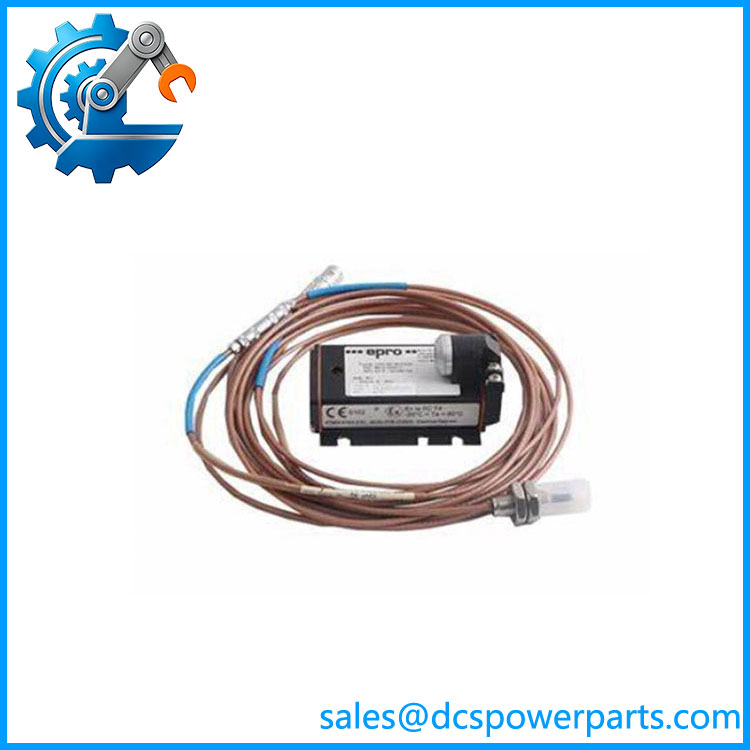

EPRO PR6423/000-131 is a high-precision 8 mm eddy current displacement sensor developed by EPRO (Emerson Process Management) for continuous condition monitoring of critical rotating machinery. As a member of the EPRO PR6423 series, EPRO PR6423/000-131 is designed for non-contact measurement of shaft vibration, axial displacement, radial displacement, rotor position, eccentricity, and rotational speed. It is widely used in machinery protection systems where high accuracy, fast response, and long-term measurement stability are required.
The EPRO PR6423/000-131 uses advanced eddy current measurement technology, generating a high-frequency electromagnetic field between the probe tip and the conductive shaft surface. Changes in the measurement gap are converted into proportional electrical signals, allowing precise monitoring of dynamic shaft movement without mechanical contact. This non-contact design eliminates wear caused by friction and enables reliable operation in high-speed rotating equipment exposed to vibration, oil contamination, and temperature fluctuations.
As a core sensing element in EPRO MMS 3000, MMS 6000, and modern Emerson machinery health monitoring solutions, EPRO PR6423/000-131 is typically combined with signal converters such as CON021, CON041, or equivalent monitoring modules to create a complete vibration protection measurement chain. The model suffix 000-131 represents a specific factory configuration with an 8 mm probe, 8 m cable length, and open cable termination, making it suitable for customized installation in industrial machinery monitoring systems.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | PR6423/000-131 |
| Manufacturer | EPRO / Emerson |
| Product Type | Eddy Current Displacement Sensor |
| Sensor Technology | Non-contact eddy current measurement |
| Sensor Diameter | 8 mm |
| Measurement Range | ±1 mm static displacement |
| Dynamic Measurement Range | 0–500 μm peak-to-peak vibration |
| Linear Measurement Range | 2 mm |
| Initial Air Gap | Approx. 0.5 mm |
| Sensitivity | 8 V/mm (203.2 mV/mil) |
| Linearity Accuracy | ≤ ±1% typical |
| Frequency Response | 0–20 kHz |
| Cable Length | 8 m |
| Cable Termination | Open cable end |
| Target Material | Ferromagnetic steel (42CrMo4 / AISI 4140) |
| Minimum Shaft Diameter | ≥25 mm |
| Operating Temperature | -35°C to +180°C |
| Protection Rating | IP66 |
| Compatible Converters | CON011 / CON021 / CON041 |
| Application System | EPRO MMS 3000 / MMS 6000 |
PR642300R-010
Application Areas
EPRO PR6423/000-131 is widely applied in industrial machinery protection and predictive maintenance systems requiring accurate displacement and vibration measurement.
In power generation plants, EPRO PR6423/000-131 is commonly installed on steam turbines, gas turbines, generators, and auxiliary rotating equipment. It provides important vibration and shaft position information for turbine protection systems and condition monitoring platforms.
In oil and gas facilities, EPRO PR6423/000-131 is used for compressors, pumps, expanders, and rotating process equipment. Continuous monitoring helps prevent failures caused by rotor instability, excessive vibration, or shaft displacement.
In petrochemical and chemical industries, EPRO PR6423/000-131 supports machinery protection systems that require high measurement reliability. It provides accurate signals for monitoring critical rotating assets operating under demanding production conditions.
In marine and offshore applications, EPRO PR6423/000-131 is applied to propulsion systems, power generators, compressors, and auxiliary machinery where equipment availability is essential.
In industrial manufacturing plants, EPRO PR6423/000-131 helps monitor motors, fans, pumps, and gear systems, improving equipment reliability and supporting condition-based maintenance strategies.
Related Products
- EPRO PR6423/008-110: Similar 8 mm eddy current sensor with different cable/configuration options for machinery monitoring applications.
- EPRO PR6423/010-110: PR6423 series sensor variant with alternative mechanical configuration.
- EPRO CON021: Signal converter designed for PR6423 series eddy current sensors.
- EPRO CON041: DIN rail style signal converter for industrial installation.
- EPRO MMS6000: Machinery protection monitoring system supporting PR6423 sensors.
- EPRO MMS3000: Compact machinery monitoring platform for vibration and displacement measurement.
- Emerson AMS 6500: Machinery health protection platform compatible with EPRO sensor technology.
- EPRO PR6424 Series: Larger displacement sensor family for different machinery measurement requirements.
