EPRO PR6423/000-000 | 8 mm Eddy-Current Sensor | Shaft Displacement Monitoring

Description

EPRO PR6423/000-000 | 8 mm Eddy-Current Sensor

Key Technical Specifications

The ordering matrix published by Emerson confirms that PR6423/000-000 decodes specifically as the 8 mm, M10×1, non-armored configuration with a 25 mm sleeve and LEMO cable termination. The broader PR6423 documentation specifies the environmental and mechanical characteristics of the sensor family.

Product Introduction

The EPRO PR6423/000-000 is an 8 mm eddy-current sensor intended for non-contact measurement of shaft position and displacement in rotating machinery. It operates by sensing changes in the electromagnetic field produced at the probe tip as a conductive target moves relative to the sensor. This makes the suitable for applications where physical contact with the rotating shaft is unacceptable, including turbine and compressor protection systems.

The exact suffix matters more than it may appear. sensors share the same basic 8 mm sensing platform, but the ordering code controls housing thread, sleeve length, cable arrangement, armor, adapter plug, and cable termination. /000-000 is not simply an interchangeable generic probe. The installed converter, extension cable, mounting geometry, and target material must also be considered before replacement.

PR6423/000‑000

Engineering Pain Point

The most common replacement mistake is matching only the 8 mm probe diameter while ignoring the complete mechanical and electrical chain. A sensor with the correct diameter but the wrong thread, sleeve length, cable termination, calibration, or converter can produce a mechanically installable assembly that does not reproduce the original measurement. The is a sensor element, not a self-contained PLC-style analog input device; its signal must be processed by compatible EPRO electronics.

Typical Applications

• Turbine shaft displacement: Radial or axial shaft movement monitoring in steam, gas, and hydraulic turbines.
• Compressor monitoring: Shaft position, eccentricity, and dynamic displacement measurements.
• Pump and fan protection: Detection of abnormal shaft movement and mechanical condition changes.
• Rotating-equipment condition monitoring: Integration with EPRO proximity measurement converters and machinery protection systems.

Technical Pitfalls to Avoid

1. Do not confuse the probe with the converter.
   /000-000 is the sensing element. The converter or monitoring electronics determine how the probe’s displacement signal is conditioned and presented to the protection system.
2. Check the complete ordering code.
   Emerson’s ordering matrix shows that the characters after / specify the sensor construction and cable configuration. A /01 or /10 can have different armor or housing-thread arrangements.
3. Verify the cable before installation.
   The 000-000 configuration is documented with a 1 m sensor cable, 3 m extension, and LEMO termination. A field installation using an open cable or different extension arrangement is not automatically equivalent.
4. Confirm the target material.
   Eddy-current systems are calibrated against conductive metallic targets. Changing shaft material, target geometry, or calibration conditions can affect measurement accuracy.
5. Set the physical gap correctly.
   The nominal operating gap is part of the sensor/converter measurement system. Do not use a generic proximity-probe gap simply because the probe diameter matches.
6. Do not substitute based only on electrical appearance.
   /000-000 is part of a specific EPRO measurement chain. The converter, probe cable, monitor channel, and configured calibration must be checked as one system.

Related Products

• EPRO /002-000 — Same 8 mm sensor family with a different ordering configuration; cable and mechanical details must be checked before substitution.
• EPRO /002-121 — configuration with different ordering-code characteristics; verify cable and installation requirements.
• EPRO /00R-101 — Reverse-mount configuration; mechanically different from the standard /000-000 arrangement.
• EPRO /010-030 — Different housing/cable configuration; not an automatic replacement.
• EPRO /011-130 — Armored/cable configuration within the family; verify mechanical and cable requirements.
• EPRO /10R-040 — Reverse-mount/3/8-inch-thread family configuration; substantially different mechanical arrangement.
• EPRO PR6424/000-000 — Related eddy-current sensor family with different sensing characteristics; do not substitute solely by connector compatibility.

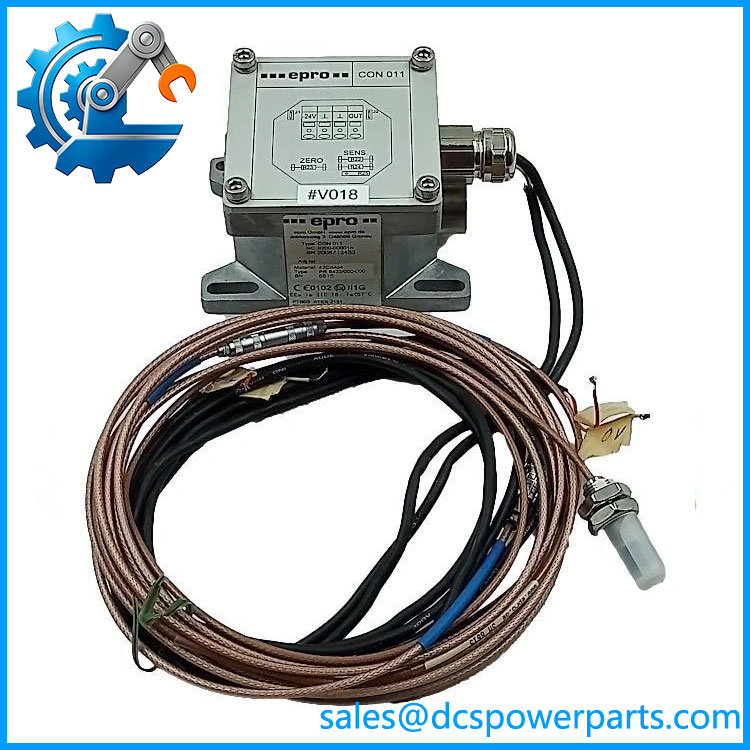

• EPRO CON011 — Converter commonly associated with /000-000 installations; verify the actual installed converter and calibration.
• EPRO CON021 — Compatible EPRO converter used with several configurations; exact probe/converter pairing must be confirmed.
• EPRO CON031 / CON041 — Other EPRO converter variants used with installations; application and configuration determine suitability.

Procurement and Replacement Note

For , purchase verification should include the complete probe code, M10×1 thread, 25 mm sleeve, non-armored construction, cable length, LEMO termination, converter model, and installed monitoring channel configuration.

Do not replace it solely because another has an 8 mm tip. The Emerson ordering matrix makes clear that the family contains multiple mechanical and cable configurations. For a critical turbine or compressor protection loop, the existing probe, extension cable, converter, mounting arrangement, and calibration should be checked against the original installation documentation before commissioning.
