Description
Product Overview

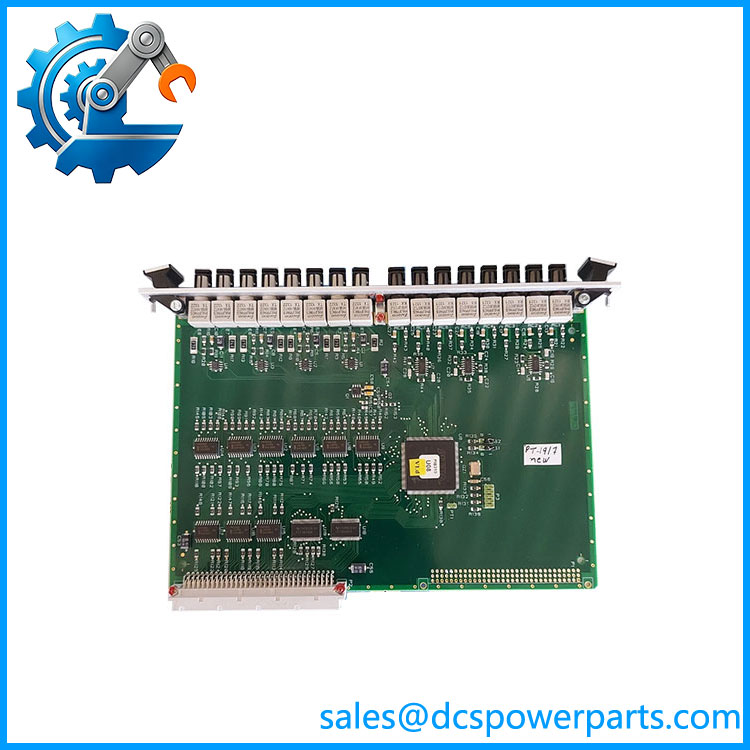

ALSTOM PIB310 3BHB0190 is a dedicated interface PCB designed for ALSTOM industrial automation and power conversion platforms. The board provides the electrical connection between system power supplies, control modules, and field-level interface components within modular control cabinets.
The ALSTOM PIB310 3BHB0190 belongs to the PIB family of interface boards used in legacy ALSTOM/Converteam architectures. These systems are commonly deployed in applications requiring coordinated control of large motors, converters, and industrial electrical equipment.
Typical system architecture:
Cabinet Power Supply → PIB310 3BHB0190 → Control Rack / Interface Modules → Drive Power Electronics
The PIB310 3BHB0190 provides essential interface functions between the control layer and power layer. It supports stable DC power delivery for control electronics while managing signal exchange between different system assemblies.
Typical applications include:
- Medium-voltage drive systems
- ALSPA control platforms
- Industrial converter cabinets
- Marine propulsion control equipment
- Power generation auxiliary systems
- Heavy industrial automation equipment
The PIB310 is not a standalone PLC CPU or standard remote I/O module. Its operation depends on the host ALSTOM system design, rack configuration, board revision, and connected hardware.
For maintenance engineers supporting legacy ALSTOM systems, the PIB310 is commonly treated as a system-critical spare. Failure symptoms may include:
- Control rack communication loss
- Unexpected controller resets
- Missing module diagnostics
- Unstable 24 VDC control supply
- Interface communication alarms
Before replacing a , confirm the exact PCB marking, hardware revision, connector arrangement, installed rack type, and system documentation. PIB-series boards such as , PIB100G, and PIB102A share a family relationship but are not automatically interchangeable.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ALSTOM / Converteam |
| Model | |
| Part Number | 3BHB0190 |
| Product Type | Power Interface Board |
| Series | PIB Interface Board Series |
| Main Function | Power interface and signal conditioning |
| Input Voltage | 220–230 VAC (configuration dependent) |
| Output Voltage | 24 VDC control supply (variant dependent) |
| Communication Interface | System-dependent backplane communication |
| Signal Processing | Digital/analog interface handling |
| Mounting Type | Rack-mounted PCB module |
| Operating Temperature | -20°C to +70°C |
| Protection Environment | Industrial cabinet environment |
| Application Platform | ALSTOM/Converteam drive and automation systems |
Specifications are based on available ALSTOM 3BHB0190 references.
Main Features and Advantages
PIB310
Power Interface and Distribution Function
The primary role of the ALSTOM 3BHB0190 is managing power and interface functions inside ALSTOM control systems.
Key functions:
- AC/DC power conversion interface
- Control voltage distribution
- Signal routing
- Electrical isolation between system sections
Stable control power is critical because processor cards, communication boards, and I/O modules can malfunction when supply quality deteriorates.
Designed for ALSTOM Drive Control Platforms
The was developed for ALSTOM/Converteam systems where control electronics must communicate reliably with power conversion equipment.
Typical equipment includes:
- MV motor drives
- Converter systems
- Industrial propulsion systems
- Process automation cabinets
Modular Industrial PCB Design
The board follows the modular replacement concept used throughout ALSTOM control architectures.
Maintenance advantages:
- Individual board replacement
- Easier fault isolation
- Reduced cabinet modification requirements
Legacy System Support
Many ALSTOM drive systems remain in operation because complete control replacement requires extensive engineering, testing, and commissioning.
Maintaining spare boards supports:
- Existing production equipment
- Long-life industrial installations
- Critical power conversion assets
Engineering Replacement Considerations
Before installation, verify:
- Complete part number
- PCB revision
- Connector layout
- Rack position
- Power supply ratings
- Connected interface modules
A physically similar PIB board may not operate correctly if the backplane definition or firmware environment differs.
Application Scenarios
Medium Voltage Drive Systems
Applications:
- Large pumps
- Compressors
- Fans
- Industrial motors
Power Generation
Used in:
- Auxiliary drive systems
- Generator control equipment
- Plant automation cabinets
Marine Propulsion
Applications:
- Electric propulsion systems
- Shipboard converter control
Industrial Automation
Used in:
- Process plants
- Heavy manufacturing
- Energy systems
Related Components
| Model | Function |
|---|---|
| PIB102A 3BEB0180 | Communication interface board |
| PIB903 | Rack power interface module |
| PIB1201A 3BEC0067 | Power interface board |
| BGTR8HE 24491276A1004 | VME control rack assembly |
| MV7000 Series | ALSTOM/Converteam medium-voltage drive platform |
Engineer’s Guide: Field Pitfalls
⚠️ Do Not Cross-Replace PIB Family Boards Without Verification
Although , PIB102A, and PIB100G belong to related ALSTOM interface families, their hardware functions and connector definitions may differ.
Always verify:
- Board label
- Part number
- Revision code
- Rack position
⚠️ Check 24 VDC Supply Quality
Common causes of PIB failures:
- Aging capacitors
- Excessive DC ripple
- Voltage spikes
- Cabinet grounding issues
Measure:
- DC voltage level
- Ripple voltage
- Load current
⚠️ Inspect Connected Modules
A failed may be caused by external faults:
- Overloaded downstream modules
- Backplane issues
- Communication cable problems
- Power supply faults
⚠️ Preserve Existing Configuration
Before replacement:
- Record cable connections
- Photograph rack arrangement
- Document alarms
- Save system parameters
⚠️ Refurbished Board Testing Requirements
A proper evaluation should include:
- PCB visual inspection
- Power rail measurement
- Connector inspection
- Communication interface test
- Rack integration test
- Load testing
- Extended operation verification
A board that powers up does not confirm full system compatibility.
Frequently Asked Questions
What is ALSTOM ?
The is a Power Interface Board used in ALSTOM/Converteam industrial drive and automation systems.
What is the part number for ?
The common part number is 3BHB0190.
Is a PLC CPU?
No. It is an interface and power management PCB used inside dedicated industrial control architectures.
Can replace PIB102A?
Not directly. and PIB102A are related ALSTOM PIB-family boards but require compatibility verification before substitution.
What should be checked before replacement?
Verify:
- Model:
- Part number: 3BHB0190
- Hardware revision
- Rack compatibility
- Power configuration
- Connected modules
- System documentation
