Description

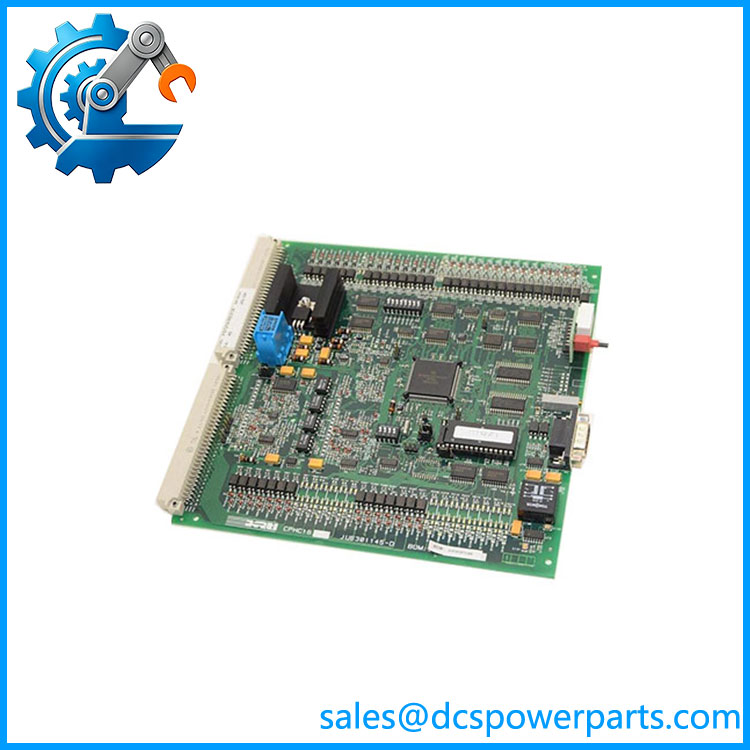

FS0953-REV2D CPHC16-S
The part number FS0953-REV2D CPHC16-S specifies a specialized industrial control, processing, or interface module assembly used within automated industrial systems and proprietary control racks.
Technical Specifications
| Feature | Specification |
| Product Type | Industrial Control / Processor / Interface Module Assembly |
| Hardware Revision | REV2D |
| Sub-Assembly / Series Code | CPHC16-S |
| Operating Voltage | Standard industrial logic levels (typically 24 VDC) |
| Mounting Type | Rack-mount, slot-in module, or panel enclosure |
| Operating Environment | Heavy industrial automation, process control plants, and electrical switchgear |
Product Overview
The FS0953-REV2D CPHC16-S is a component-level electronic assembly designed to manage specific data processing, signal routing, or input/output tasks within an industrial automation architecture. The inclusion of the hardware revision (REV2D) indicates a refined iteration optimized for enhanced stability, noise immunity, and component longevity.
Key Features:
-
Precision Engineering: Built to handle rigorous industrial signal processing requirements with high reliability.
-
Revision Stability: The “REV2D” designation ensures improved hardware performance, addressing legacy operational parameters and improving electrical tolerances.
-
Modular Integration: Designed to integrate smoothly into dedicated multi-slot industrial chassis or communication backplanes.
FS0953-REV2D
Product Overview
FS0953-REV2D CPHC16-S is a core CPU processor board for Woodward MicroNet / MicroNet Plus turbine governing & safety control racks. CPHC16-S denotes the board model, and FS0953-REV2D is its drawing revision designation.
It executes real-time speed governing algorithms, unit sequence control, protection interlock logic and data communication for gas turbine, steam turbine and engine-driven generator control systems. It communicates with I/O modules via rack backplane and interfaces with upper DCS, HMI and monitoring systems. Widely deployed in combined-cycle plants, thermal power stations and oil & gas compressor stations as critical spare hardware for turbine control cabinets.
Core Functional Features
✅ High-speed real-time processor running Woodward MicroNet control firmware
✅ Responsible for closed-loop speed regulation, load control, overspeed protection and safety trip logic
✅ Internal backplane bus for high-speed data exchange with all rack I/O assemblies
✅ Multiple external communication ports to support Modbus, serial links and network communication
✅ Built-in continuous hardware self-diagnosis for memory, bus circuits and logic execution faults
✅ Front panel LED indicators to display run status, communication activity and fault alarms
✅ Revision REV2D hardware with optimized circuit stability and enhanced EMI suppression
✅ Standard single-slot plug-in PCB design for MicroNet rack, convenient replacement during unit overhaul
✅ Optional PCB conformal coating to withstand vibration, temperature cycling, dust and humidity inside turbine cabinets
✅ Fully compatible with MicroNet Plus series governing systems, matching Woodward 505, 509 control architectures
