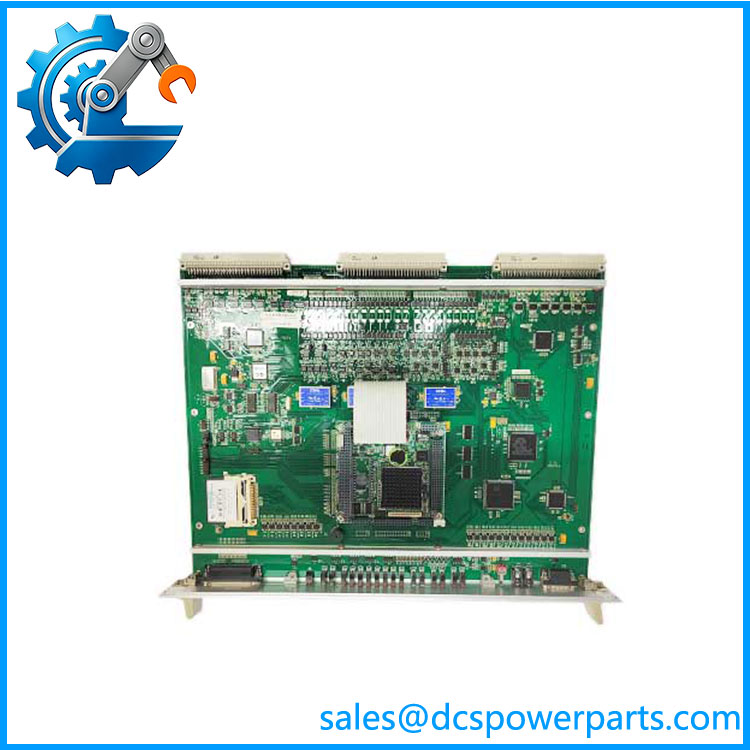

The ALSTOM SDK-C0167-1 12004-08-01 SBS07M076B is a legacy ALSTOM control-system electronics assembly identified by three closely related designations: SDK-C0167-1, 12004-08-01, and SBS07M076B. These identifiers appear together in legacy ALSTOM spare-part references and are associated with the company’s rack-based industrial control hardware. The board belongs to an architecture in which individual electronics modules work through a common rack and backplane rather than operating as isolated PLC components.
For maintenance engineers, the ALSTOM SDK-C0167-1 should therefore be evaluated as a system-dependent board. The physical VME-style form factor alone does not establish interchangeability. Slot assignment, backplane connectivity, adjacent modules, system revision, and the board’s exact role in the cabinet all matter. This is particularly relevant when supporting older ALSTOM installations where original documentation may use the SBS designation while procurement records use the SDK or 12004 part number.
The ALSTOM 12004-08-01 SBS07M076B is also commonly listed alongside other 12004-series boards used within the same legacy architecture. That makes the part-number family useful for cross-reference work, but it does not mean neighboring 12004-series boards can be substituted. Public technical records do not provide enough consistent evidence to publish a definitive voltage, current, channel count, or communication protocol for this exact assembly. For a critical replacement, the original board label, connector layout, rack position, and cabinet drawings should be treated as the final identification criteria.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ALSTOM |
| Model | SDK-C0167-1 |
| Part Number | 12004-08-01 |
| Board Designation | SBS07M076B |
| Product Type | Control / Interface Board |
| Product Family | 12004-series legacy control hardware |
| System Architecture | Rack-based / VME-associated control system |
| Backplane Interface | System-specific |
| Installation | Compatible ALSTOM rack/cabinet |
| Field Interface | Configuration dependent |
| Communication Protocol | Not reliably confirmed |
| Input Voltage | Not reliably confirmed |
| Output Voltage | Not reliably confirmed |
| I/O Channel Count | Not reliably confirmed |
| Operating Temperature | Not reliably confirmed |
| Dimensions | Verify against original board |
| Hardware Revision | Verify actual PCB marking |
| Firmware | System dependent |
| Condition | New Surplus, subject to inspection and functional testing |
Technical caution: I would not assign a generic 24 VDC, 5 VDC, digital I/O, or Ethernet specification to this board without primary documentation. Several legacy ALSTOM product records reuse similar descriptions across different 12004-series assemblies, creating a real risk of cross-contamination between product specifications.
