ALSTOM I/OBUS2 12004-103-01 VER:V1.2.0 I/O Bus Interface Module Product Description
Product Overview
ALSTOM I/OBUS2 12004-103-01 VER:V1.2.0 is a high-reliability I/O bus interface module designed for ALSTOM railway signaling, train control, and industrial automation systems. As a key communication component within the ALSTOM 12004 series modular control architecture, ALSTOM I/OBUS2 12004-103-01 VER:V1.2.0 provides the communication bridge between central processing units, distributed I/O modules, and field control devices. The module enables deterministic data exchange between system components, ensuring accurate transmission of control commands and equipment status information in safety-critical applications.
The ALSTOM I/OBUS2 12004-103-01 VER:V1.2.0 is designed to manage internal I/O communication networks by providing bus management, data routing, signal synchronization, and interface conversion functions. It receives data from modules such as digital input units, digital output units, and specialized control interfaces, then transfers processed information to the main controller through the ALSTOM communication architecture. This communication capability allows modules including ALSTOM DSI1817 TRVC062335000 CP00003934, ALSTOM POS1846 TRVC062333000 CP00000310, and other distributed components to operate as an integrated automation system.
As part of ALSTOM’s railway automation and signaling platform, ALSTOM I/OBUS2 12004-103-01 VER:V1.2.0 is widely used in train control systems, railway interlocking equipment, metro automation platforms, and industrial control installations. Its modular design, reliable communication performance, and compatibility with existing ALSTOM cabinets make it an important component for system maintenance, expansion, and lifecycle extension. By ensuring stable communication between control modules, ALSTOM I/OBUS2 12004-103-01 VER:V1.2.0 improves system availability, simplifies troubleshooting, and supports long-term operation of critical transportation infrastructure.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | I/OBUS2 12004-103-01 VER:V1.2.0 |
| Manufacturer | ALSTOM |
| Product Type | I/O Bus Interface Module / Communication Gateway Module |
| Product Series | ALSTOM 12004 Railway Control System Series |
| Main Function | Distributed I/O communication and data exchange management |
| Communication Interface | ALSTOM internal I/O bus interface |
| Supported Communication | MVB, Ethernet/IP, CANopen (system dependent) |
| Data Transfer Rate | Up to 100 Mbps full-duplex (configuration dependent) |
| Power Supply | 24 VDC system supply / backplane power |
| Isolation Voltage | Approx. 1500 VAC chassis-to-bus isolation |
| Installation Method | Modular rack plug-in installation |
| Diagnostic Function | Communication status monitoring and fault indication |
| Operating Temperature | -40°C to +85°C (railway application dependent) |
| Safety Level | SIL-related railway safety applications (system dependent) |
| Application Field | Railway signaling, train control, industrial automation |
Main Features and Advantages
High-performance I/O communication management:
The primary function of ALSTOM I/OBUS2 12004-103-01 VER:V1.2.0 is to provide reliable communication between distributed modules within an ALSTOM control system. It manages data exchange between processors, I/O modules, and field interfaces, ensuring that control commands and feedback signals are transmitted accurately and efficiently.
Deterministic real-time data transmission:
Railway control systems require predictable communication behavior with minimal delay. ALSTOM I/OBUS2 12004-103-01 VER:V1.2.0 is designed to support deterministic data exchange, helping maintain synchronization between different control modules. This capability is particularly important for signaling, interlocking, and train control applications where timing accuracy directly affects system safety.
Advanced protocol interface capability:
ALSTOM I/OBUS2 12004-103-01 VER:V1.2.0 provides a flexible communication interface between different system layers. It supports integration of multiple automation components and enables efficient communication between the central controller and distributed modules. This improves system scalability and simplifies engineering design.
Reliable electrical isolation:
Industrial and railway environments often contain strong electrical interference caused by traction equipment, switching devices, and long-distance wiring. ALSTOM I/OBUS2 12004-103-01 VER:V1.2.0 incorporates electrical isolation technology to improve electromagnetic compatibility and protect sensitive control electronics from field disturbances.

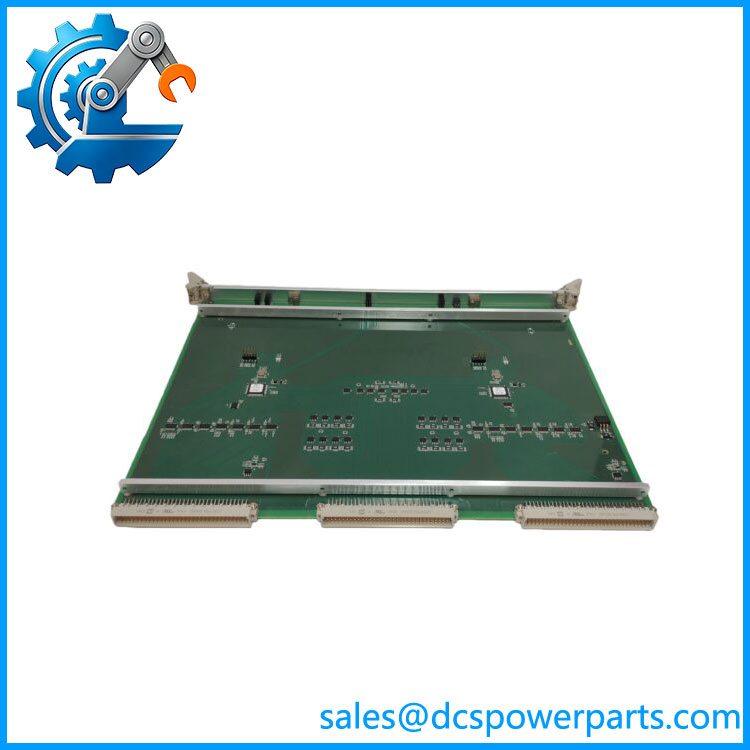

IOBUS2
Modular and maintenance-friendly design:
The plug-in architecture of ALSTOM I/OBUS2 12004-103-01 VER:V1.2.0 allows fast installation and replacement within ALSTOM control racks. Maintenance personnel can replace communication modules efficiently without major system modifications, reducing service time and operational interruptions.
System diagnostic capability:
ALSTOM I/OBUS2 12004-103-01 VER:V1.2.0 provides communication monitoring and status indication functions, allowing engineers to quickly identify bus faults, communication interruptions, or abnormal operating conditions. This improves troubleshooting efficiency and supports preventive maintenance strategies.
Long-term compatibility and lifecycle support:
Many railway operators continue using ALSTOM control platforms because of their proven reliability and long service life. ALSTOM I/OBUS2 12004-103-01 VER:V1.2.0 provides an effective replacement and expansion solution for existing systems, helping users maintain operational continuity while reducing modernization costs.
Application Areas
Railway Signaling Systems:
ALSTOM I/OBUS2 12004-103-01 VER:V1.2.0 is widely applied in railway signaling systems where reliable communication between controllers and field modules is required. It supports data exchange between signaling processors, I/O modules, and trackside equipment to maintain safe railway operation.
Train Control and Management Systems:
Modern railway vehicles depend on distributed electronic systems for traction control, passenger information, braking supervision, and equipment monitoring. ALSTOM I/OBUS2 12004-103-01 VER:V1.2.0 provides the communication infrastructure required for coordinating multiple electronic control units.
Metro and Urban Transit Automation:
Metro systems require continuous communication between station equipment, signaling controllers, and monitoring devices. ALSTOM I/OBUS2 12004-103-01 VER:V1.2.0 helps maintain stable communication networks in urban rail automation environments.
Railway Interlocking Applications:
In interlocking systems, accurate information exchange between processing modules and field interfaces is essential. ALSTOM I/OBUS2 12004-103-01 VER:V1.2.0 ensures reliable communication between control processors and safety-related I/O components.
Industrial Automation Networks:
Beyond railway applications, ALSTOM I/OBUS2 12004-103-01 VER:V1.2.0 can be used in specialized industrial control systems requiring modular communication interfaces, distributed I/O management, and reliable data transmission.
Railway Retrofit and Maintenance Projects:
For existing ALSTOM installations, ALSTOM I/OBUS2 12004-103-01 VER:V1.2.0 serves as an important spare and replacement module. It allows operators to restore communication functions while preserving the original system architecture.
Related Products
- ALSTOM CMP1838 TRVCO62345000 CP00005202 – Central processing module responsible for system logic execution and control coordination.
- ALSTOM DSI1817 TRVC062335000 CP00003934 – Digital signal interface module for field signal acquisition.
- ALSTOM POS1846 TRVC062333000 CP00000310 – Position monitoring and control module used in railway equipment management.
- ALSTOM VPS 12004-102-03 V1.0.0 – Power supply module providing stable system power.
- ALSTOM VOOB8-B 12004-106-04 VER:V1.0.0 – Digital output module for external device control.
- ALSTOM VIIB16-C 12011-105-00 V1.0.0 – Digital input/output interface module.
- ALSTOM I/OBE2 12004-104-00 V1.0.0 – Distributed I/O expansion module.
- ALSTOM I/OBUS3 12004-105-02 – Higher-performance I/O bus interface upgrade model.
