Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | MTL Instruments / Eaton |
| Model | 8922-RB-IS |
| Product Type | Railbus Isolator |
| System Platform | MTL8000 / PAC8000 I/O System |
| Main Function | Galvanic isolation between Railbus sections |
| Bus Side 1 | Safe Area Railbus (2/2) |
| Bus Side 2 | Intrinsically Safe Railbus (2/1) |
| Isolation Method | Galvanic isolation using transformers and opto-isolators |
| Safe Area Railbus Current | 50 mA maximum @ 12 VDC |
| IS Railbus Current | 60 mA maximum @ 12 VDC |
| Maximum Power Dissipation | 1.2 W |
| Safe Area Voltage Rating | Um = 250 V |
| IS Railbus Voltage Rating | Un = 18 V |
| Node Capacity | Supports 32-slot or 64-slot Railbus configurations |
| Mounting | DIN rail/panel mounting through carrier module |
| Dimensions | Approx. 110 × 160 × 42 mm |
| Weight | Approx. 345 g |
| Hazardous Area Approval | Zone 2 IIC T4 / Class I Division 2 applications |
| Application | Intrinsically safe remote I/O systems |
Product Introduction

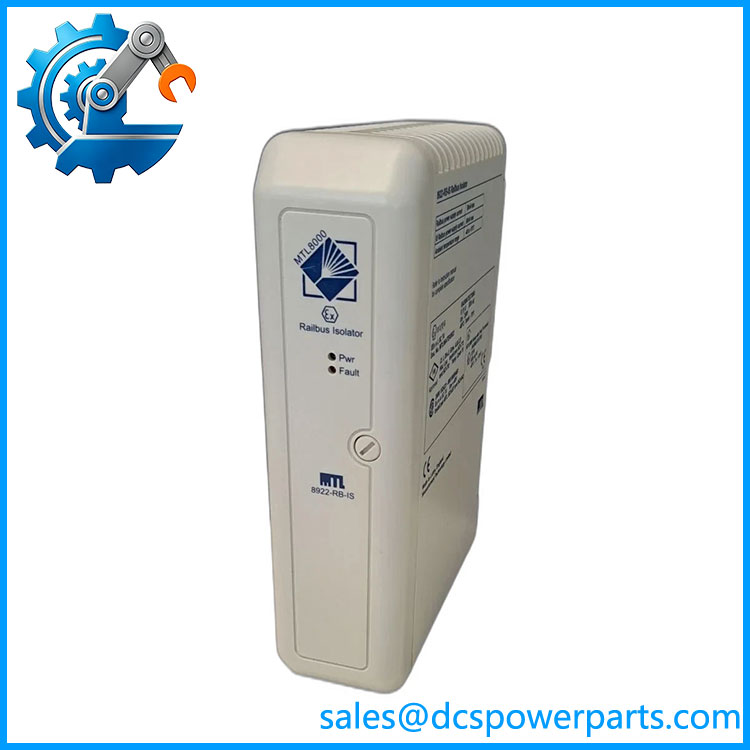

MTL 8922-RB-IS Overview
The MTL 8922-RB-IS is a Railbus isolator module designed for MTL8000 and PAC8000 distributed I/O architectures where intrinsically safe field circuits must be separated from the standard control-side bus. It provides the isolation barrier between the safe-area Railbus network and the intrinsically safe Railbus section connected to hazardous-area I/O modules.
The MTL 8922-RB-IS uses galvanic isolation technology to prevent fault voltages from propagating between the control system side and the IS field wiring side. The module incorporates isolation transformers and opto-isolation components to maintain electrical separation while allowing Railbus communication signals to pass between system sections.
The MTL 8922-RB-IS is required in system configurations using MTL8000 2/1 intrinsically safe I/O modules. It creates the required boundary between conventional automation equipment and field devices installed in hazardous locations. Typical field devices connected through the IS side include switches, sensors, transmitters, and other low-energy instrumentation installed in classified areas.
The MTL 8922-RB-IS is not an I/O processing module and does not execute control logic. Its purpose is maintaining the safety architecture of the remote I/O system by controlling energy transfer and protecting IS field circuits from unsafe voltage conditions.
When replacing an MTL 8922-RB-IS, engineers should verify the Railbus topology, carrier type, installed I/O module family, hazardous-area classification, and system power arrangement. The isolator must match the complete MTL8000/PAC8000 architecture to maintain the intended intrinsic safety design.
- 8922-RB-IS
Application Scenarios & Field Considerations
Engineering Pain Point
A hazardous-area remote I/O node reports communication loss, unexpected module resets, or loss of IS field device power. The isolator may be suspected, but problems can also originate from Railbus wiring, carrier modules, power supplies, or incorrect node configuration.
Recommended troubleshooting steps:
- Check Railbus power availability
- Verify isolator status
- Inspect carrier connections
- Confirm 2/2 and 2/1 side installation
- Review I/O node addressing
- Check hazardous-area wiring conditions
The MTL 8922-RB-IS provides the isolation boundary, but overall system reliability depends on the complete remote I/O installation.
Typical Applications
Oil & Gas Facilities
Used for:
- Hazardous-area instrument monitoring
- Remote valve feedback
- Process shutdown field signals
- Tank farm instrumentation
Chemical Processing Plants
Applied for:
- Explosion-risk process areas
- Remote sensor networks
- Intrinsically safe field connections
Pharmaceutical Production
Used for:
- Classified production zones
- Clean process monitoring
- Remote instrumentation systems
Industrial Safety Systems
Applied for:
- SIS field interfaces
- Fire and gas monitoring
- Critical alarm inputs
Technical Pitfalls to Avoid
1. Verify Railbus Architecture
Before replacement, confirm:
- 2/2 safe-area side connection
- 2/1 IS side connection
- Carrier model
- Node configuration
Incorrect placement can compromise the intended isolation boundary.
2. Check Hazardous Area Requirements
Verify:
- Zone classification
- Intrinsic safety certification
- Field device compatibility
- Cabinet installation location
The isolator is part of the hazardous-area protection concept.
3. Inspect Railbus Connections
Common issues include:
- Loose carrier connections
- Damaged connectors
- Incorrect module orientation
- Power distribution faults
4. Confirm Power Supply Capacity
Review:
- Railbus current demand
- Number of connected I/O modules
- 8920 power supply configuration
- Redundancy requirements
The isolator draws power from both sides of the galvanic interface.
