Emerson 8121-DI-DC | 16-Channel 24VDC Discrete Input | PAC8000 I/O
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson Automation / MTL |
| Model | 8121-DI-DC |
| Product Family | I/O |
| Module Type | Discrete Input |
| Number of Channels | 16 |
| Nominal Field Signal | 24 VDC |
| Input Configuration | Non-isolated, module-powered |
| Application | Dry-contact switch inputs |
| OFF Current | < 0.3 mA |
| ON Current | > 1.2 mA |
| Wetting Current | 2.8 mA typical |
| Minimum Pulse Width | 5 ms |
| Pulse Counting | Enable/Disable |
| Maximum Pulse Frequency | 100 Hz in no-debounce pulse-counting mode |
| Input Filter | Fast, slow, or user-defined |
| User-Defined Filter | 0–512 ms in 2 ms increments |
| Latch Function | Enable/Disable |
| Latch Polarity | High or low |
| I/O Response Time | 5 ms maximum, field event to new Railbus data |
| Channel-to-Railbus Isolation | 250 VAC |
| Railbus 12 V Current | 90 mA typical / 135 mA maximum |
| Bussed Field Power | 60 mA at 18–30 VDC |
| Module Width | 42 mm |
| Weight | 210 g |
| Module Key Code | E1 |
The published specification identifies the 8121-DI-DC as a 16-channel 24 VDC non-isolated, module-powered discrete input module. It provides 24 VDC on the input high side, with returns commoned internally, and requires bussed field power.
Product Introduction
The Emerson 8121-DI-DC is a 16-channel discrete input module for the remote I/O platform. It is designed primarily for collecting dry-contact switch signals and other suitable 24 VDC discrete states, then making those states available through the internal Railbus. The module is module-powered rather than an isolated sinking input design, which is an important wiring distinction when replacing existing hardware.
The Emerson 8121-DI-DC also provides configurable input filtering, latching, and pulse-counting functions. Its 5 ms maximum field-event-to-Railbus response specification makes it suitable for ordinary discrete status acquisition as well as applications where pulse detection is required within the module’s documented operating limits.

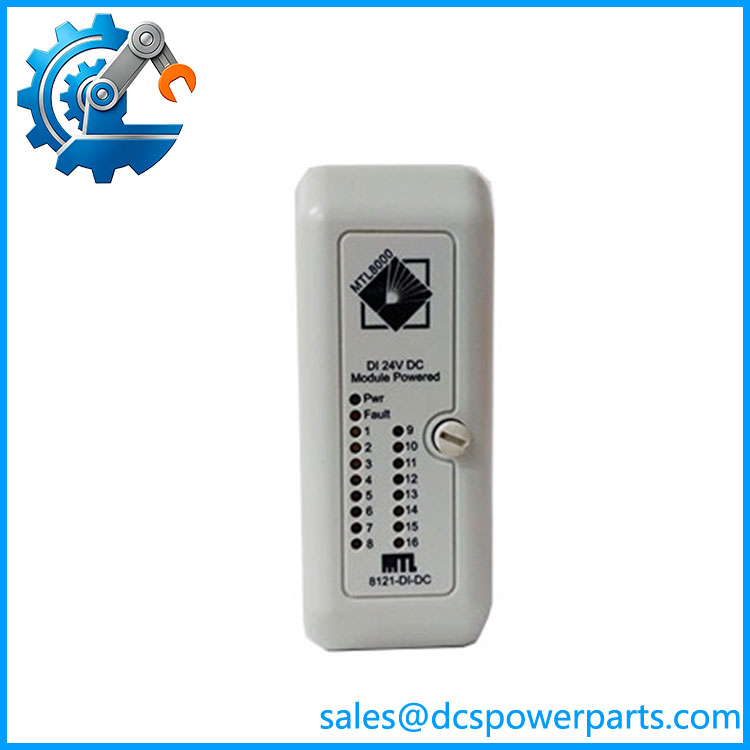

8121-DI-DC
Application Scenarios & Field Pitfalls — The Engineer’s Perspective
Engineering Pain Point
A common mistake when replacing I/O is to compare modules only by channel count and nominal voltage. The 8121-DI-DC and 8122-DI-DC, for example, are both 16-channel 24 VDC input modules, but the 8121 is non-isolated and module-powered, while the 8122 is an isolated sinking-input design. Substituting one for the other without checking the field wiring can create an immediate compatibility problem.
Typical Applications
1. Discrete status monitoring
The module can monitor dry-contact devices such as auxiliary contacts, limit switches, pushbuttons, and relay contacts within the supported input characteristics.
2. remote I/O
The module installs within the modular I/O architecture, where carriers provide the physical and electrical backbone for the Railbus, I/O modules, field terminals, and associated interface hardware.
3. Pulse counting
The 8121-DI-DC includes a configurable pulse-counting function. The published specification permits up to 100 Hz in no-debounce mode, with a minimum detected pulse width of 5 ms.
4. Industrial process and machine status collection
Its 16-channel density makes it useful for collecting multiple binary equipment states within a remote I/O station.
Technical Pitfalls
Verify the input architecture.
The 8121-DI-DC is non-isolated between input channels, with input returns commoned internally. Do not assume every field circuit can be wired independently simply because the module has 16 terminals.
Check field power separately from Railbus power.
The module uses Railbus power and also requires 24 VDC bussed field power. A field-power problem can therefore appear as an input-acquisition problem even when the Railbus-side module power is present.
Do not confuse it with 8122-DI-DC.
The 8122 is specified as a 16-channel, 24 VDC isolated sinking input, whereas the 8121 is non-isolated and module-powered. This is one of the most important compatibility checks when sourcing a replacement.
Check the field terminal.
The architecture uses dedicated field terminals that attach to the carrier. The published documentation identifies 8617-FT-NI as a compatible field terminal for the 8121-DI-DC.
Account for filtering when troubleshooting pulses.
Input filtering is configurable from fast/slow presets or a user-defined value from 0–512 ms. A pulse signal that works electrically but disappears from the control application may be affected by filter configuration rather than by a failed input channel.
Check module keying.
The documented module key code is E1. uses mechanical keying to help prevent incorrect module installation, so the carrier and field-terminal arrangement should be checked during replacement.
Related Products
- Emerson 8122-DI-DC — 16-channel, 24 VDC isolated sinking discrete input; the most important comparison when selecting a replacement.
- Emerson 8125-DI-DC — 32-channel, 24 VDC non-isolated, module-powered discrete input.
- Emerson 8127-DI-SE — 32-channel Sequence of Events module.
- Emerson 8109-DI-DC — 8-channel, 24 VDC isolated sinking input.
- Emerson 8110-DI-DC — 8-channel, 24 VDC non-isolated, module-powered input.
- Emerson 8140-DI-AC — 16-channel, 115 VAC block-isolated sinking input.
- Emerson 8142-DO-DC — 16-channel DC discrete output module.
- Emerson 8132-AI-UN — 8-channel isolated universal analog input.
- Emerson 8617-FT-NI — compatible field-terminal option for the 8121-DI-DC.
Procurement Note
When purchasing an 8121-DI-DC, match the exact catalog number rather than sourcing by the generic description “16-channel 24 VDC DI.” Confirm the non-isolated/module-powered architecture, E1 key code, compatible field terminal, carrier configuration, and required 24 VDC bussed field power.
For a used or surplus spare, inspect the terminal interface, connector condition, housing, module keying, channel-status indicators, and evidence of field overvoltage. A practical bench test should exercise representative dry-contact inputs across multiple channels and verify that the status reaches the Railbus correctly.
Engineering classification: Emerson / MTL 8121-DI-DC — 16-channel, 24 VDC, non-isolated, module-powered discrete input module.
