Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Schneider Electric |
| Model | 140CPU67060 |
| Product Type | Quantum PLC CPU Processor Module |
| Series | Modicon Quantum |
| Processor Type | High-performance CPU |
| Programming Software | Unity Pro / EcoStruxure Control Expert |
| User Memory | Up to 4 MB RAM (application dependent) |
| Flash Memory | Non-volatile program storage |
| Ethernet Interface | Integrated Ethernet communication |
| Ethernet Protocols | Modbus TCP/IP, Ethernet TCP/IP |
| Serial Communication | Modbus RTU / ASCII via Quantum communication modules |
| Backplane Interface | Quantum local rack bus |
| I/O Capacity | Supports large Quantum I/O configurations |
| Hot Standby Support | Supported with compatible Quantum redundancy architecture |
| Mounting | Quantum rack backplane |
| Operating Temperature | 0°C to +60°C |
| Application | Process control, infrastructure automation, large PLC systems |
Product Introduction
Schneider Electric 140CPU67060 Overview
The Schneider Electric 140CPU67060 is a high-performance CPU module from the Modicon Quantum PLC platform, designed for demanding industrial automation applications requiring advanced processing capability, large I/O capacity, and reliable communication performance. It serves as the central processing unit of Quantum control systems, executing application logic, managing I/O updates, and coordinating communication with field devices and supervisory systems.
The Schneider Electric 140CPU67060 is programmed using Unity Pro (now EcoStruxure Control Expert) engineering software and supports structured PLC applications commonly found in process industries, power systems, water treatment facilities, and large manufacturing installations. Its architecture allows integration with Quantum local I/O racks, remote I/O networks, and industrial communication systems.
The Modicon Quantum 140CPU67060 is frequently used in long-life automation installations where system stability and migration compatibility are important. It is not simply a logic processor replacement; engineers must verify firmware version, application project compatibility, communication configuration, and existing Quantum hardware layout before installation.

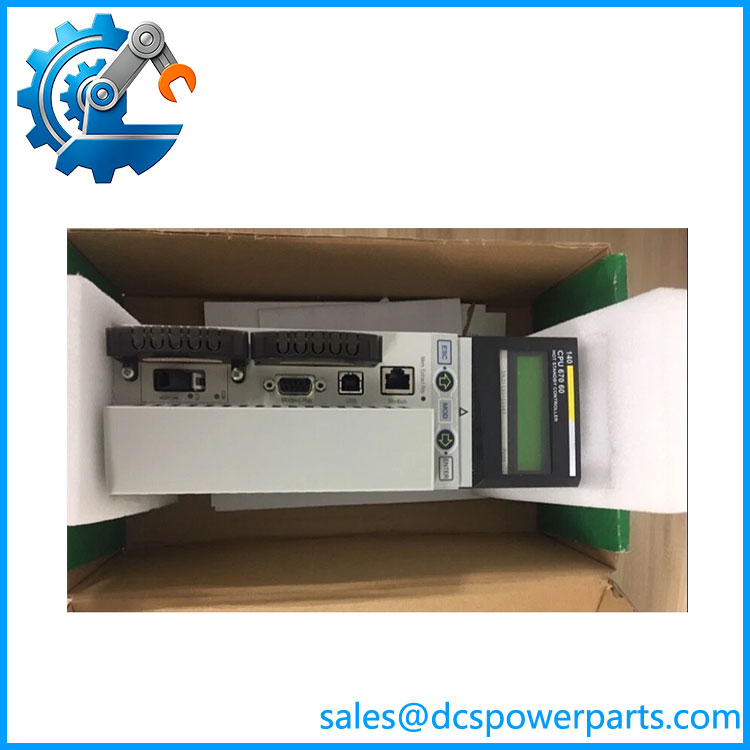

140CPU67060
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A plant control system experiences CPU diagnostics, communication interruptions, or processing delays. The PLC rack remains powered, but production equipment cannot operate normally.
The first assumption is often CPU failure. However, troubleshooting should include:
- Application program integrity
- Rack backplane communication
- Power supply stability
- Ethernet network health
- Remote I/O communication status
- Firmware compatibility
The 140CPU67060 is the control center, but many PLC faults originate from connected devices or configuration issues.
Typical Applications
Process Industries
Used in:
- Chemical plants
- Refineries
- Water treatment facilities
- Pharmaceutical production systems
Power and Utility Systems
Applied for:
- Substation automation
- Auxiliary control systems
- Energy management applications
Manufacturing Automation
Used in:
- Large production lines
- Material handling systems
- Automated assembly equipment
Infrastructure Control
Applied in:
- Transportation systems
- Building automation projects
- Large-scale monitoring applications
Technical Pitfalls to Avoid
1. Verify Firmware Compatibility
Quantum CPUs have firmware-dependent features. Confirm:
- CPU firmware revision
- Unity Pro / Control Expert version
- Existing application backup
A replacement CPU with different firmware may require application conversion.
2. Confirm Quantum Rack Configuration
Check:
- Rack addressing
- Power supply capacity
- Communication modules
- Remote I/O adapters
A CPU replacement must match the complete Quantum hardware architecture.
3. Backup Application and Configuration
Before replacement, save:
- PLC application project
- Communication settings
- I/O mapping
- Network parameters
The CPU hardware alone does not contain the complete system configuration.
4. Check Network Dependencies
For Ethernet-based systems, verify:
- IP addressing
- Modbus TCP configuration
- SCADA communication settings
- Managed switch configuration
