Description
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 140CPU65160 |
| Manufacturer | Schneider Electric |
| Product Family | Modicon Quantum |
| CPU Type | 984-685E |
| Product Type | CPU / Processor Module |
| Application Memory | 1024K registers |
| Discrete I/O Capacity | 7168 discrete I/O |
| Local I/O | 7168 |
| Floating-Point Registers | 16K |
| Hot Standby | Yes |
| Programming Port | Modbus RS-232/RS-485 |
| Network Port | Modbus Plus |
| USB Port | USB programming port |
| Ethernet | Via applicable Quantum communication modules |
| Battery Backup | System-specific battery arrangement |
| Mounting | Quantum rack |
| Installation | Quantum backplane |
| Status Display | Front-panel LED diagnostics |
| Condition | New Surplus / Used / Tested Refurbished |
Schneider Electric identifies the 140CPU65160 as a Quantum 984-685E CPU with 1024K registers, 7168 discrete I/O, 7168 local I/O, and 16K floating-point registers. The product page also identifies Modbus Plus and Modbus RS-232/RS-485 connectivity. (se.com)
Schneider lists the module as a Hot Standby CPU, making it particularly relevant to redundant Quantum installations where two processors operate as a primary/standby pair.
Application Scenarios & Pain Points
A Quantum CPU can be perfectly healthy electrically and still be unsuitable for a particular replacement job. Firmware, application memory, network configuration, and the Hot Standby relationship all matter.
- Process control: The 140CPU65160 provides central PLC processing for Quantum-based automation systems where deterministic application execution and substantial I/O capacity are required.
- Hot Standby installations: Its redundant architecture makes it suitable for applications where loss of the primary controller would create unacceptable process interruption.
- Large legacy PLC systems: With 1024K registers and up to 7168 discrete I/O, the CPU fits larger Quantum control applications rather than small standalone machines.
- Legacy PLC replacement: A tested 140CPU65160 can be valuable when maintaining an installed Quantum system and avoiding an immediate platform migration.
Field note: Before replacing a Hot Standby CPU, capture the status of both processors. If the standby CPU is already healthy, the safest intervention may be different from replacing an active processor directly.

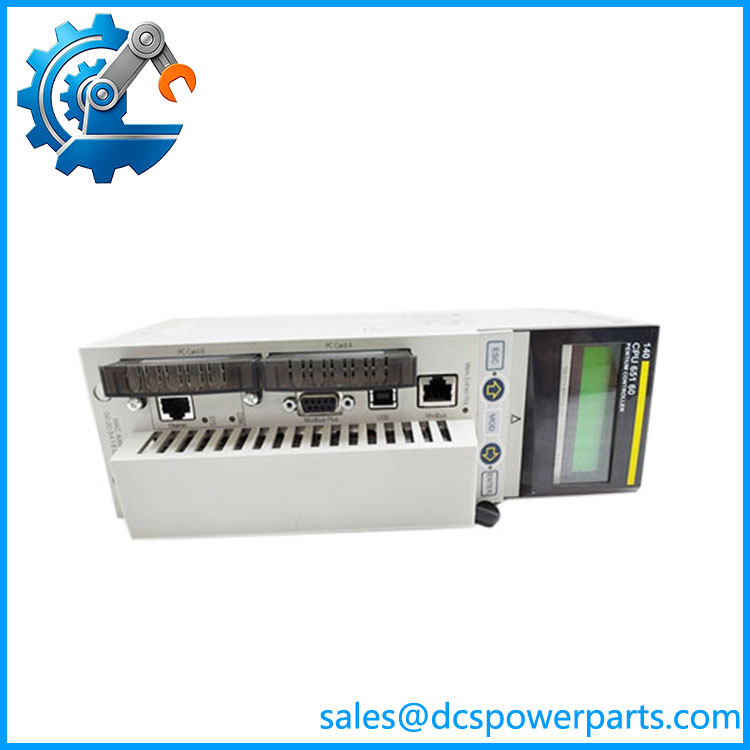

140CPU65160
Related Products
- Schneider Electric 140CPU65150 — A closely related Quantum CPU option. It belongs to the same CPU family, but the exact Hot Standby and memory specifications should be checked against the existing application before substitution.
- Schneider Electric 140CPU67160 — A higher-performance Quantum processor family member. It can be considered for certain modernization projects, but migration compatibility must be evaluated rather than assumed.
- Schneider Electric 140CPU43412A — Another Quantum CPU reference used in legacy PLC applications. Its processing and memory architecture differ from the 140CPU65160.
- Schneider Electric 140CPU53414A — A Quantum CPU used in older control architectures. It may appear in replacement inventories, but application and firmware compatibility require verification.
- Schneider Electric 140CRP93200 — Quantum remote I/O processor/interface hardware. It supports remote I/O architecture and complements a CPU rather than replacing it.
- Schneider Electric 140CRP93100 — Quantum remote I/O head/interface module. It serves a different role from the central 140CPU65160 processor.
- Schneider Electric 140NOE77101 — Quantum Ethernet communication module. It can provide Ethernet connectivity where the CPU’s native communication interfaces do not meet the application requirement.
- Schneider Electric 140NOE77111 — Quantum Ethernet communication module with expanded network functions. It is complementary communications hardware rather than a CPU substitute.
- Schneider Electric 140XBE10000 — Quantum backplane/expansion interface hardware used to extend rack architecture. It supports the system around the CPU rather than performing PLC processing.
The Engineer’s Guide: Field Pitfalls to Avoid
⚠️ Firmware mismatch can be more serious than a model-number mismatch.
Two 140CPU65160 units may have compatible hardware but different executive/firmware revisions that affect application behavior or Hot Standby operation.
How to avoid it: Record the running executive version, application revision, configuration, and CPU status before removing the original processor. Do not erase or initialize a replacement until the recovery procedure is understood.
⚠️ Hot Standby pairs must be treated as a system.
Replacing one CPU without checking the primary/standby state can cause an unnecessary switchover or loss of redundancy.
How to avoid it: Document which CPU is primary, which is standby, synchronization status, and the active fault indications before intervention.
⚠️ Do not overlook the battery and retained application data.
Legacy Quantum CPUs depend on retained memory arrangements. A CPU that has been stored for years may not have the same battery condition as one removed recently from service.
How to avoid it: Check battery status and application retention before powering or initializing a stored spare. Preserve the original application whenever possible.
Frequently Asked Questions (FAQ)
What is Schneider Electric 140CPU65160?
140CPU65160 is a Modicon Quantum 984-685E CPU module designed for PLC control applications and Hot Standby configurations. Schneider specifies 1024K registers and up to 7168 discrete/local I/O.
Does 140CPU65160 support Hot Standby?
Yes. Schneider identifies the 140CPU65160 as a Hot Standby CPU, making it suitable for redundant Quantum controller architectures.
How much memory does 140CPU65160 provide?
The Schneider specification identifies 1024K registers and 16K floating-point registers. It also specifies capacity for up to 7168 discrete I/O and 7168 local I/O.
What communication interfaces are available?
The CPU provides Modbus Plus and a Modbus RS-232/RS-485 interface. A USB programming connection is also provided. Exact communication use depends on the Quantum configuration and installed firmware.
Can I replace a 140CPU65160 with another Quantum CPU?
Not automatically. Check:
- CPU family and hardware revision
- Executive/firmware version
- Application memory requirements
- Hot Standby configuration
- I/O architecture
- Modbus Plus configuration
- Installed communication modules
- Programming software compatibility
A physically compatible Quantum CPU can still require application changes.
Can I hot-swap the 140CPU65160?
Do not assume it is safe to remove the CPU while the rack is energized. The correct procedure depends on the Quantum rack architecture and whether the installation is operating in Hot Standby. Follow the site-approved maintenance procedure and establish the process consequence before removal.
