Description
The part number XBTF024510 specifies a Magelis XBT-F Operator Interface Terminal (HMI) manufactured by Schneider Electric (formerly Telemecanique).
Technical Specifications
| Feature | Specification |
| Manufacturer | Schneider Electric / Telemecanique |
| Product Series | Magelis XBT-F Terminal Series |
| Display Type | 10.4-inch TFT Color Display |
| Resolution | 640 × 480 pixels (VGA) |
| Display Colors | 256 colors (expandable up to 65K depending on application version) |
| Input Type | Integrated Keypad with function keys, service keys, and dynamic keys |
| Nominal Voltage | 24 VDC |
| Power Consumption | 35 W max |
| Data Storage / Expansion | PCMCIA slot support (for memory cards, recipe management, and data backup) |
| Communication Protocols | Modbus, Uni-Telway, and various industrial fieldbuses via communication modules |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
Product Overview
The XBTF024510 is a legacy industrial touchscreen/keypad operator interface terminal designed to monitor and control automated industrial processes. Featuring a robust 10.4-inch color screen combined with physical function keys, it allows operators to interact reliably with PLCs, view real-time alarms, manage recipes, and check machine statuses directly on the factory floor.
Key Features:
-
Rugged Physical Keypad Interface: Combines a sharp color display with tactile membrane function keys for precise control, even when operators are wearing industrial gloves.
-
Flexible Connectivity: Equipped with onboard serial interfaces and PCMCIA card slots to support data transfer, program updates, and communication with multiple controller networks.
-
Industrial Durability: Built to withstand standard plant-floor conditions, featuring vibration resistance, reliable 24 VDC power regulation, and panel-mount gasket sealing.
XBTF-024510
XBTF024510
Product Overview

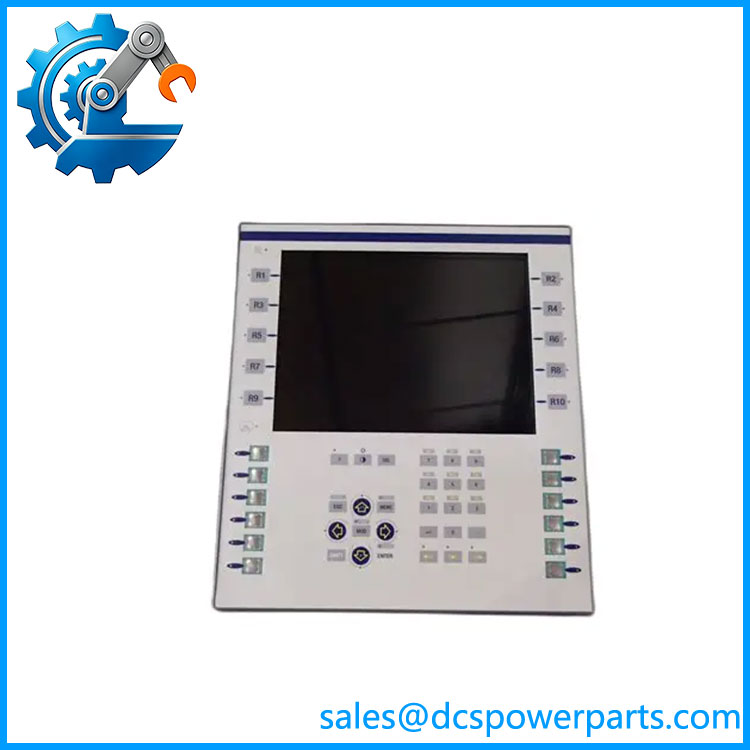

XBTF024510 is a keypad-based industrial HMI within Schneider Magelis XBT-F family. It adopts a 10.4-inch TFT color LCD with 640 × 480 VGA resolution, equipped with comprehensive physical function keys and numeric keypad.
Built for continuous process monitoring and manual operation, it exchanges real-time data with Modicon PLCs, drives and field controllers. Programmed via XBT-L1000 software, it is widely deployed in power plants, water treatment, machinery and petrochemical automation control cabinets.
Core Functional Features
✅ 10.4” TFT color display, VGA 640×480 resolution, supports up to 256 colors
✅ Integrated full physical keypad layout: static function keys, soft keys, numeric & navigation keys, reliable operation under dusty environments
✅ Supports alarm logging, trend curve display, recipe management and multi-screen switching
✅ Multiple built-in communication protocols: Modbus RTU, Uni-Telway; expandable via PCMCIA card
✅ 24 VDC auxiliary power supply, low electromagnetic emission
✅ Front panel rated IP65 for dust and splash resistance; rear terminal area IP20
✅ Panel flush mounting design, standard industrial cutout dimension
✅ Robust hardware construction, suitable for long-term continuous operation inside control rooms
✅ Compatible with Modicon Premium, Quantum, Micro and Twido series PLC systems
