Description

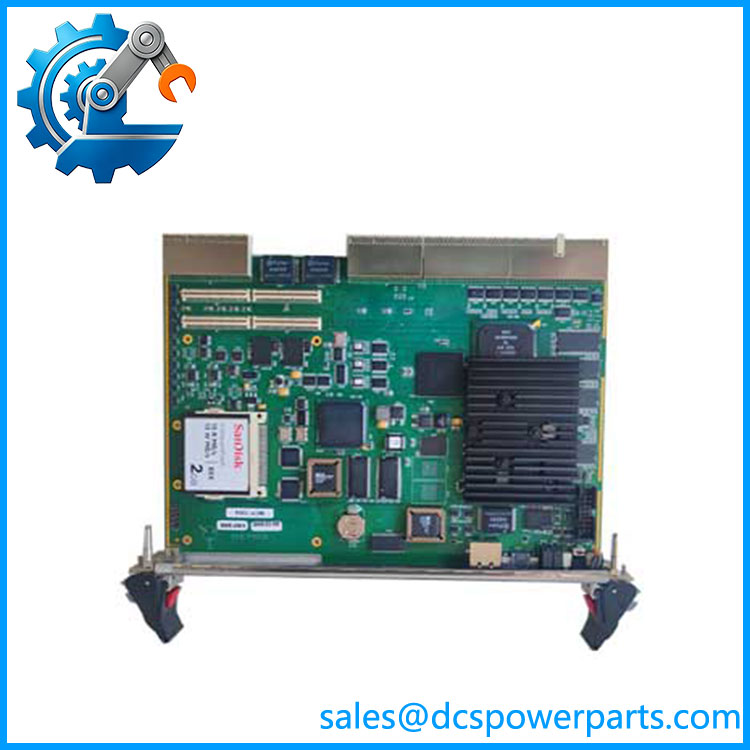

Compressor Controls Corporation (CCC) MCP-1004 Main Processor Module
Continuing the industrial automation equipment sequence, MCP-1004 specifies a high-performance Main Processor Unit (CPU Module) manufactured by Compressor Controls Corporation (CCC).
Key Specifications & Overview
-
Manufacturer: Compressor Controls Corporation (CCC)
-
Product Type: Main Processor / Central Control Board (CPU Module)
-
Processor Clock Speed: 1 GHz (“Extreme Engineering” CPU architecture)
-
Primary Function: Executes real-time control algorithms, logic, and safety management for turbomachinery control systems.
System Role & Applications
Modules like the MCP-1004 serve as the computational core in CCC’s specialized control hardware ecosystem, widely deployed in critical oil & gas, petrochemical, and industrial manufacturing plants. They manage complex, high-speed processes such as:
-
Centrifugal and Axial Compressor Control
-
Steam and Gas Turbine Control
-
Anti-Surge Protection Systems
MCP-1004
Product Overview
MCP-1004 is a Main CPU Processor Module manufactured by Compressor Controls Corporation (CCC, now part of Honeywell), belonging to the XCALIBER 1000 turbomachinery control platform.
It serves as the core computing unit for large compressors, steam turbines and gas turbine control systems. The module executes anti-surge control, load regulation, sequence control and equipment protection algorithms. It communicates with I/O boards, vibration monitoring racks and plant DCS systems via internal bus and external communication ports. It adopts CPCI plug-in architecture and supports hot swap within certified control rack.
Technical Specifications
| Item | Parameter |
|---|---|
| Part Number | MCP-1004 |
| Module Type | Turbomachinery Main Processor Module |
| Manufacturer | Compressor Controls Corporation (CCC) |
| Applicable Platform | XCALIBER 1000 Compressor Control System |
| Form Factor | CPCI single-slot plug-in board |
| Processor | 1 GHz high-performance RISC CPU |
| Memory | Onboard Flash memory + RAM with data backup |
| Communication Interfaces | RJ45 Ethernet port, RS232/RS422 serial port |
| Supported Protocols | Modbus TCP, Modbus RTU, CCC proprietary control protocol |
| Core Functions | Anti-surge control, compressor load regulation, safety interlock logic, fault event logging, upper system data interaction |
| Hot Swap | Supported in matched XCALIBER rack |
| Operating Temperature | 0 ℃ ~ +60 ℃ |
| Ambient Humidity | 5%–95% non-condensing |
| Protection Class | IP20 (cabinet installation) |
| Front Panel Indicators | OK, Fault, Communication TX/RX LED status |
| Engineering Software | CCC certified configuration tool |
| Spare Part Status | Production discontinued; surplus new and refurbished modules available |
Key Features
- Optimized for high-speed anti-surge control of centrifugal compressors, meets millisecond-level response requirements
- Built-in comprehensive hardware self-diagnosis, detecting internal CPU error, memory failure and communication timeout
- Electrical isolation design on communication ports to resist electromagnetic interference in compressor vibration cabinets
- Supports historical fault data storage for post-trip troubleshooting
- Standard CPCI mechanical structure with anti-misplug key design
- Exclusive to CCC XCALIBER 1000 platform; cannot be directly interchanged with other series processor boards without project re-commissioning
- Perfectly matched with CCC I/O modules and Bently Nevada vibration monitoring racks
