Description
Product Overview

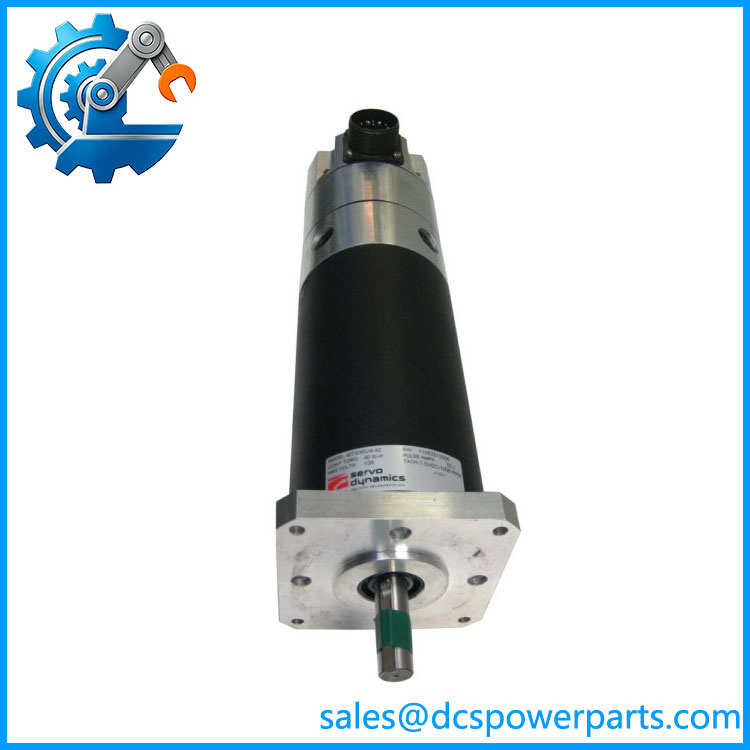

Servo Dynamics MTS30M4-38B is a high-performance brushless AC servo motor designed for precision motion control applications in industrial automation systems. It belongs to the Servo Dynamics MTS (Modular Torque Servo) motor family and is engineered to provide high torque density, fast dynamic response, and accurate positioning performance for demanding automation equipment. The MTS30M4-38B is typically used together with compatible servo amplifiers and motion controllers to create closed-loop servo drive systems for applications requiring precise speed, torque, and position control.
Servo Dynamics MTS30M4-38B integrates a rugged industrial motor design with feedback capability, allowing real-time monitoring of rotor position and motion parameters. The motor uses a four-pole permanent magnet brushless structure, providing smooth rotation characteristics, high efficiency, and reliable operation under continuous industrial workloads. The MTS30M4-38B is especially suitable for older but highly reliable industrial automation platforms where replacement of original servo motors is required while maintaining machine performance.
Servo Dynamics MTS30M4-38B remains a valuable component in legacy CNC machinery, semiconductor equipment, packaging systems, robotics, and precision manufacturing applications. Its combination of compact construction, strong torque output, encoder feedback, and compatibility with industrial servo systems makes MTS30M4-38B an effective solution for machine restoration, spare-part replacement, and automation system maintenance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | MTS30M4-38B |
| Manufacturer | Servo Dynamics (Kollmorgen related product family) |
| Product Type | AC Brushless Servo Motor |
| Series | MTS Modular Torque Servo Series |
| Motor Type | Permanent Magnet Synchronous Servo Motor |
| Frame Size | NEMA 30 servo motor frame |
| Motor Poles | 4 poles |
| Rated Power | Approx. 0.75 kW |
| Rated Torque | Approx. 2.4 Nm |
| Peak Torque | Approx. 7.2 Nm |
| Rated Speed | Approx. 3000 RPM |
| Supply Voltage | Approx. 400 VAC class (system dependent) |
| Feedback Device | Incremental encoder |
| Encoder Resolution | Approx. 1024 PPR (standard configuration) |
| Motor Feedback | Position and speed feedback |
| Cooling Method | Natural cooling |
| Protection Class | Industrial servo motor design |
| Application Type | Precision motion control systems |
MTS30M4-38B
Main Features and Advantages
Servo Dynamics MTS30M4-38B is designed for applications where motion accuracy, response speed, and long-term reliability are essential. As a brushless AC servo motor, MTS30M4-38B eliminates the maintenance requirements associated with traditional brushed motors while providing improved efficiency and operational stability.
High torque performance is one of the key advantages of Servo Dynamics MTS30M4-38B. The permanent magnet rotor design delivers strong torque output in a compact mechanical structure, allowing machines to achieve rapid acceleration and precise movement control. This characteristic makes the motor suitable for applications involving frequent start-stop cycles, positioning operations, and dynamic load changes.
Servo Dynamics MTS30M4-38B provides excellent motion accuracy through integrated encoder feedback. The feedback system allows the servo controller to continuously monitor motor position and speed, enabling closed-loop regulation. This improves positioning repeatability and helps maintain stable operation even under variable mechanical loads.
The compact construction of Servo Dynamics MTS30M4-38B allows installation in equipment where space is limited. Its industrial motor design supports integration into existing machine architectures without requiring major mechanical modifications.
Another important advantage of Servo Dynamics MTS30M4-38B is its compatibility with industrial servo drive systems. When combined with suitable servo amplifiers and controllers, the motor provides accurate control of torque, velocity, and position for advanced automation applications.
Servo Dynamics MTS30M4-38B is also valued in legacy equipment maintenance projects. Many industrial machines continue to operate for decades, and replacing discontinued servo components with compatible MTS series motors allows users to extend equipment service life while avoiding costly machine redesign.
The robust design of Servo Dynamics MTS30M4-38B enables reliable operation in industrial environments including manufacturing plants, machine tools, and automated production lines. Its combination of performance, durability, and compatibility makes it a practical choice for demanding motion control applications.
Applications
Servo Dynamics MTS30M4-38B is widely used in industrial automation systems requiring accurate rotary motion control and reliable servo performance. Its high dynamic response and feedback-based operation make it suitable for precision manufacturing equipment.
In CNC machine tools, Servo Dynamics MTS30M4-38B is used for axis positioning, spindle-related motion applications, and automated machining operations. The motor provides accurate movement control required for machining precision and repeatability.
In semiconductor and electronics manufacturing equipment, MTS30M4-38B supports precision positioning mechanisms where small errors can affect product quality. Its encoder feedback capability allows accurate control of motion stages and automated handling systems.
Packaging machinery also benefits from Servo Dynamics MTS30M4-38B because these systems require rapid acceleration, synchronized movement, and continuous operation. The motor supports high-speed production cycles while maintaining positioning accuracy.
Industrial robots and automated assembly systems can use MTS30M4-38B for controlled movement of mechanical components. Its compact design and torque capability make it suitable for robotic axes and precision mechanisms.
The motor is also commonly applied in retrofit and repair projects for older automation equipment. By replacing worn or unavailable servo motors with Servo Dynamics MTS30M4-38B, users can restore machine functionality and reduce equipment downtime.
Typical application areas include:
- CNC machine tools
- Robotics and automation equipment
- Semiconductor manufacturing systems
- Packaging machinery
- Printing and converting equipment
- Precision assembly machines
- Textile machinery
- Industrial retrofit projects
- Motion control platforms
