DCC2380A (Order code：3EST49-156) is the Digital Control Card developed by ABB for the RTU560 Remote Terminal Unit platform.
It functions as a discrete signal processing slave module installed inside RTU560 subrack. The module collects binary status from field contact signals, performs signal filtering and debounce processing, and exchanges data with the 560CMU05 main controller via internal rack bus. It is widely used in power system substation automation for breaker position, protection status and sequence-of-event signal acquisition.
Technical Specifications
| Item | Parameter |
|---|---|
| Part Number | DCC2380A (3EST49-156) |
| Module Type | Digital Input Slave Module |
| Manufacturer | ABB |
| Applicable Platform | ABB RTU560 RTU Rack |
| Channel Count | 16 isolated digital input channels |
| Supported Input | Dry contact / 24VDC wet contact |
| Software Function | Configurable debounce time, high-resolution SOE time stamping |
| Internal Bus | RTU560 internal backplane bus communicating with CMU controller |
| Power Supply | Supplied by rack backplane |
| Mounting Form | Single slot plug-in module |
| Hot Swap | Supported |
| Operating Temperature | -20 ℃ ~ +70 ℃ |
| Ambient Humidity | 5%–95% non-condensing |
| Protection Class | IP20 (installed inside control cabinet) |
| Front Panel LEDs | Module status and channel indication LEDs |
| Matching Terminal Unit | Standard RTU560 termination assembly |
| Engineering Software | RTU560 configuration tool |
| Spare Part Status | OEM production discontinued; new surplus and refurbished spare modules available |

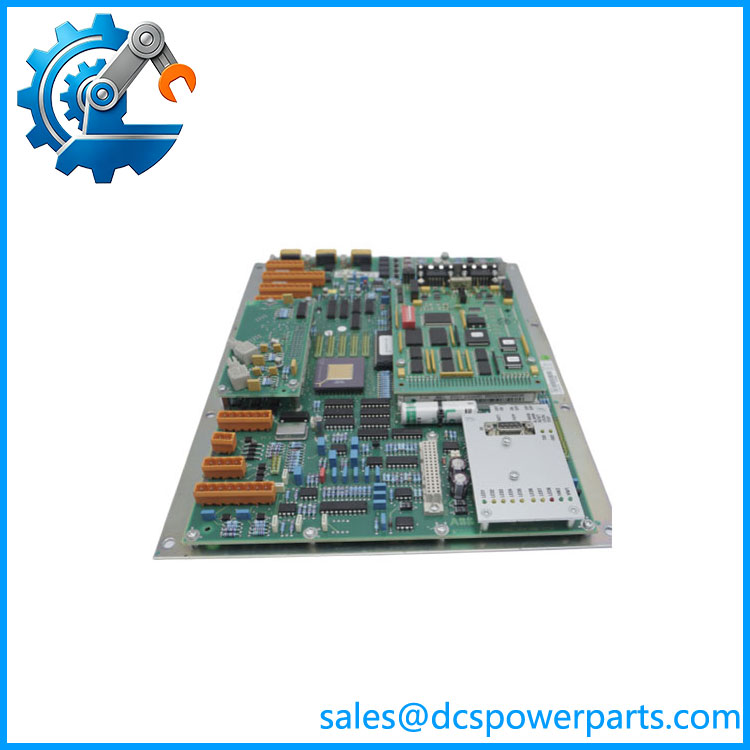

DCC2380A
Key Features
- 16-channel group isolated digital input, enhances anti-interference capability in substation strong electromagnetic environment
- Supports millisecond-level SOE time tagging, convenient for power grid fault sequence analysis
- Software adjustable signal debounce filter to avoid jitter caused by contact bounce
- Built-in channel diagnostics to detect open circuit and abnormal field circuit status
- Hot-swap design; module can be replaced without powering off the whole rack
- Standard mechanical dimension compatible with all RTU560 subrack slots
- Strict part number matching; variants with different suffix codes cannot be directly interchanged without project reconfiguration
- Standard I/O spare part for RTU560 substation automation systems
Application Scope
High/medium voltage substation RTU560 signal acquisition cabinets, thermal power plant auxiliary equipment remote monitoring systems, wind farm SCADA data collection racks, hydropower station automation control, industrial power distribution monitoring, and maintenance & retrofit projects of legacy ABB RTU560 equipment.
