Description
Product Overview
Simplex 4100-3102 is a MAPNET II Addressable Interface Module designed for use with Simplex 4100 series fire alarm control panels. It provides an intelligent communication interface between the fire alarm control unit and MAPNET II addressable initiating devices, enabling the system to monitor and supervise a large number of addressable field devices through a single module. As a key expansion component within the Simplex 4100 fire alarm platform, 4100-3102 enhances system scalability by allowing smoke detectors, heat detectors, monitor modules, and other MAPNET II devices to be connected directly to the fire alarm control network.
Simplex 4100-3102 operates as a two-slot MAPNET II communication module with support for up to 127 addressable points. The module continuously communicates with connected field devices, providing device identification, status supervision, alarm reporting, and trouble monitoring functions. By using digital addressable communication technology, 4100-3102 allows the control panel to identify individual devices rather than only monitoring conventional zones, significantly improving event accuracy, maintenance efficiency, and system management capability.
Within Simplex 4100 and related addressable fire detection architectures, Simplex 4100-3102 serves as an important bridge between the main fire alarm processor and distributed field devices. It is commonly installed in commercial buildings, industrial facilities, transportation infrastructure, healthcare facilities, and large-scale complexes where reliable fire detection and centralized monitoring are required. With its proven MAPNET II technology, robust supervision capability, and compatibility with Simplex addressable devices, 4100-3102 provides a dependable solution for expanding and maintaining intelligent fire alarm systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 4100-3102 |
| Manufacturer | Simplex (Johnson Controls) |
| Product Type | MAPNET II Addressable Interface Module |
| System Compatibility | Simplex 4100 Series Fire Alarm Control Units |
| Communication Technology | MAPNET II Addressable Communication |
| Maximum Address Capacity | 127 addressable points |
| Module Size | 2 panel slots |
| Primary Function | Addressable device communication and supervision |
| Supported Devices | MAPNET II smoke detectors, heat detectors, monitor modules, control modules |
| Device Loading | 1.7 mA per MAPNET II device |
| Supervisory Current | Approximately 255 mA without devices |
| Alarm Current | Approximately 275 mA without devices |
| Fully Loaded Current | Approximately 471 mA supervisory / 491 mA alarm |
| Installation Type | Fire alarm control panel rack mounting |
| Communication Method | Digital two-wire addressable loop communication |
| Application Environment | Commercial and industrial fire protection systems |
| System Expansion Function | Adds addressable initiating device capacity to control panels |

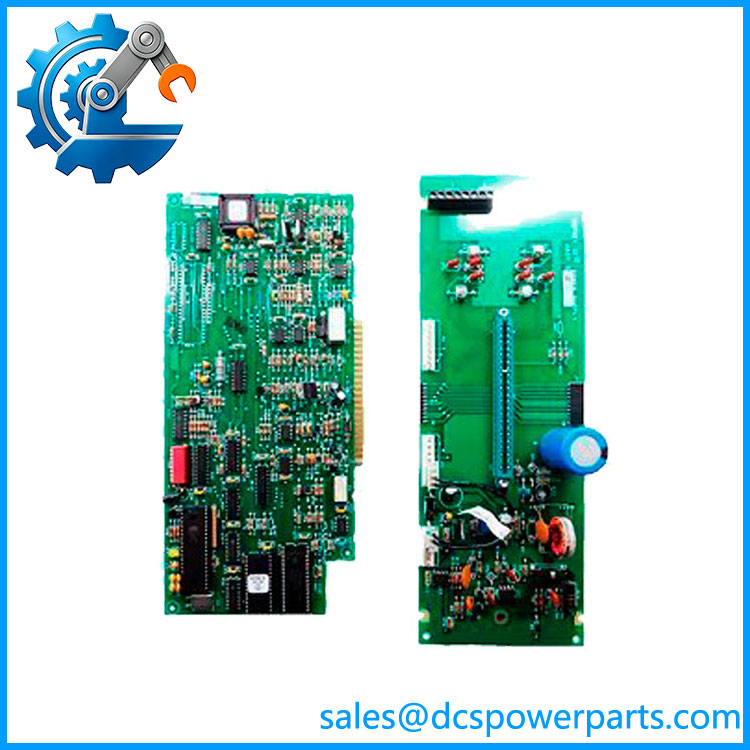

4100-3102
Main Features and Advantages
Simplex 4100-3102 provides a highly reliable method for expanding the addressable device capacity of Simplex 4100 fire alarm control systems. Its primary advantage is the ability to connect a large number of intelligent field devices through a single communication interface while maintaining individual device identification and supervision. This improves fire alarm system accuracy compared with traditional conventional zone-based solutions.
A major feature of Simplex 4100-3102 is its MAPNET II addressable communication capability. Unlike conventional input circuits that only identify a general alarm zone, 4100-3102 allows the fire alarm panel to identify the exact device that has generated an alarm, supervisory condition, or trouble signal. This precise information helps emergency personnel and maintenance teams respond faster during critical events.
The module supports up to 127 addressable MAPNET II devices, making Simplex 4100-3102 suitable for medium and large-scale fire detection installations. The expansion capability allows system designers to increase device coverage without significantly increasing panel complexity or requiring additional control equipment.
Another important advantage of 4100-3102 is its continuous supervision capability. The module monitors communication integrity with connected devices and reports abnormal conditions such as open circuits, communication failures, or device faults back to the fire alarm control unit. This ensures that the entire detection network remains operational and compliant with safety requirements.
Simplex 4100-3102 also offers excellent compatibility with existing Simplex 4100 installations. Many facilities continue to operate legacy 4100 systems due to their reliability and long service life, and this module provides a practical solution for system expansion, repair, and replacement projects.
The industrial-grade design of Simplex 4100-3102 supports continuous operation in critical safety environments. It is engineered for dependable performance in buildings and facilities where fire detection reliability directly affects personnel safety and asset protection.
Through addressable communication, high device capacity, and proven Simplex system integration, 4100-3102 remains an important component for maintaining efficient and reliable intelligent fire alarm systems.
Applications
Simplex 4100-3102 is widely used in intelligent fire alarm installations requiring centralized monitoring and individual device identification. In commercial buildings such as office towers, shopping centers, hotels, and educational facilities, the module enables connection of multiple addressable detectors and monitoring devices to provide comprehensive fire detection coverage.
In healthcare environments, Simplex 4100-3102 supports reliable monitoring of patient areas, equipment rooms, electrical spaces, and service areas where rapid fire detection is essential. The module allows operators to quickly determine the location and type of alarm event, improving emergency response efficiency.
Industrial facilities also benefit from Simplex 4100-3102 in applications such as manufacturing plants, warehouses, power facilities, and process industries. These environments often require large numbers of detectors and monitoring points distributed across extensive areas, and the module provides scalable addressable communication capability.
Transportation infrastructure, including airports, railway stations, and large public facilities, uses Simplex 4100-3102 as part of integrated fire safety systems. Its ability to supervise individual devices helps operators maintain high levels of system availability and operational awareness.
The module is also widely used in fire alarm system upgrade and maintenance projects. Existing Simplex 4100 systems can be expanded or repaired using 4100-3102 without replacing the entire fire alarm control infrastructure, reducing project costs and minimizing operational disruption.
Typical application areas include:
- Commercial buildings
- Industrial plants
- Hospitals and healthcare facilities
- Educational institutions
- Airports and transportation facilities
- Data centers
- Government and public buildings
- Large residential complexes
