Beijer Electronics Exter T70-BL Operator Panel (Part No. 06170A)
Continuing the catalog sequence of industrial automation hardware, EXTER T70-BL 06170A specifies a legacy graphic touch Human-Machine Interface (HMI) manufactured by Beijer Electronics.
Key Specifications & Overview
-
Manufacturer: Beijer Electronics
-
Product Series: EXTER Series (Legacy HMI)
-
Model / Variant: T70-BL (-BL denotes the distinctive Black powder-coated aluminum frame/casing)
-
Part / Catalog Number: 06170A
-
Display Type: 6.5-inch TFT-LCD Touch Screen
-
Resolution: 640 x 480 pixels
-
Processor: Intel XScale RISC CPU (416 MHz)
-
Memory: 32 MB Flash (12 MB allocated for application project storage including fonts), 64 MB RAM
-
Front Enclosure Rating: IP66 (Protected against powerful water jets and dust ingress; suitable for wash-down environments)

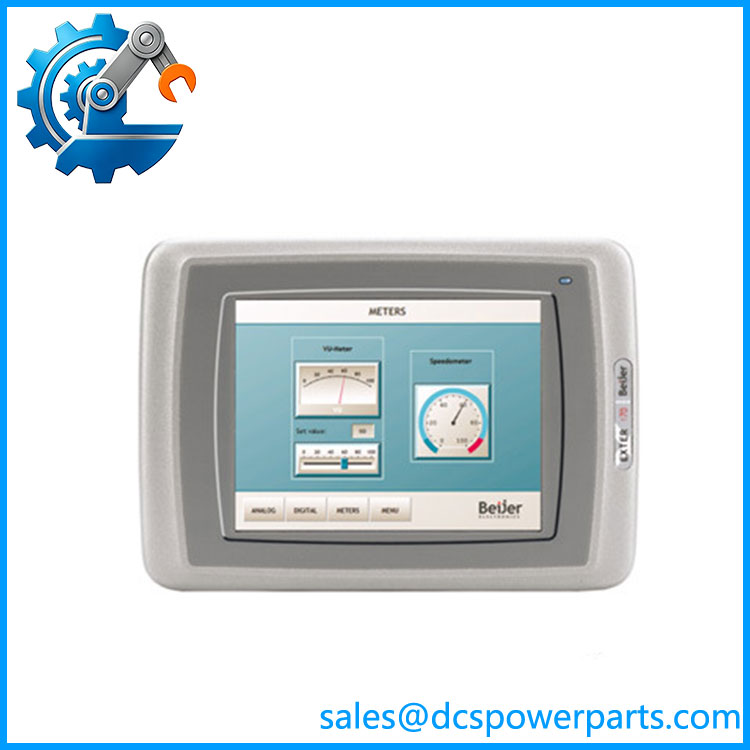

EXTER T70-BL
Communication & Expansion Interfaces
-
Ethernet Port: 1x 10/100 Mbit/s (RJ45)
-
Serial Ports:
-
RS-232C (9-pin D-sub)
-
RS-422 / RS-485 (25-pin D-sub)
-
-
USB Ports: USB 1.1 Host (Type A) and USB Device (Type B)
-
Storage/Slots: CompactFlash (CF) card slot (Type I and II)
-
Fieldbus Expansion: Supports optional communication modules (e.g., Profibus DP slave)
Software & Programming
-
Configuration Tool: Configured using Information Designer, Beijer’s legacy software package designed for object-oriented screen generation, alarm handling, recipes, and text display management.
Common Applications
The T70-BL platform was widely deployed across discrete manufacturing, building automation, energy grids, and marine/offshore environments (holding DNV and Germanischer Lloyd
