Description
Product Overview

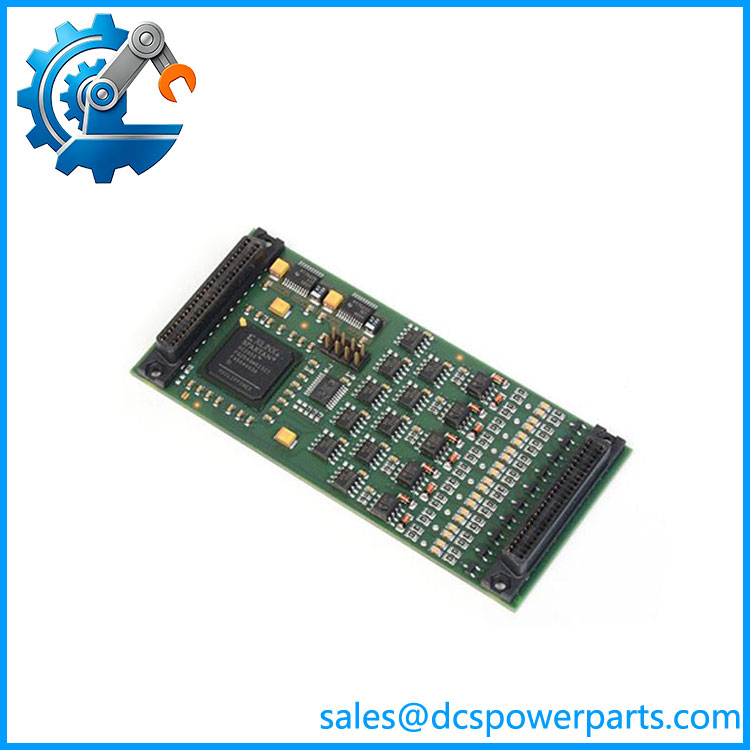

TEWS Technologies TIP114-10 is a high-performance 10-channel absolute encoder interface module designed for industrial motion control and embedded automation applications. It is based on the IndustryPack (IP) modular I/O standard and provides a reliable interface between SSI (Synchronous Serial Interface) absolute encoders and VMEbus, CompactPCI, or other embedded computing platforms equipped with IndustryPack carrier boards. The module enables precise position feedback acquisition from multiple absolute encoders, making it suitable for applications requiring accurate motion measurement and deterministic control.
TEWS Technologies TIP114-10 integrates ten independent SSI input channels, each capable of communicating with absolute encoders through differential RS-422 signal interfaces. The module supports programmable SSI clock rates from 1 μs to 15 μs and configurable data lengths from 1 bit to 32 bits, allowing compatibility with a wide range of industrial encoder devices. By providing galvanically isolated encoder inputs through high-speed optocouplers, TIP114-10 improves system reliability and protects the host controller from electrical interference commonly found in industrial environments.
Within industrial automation architectures, TEWS Technologies TIP114-10 serves as a dedicated motion feedback acquisition module that converts encoder position information into digital data accessible by embedded controllers. It is widely applied in robotics, CNC machinery, semiconductor equipment, automated inspection systems, and precision positioning platforms. With its compact IndustryPack form factor, robust signal isolation, and flexible SSI configuration, TIP114-10 provides an efficient solution for high-accuracy multi-axis motion monitoring systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | TIP114-10 |
| Manufacturer | TEWS Technologies GmbH |
| Product Type | SSI Absolute Encoder Interface Module |
| Module Standard | IndustryPack (IP) Compatible |
| Module Size | Single Size IndustryPack Module |
| Number of Channels | 10 independent SSI encoder channels |
| Encoder Interface | SSI (Synchronous Serial Interface) |
| Signal Level | RS-422 / EIA-422 differential signals |
| Input Isolation | Galvanically isolated through high-speed optocouplers |
| SSI Clock Rate | Programmable from 1 μs to 15 μs |
| SSI Data Length | Programmable from 1 bit to 32 bits |
| Data Encoding | Binary code, Gray code, parity supported |
| Clock Driver Protection | Fault-protected differential clock drivers with TVS protection |
| Operating Temperature | -40°C to +85°C |
| Communication Interface | IndustryPack local bus interface |
| Software Support | VxWorks, Windows, Linux, QNX (depending on driver package) |
| MTBF | Approximately 444,000 hours (TIP114-10R reference condition) |
TIP114-10
Main Features and Advantages
TEWS Technologies TIP114-10 provides a specialized solution for applications requiring accurate and reliable encoder feedback acquisition. Unlike general-purpose digital input modules, TIP114-10 is specifically optimized for SSI absolute encoder communication, allowing direct connection to precision position sensors without additional signal conversion hardware.
The main advantage of TEWS Technologies TIP114-10 is its ability to support ten independent SSI encoder channels in a compact IndustryPack module. This multi-channel architecture significantly reduces system complexity for multi-axis motion applications where several position feedback devices must be monitored simultaneously. The integration of multiple SSI interfaces into one module helps simplify cabinet design and improves system scalability.
Flexible SSI configuration is another important feature of TIP114-10. Each channel supports programmable clock timing and adjustable data length, allowing engineers to integrate different encoder manufacturers and device specifications within the same control platform. Support for binary and Gray-code data formats provides additional compatibility with industrial encoder technologies.
The electrical isolation design of TEWS Technologies TIP114-10 enhances system protection in harsh industrial environments. The encoder inputs use high-speed optocouplers to provide galvanic isolation, preventing electrical noise, ground potential differences, and transient disturbances from affecting the embedded controller.
The module also incorporates protected differential clock drivers with additional transient voltage suppression technology. This improves signal integrity and protects the interface against electrical disturbances caused by long cable runs, industrial switching equipment, and motor-driven machinery.
Another advantage of TIP114-10 is its compatibility with embedded computing platforms. Through the IndustryPack architecture, the module can be installed on carrier boards used in VME, CompactPCI, and other industrial computer systems. This modular approach allows engineers to build customized motion control platforms according to application requirements.
TEWS Technologies TIP114-10 is especially valuable in long-life industrial systems where reliability, precision, and maintainability are critical. Its rugged design, wide operating temperature range, and professional software support make it suitable for continuous operation in demanding automation environments.
Overall, TIP114-10 combines accurate SSI encoder acquisition, multi-channel capability, electrical protection, and embedded system compatibility to provide a dependable motion control interface solution.
Applications
TEWS Technologies TIP114-10 is widely used in industrial automation applications requiring precise position measurement and multi-axis motion control. In robotics systems, the module provides feedback acquisition from absolute encoders installed on robotic joints, allowing controllers to accurately determine mechanical position and execute precise movement commands.
In CNC machines and manufacturing equipment, TIP114-10 is used for high-resolution position monitoring of servo systems, rotary tables, linear axes, and precision mechanisms. The SSI interface capability enables reliable communication with industrial encoders used in machining environments where accuracy and repeatability are essential.
Semiconductor manufacturing equipment also benefits from TEWS Technologies TIP114-10 due to its ability to handle multiple encoder channels in compact embedded systems. Applications such as wafer handling robots, positioning stages, and automated inspection platforms require stable and accurate motion feedback, which the module can provide.
In aerospace, defense, and test systems, TIP114-10 is used for precision measurement and control platforms where deterministic data acquisition is required. The module’s isolated inputs and industrial temperature capability support operation in demanding environments.
Automated production lines and assembly systems use TIP114-10 for monitoring conveyor positioning, actuator movement, indexing mechanisms, and synchronized motion processes. The ability to connect multiple SSI encoders reduces hardware requirements and simplifies system integration.
Typical application areas include:
- Industrial robotics
- CNC machine tools
- Servo motion control systems
- Semiconductor manufacturing equipment
- Automated inspection systems
- Precision positioning platforms
- Test and measurement equipment
- Embedded industrial computers
