ICS Triplex T8110C | Trusted TMR Processor | SIL 3 Safety Controller
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ICS Triplex / Rockwell Automation |
| Model | T8110C |
| Product Type | Trusted TMR Processor |
| System | Trusted TMR |
| Processor Architecture | Triple Modular Redundancy |
| Voting Architecture | 2-out-of-3 |
| Operation | Lock-step TMR |
| Safety Level | Up to SIL 3 under certified configurations |
| Chassis Family | Trusted T8100 |
| I/O Communication | Trusted TMR Inter-Module Communications Bus |
| Diagnostic Interface | Front-panel RS-232 |
| Diagnostics | Processor, memory, communication and system health monitoring |
| Programming | Trusted IEC 61131-3 environment |
| Replacement | Online/hot replacement supported by system architecture |
| Application | Safety-critical control, ESD, fire & gas, turbine and process protection |
The Trusted processor is the main processing component of a Trusted system. Rockwell’s current safety manual identifies T8110C as a safety-related processor that can be used for safety-critical applications up to SIL 3 in single-module or active/standby configurations, subject to the specified certification conditions.
Product Introduction
The ICS Triplex T8110C is the central processing module of the Trusted TMR safety system. Its three processor lanes execute the control application in lock-step, allowing the system to detect discrepancies between processor channels and continue operation when a single channel develops a fault.
The processor communicates with Trusted digital and analog I/O through the redundant TMR inter-module communication architecture. The module also provides front-panel diagnostics and an RS-232 service interface for monitoring, configuration, and maintenance activities.

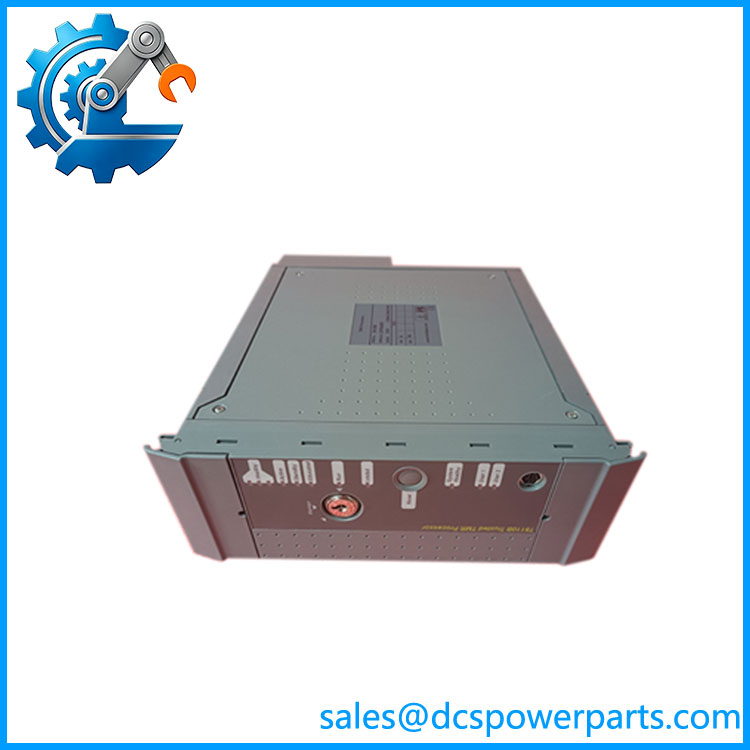

T8110C
Application Scenarios & Field Pitfalls — Engineer’s Perspective
Engineering Pain Point
A T8110C is not simply a high-availability PLC CPU. It is part of a safety-certified TMR architecture, so processor replacement has implications for system configuration, firmware, application loading, and the certified hardware/software combination.
Typical Applications
- Emergency shutdown (ESD) systems
- Fire and gas protection systems
- Turbine and compressor protection
- Oil and gas safety-instrumented systems
- Chemical and process safety control
- Power-generation protection and shutdown systems
Technical Pitfalls to Avoid
- Do not confuse T8110C with T8110B.
Both are Trusted TMR processors, but the suffix identifies a specific hardware variant. T8110B and should not be treated as interchangeable solely because both are processor modules. - Verify the Trusted system generation and firmware.
TÜV documentation lists specific hardware revisions together with corresponding Trusted software builds. The certified configuration therefore matters when replacing a processor in a safety application. - Check the complete TMR architecture.
The processor operates as part of a three-lane architecture. The condition of adjacent processors, Trusted chassis, inter-module communication paths, and associated I/O should be checked before declaring a processor fault. - Review the Rockwell product notice history.
Rockwell issued Product Notice 2015-02-004 concerning a potential intermittent power-up/start problem affecting certain T8110B and processors. For an installed-base replacement, checking the affected hardware revision and service history is worthwhile. - Do not use generic voltage specifications from reseller pages.
Several current commercial listings attach conflicting electrical specifications to . For a safety controller, the chassis power architecture and exact hardware documentation should take precedence over generic marketplace-style specifications.
Related Products
- ICS Triplex T8110B — Earlier Trusted TMR processor variant; hardware and certification revision must be checked before substitution.
- ICS Triplex T8111C — Trusted TMR processor in the later processor family.
- ICS Triplex T8150 — Trusted communication interface.
- ICS Triplex T8151 / T8151B / T8151C — Trusted communication interface variants.
- ICS Triplex T8160 — Trusted TMR interface module.
- ICS Triplex T8170C — Trusted gateway module.
- ICS Triplex T8403 — Trusted TMR digital input module.
- ICS Triplex T8431 — Trusted TMR digital input module.
- ICS Triplex T8442C — Trusted triplicated 4–20 mA analog output module.
- ICS Triplex T8100 — Trusted chassis/platform used with the processor and associated modules.
Procurement Check
Before approving an ICS Triplex , verify:
- Exact model:
- Hardware revision / release letter
- Trusted system version
- Processor firmware
- Application configuration
- T8100 chassis compatibility
- Existing TMR processor arrangement
- Active/standby configuration, if applicable
- Trusted I/O architecture
- TMR inter-module communication condition
- Front-panel diagnostic status
- RS-232 service-port condition
- Rockwell/ICS Triplex product-notice applicability
- Certification requirements for the installed safety function
Recommended procurement description:
ICS Triplex Trusted TMR Processor Module, Triple Modular Redundant Safety Processor, Trusted TMR System, IEC 61508 SIL 3 Certified Configuration, T8100 Chassis Compatible.
For a safety-system replacement, the hardware revision and Trusted software build should be treated as part of the part-number verification process. The model number alone is not enough to establish that a spare is suitable for a certified running application.
