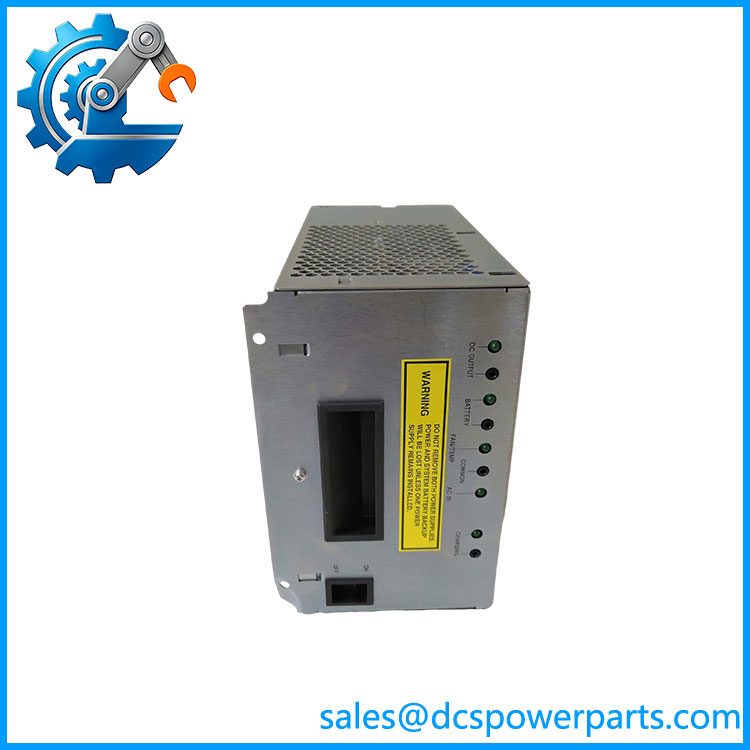

Honeywell SPS5785 51198651-100 | TDC 3000 HPM Process Manager Power Supply

Honeywell SPS5785 51198651-100 | TDC 3000 HPM Process Manager Power Supply

  • Model: SPS5785 51198651-100
  • Brand: Honeywell
  • Series: Honeywell UCN / TDC 3000 / TPS High Performance Process Manager (HPM) Platform
  • Core Function: Converts incoming AC power into regulated DC power for Honeywell process controller cabinets.
  • Product Type: Power Supply Module
  • Key Specs:
    • AC input with regulated AC/DC output
    • Compatible with Honeywell PM, APM, and HPM equipment cabinets
    • Supports redundant power supply configurations
    • Includes battery charging function for backup power systems
Add To Quote
Category: SKU: Honeywell SPS5785 51198651-100

Description

Key Technical Specifications

Parameter Value
Product Model SPS5785
Part Number 51198651-100
Manufacturer Honeywell
Product Type HPM Power Supply Module
System Platform Honeywell UCN / TDC 3000 / TPS
Application PM, APM, HPM equipment cabinets
Input Voltage 100–240 VAC or 48 VDC battery input
Output Type Regulated DC output
DC Output Voltage Approx. 24–26 VDC from battery input
Output Power Approx. 165 W
Battery Function Integrated 48 VDC battery charging circuit
Synchronization Output Approx. 6 VAC line-frequency synchronization output
Redundancy Supports parallel operation of multiple power supplies
Operating Temperature -20°C to +55°C full load
Maximum Temperature Up to +65°C with output derating
Mounting Honeywell UCN equipment cabinet power slot
Typical Weight Approx. 5.2 kg



Product Introduction



Honeywell SPS5785 51198651-100 Product Introduction

Honeywell SPS5785 51198651-100 is an HPM power supply module designed for Honeywell UCN control cabinets used with Process Manager, Advanced Process Manager, and High Performance Process Manager systems. It provides regulated DC power required by controller racks, processor modules, and associated system electronics.

The importance of Honeywell SPS5785 51198651-100 is maintaining existing DCS installations where power integrity directly affects controller availability. This module also supports backup battery charging functions and redundant power arrangements. Before replacement, verify cabinet type, power wiring, battery condition, and existing supply revision.

SPS5785 51198651-100

Application Scenarios & Field Pitfalls (The Engineer’s Perspective)



Engineering Pain Point

A failing power supply inside a Honeywell UCN cabinet often appears as random controller resets, communication interruptions, or unexplained process node failures. The processor cards may test normally, but unstable DC rails can create intermittent faults that are difficult to diagnose during production.

Power modules deserve the same attention as controller hardware. A replacement unit must be checked together with the cabinet load, battery backup system, and redundancy arrangement.



Typical Applications

  • Oil & Gas Facilities – Honeywell HPM cabinets supporting refinery process control, compressor systems, and production monitoring.
  • Chemical Plants – Continuous process automation systems requiring stable controller power for regulatory and safety-related operations.
  • Power Generation – Legacy Honeywell TDC 3000/TPS control rooms supporting turbine auxiliaries and plant utilities.
  • Water Treatment Facilities – Process control cabinets managing pumps, chemical dosing, and monitoring systems.



Technical Pitfalls to Avoid

  1. Do Not Mix Different Power Supply Generations Without Verification
    Honeywell has multiple silver power supply revisions. Confirm the exact part number before installation. Honeywell recommends replacement of older versions that have exceeded service-life recommendations.
  2. Inspect the Battery Backup System
    The SPS5785 includes battery charging functions. A degraded battery pack can overload the charging circuit or create false power alarms after replacement.
  3. Check Redundant Supply Operation Before Removal
    If two power supplies are installed in parallel, verify the healthy unit status before removing one module. Confirm output voltage stability after replacement.



Related Products

  • Honeywell 51198947-100
    Earlier silver-generation HPM power supply module. Used in older UCN cabinets but should be verified carefully before replacement with newer revisions.
  • Honeywell 51109684-100
    Previous silver power supply version used in earlier Honeywell process systems. Many installed units have exceeded recommended service life.
  • Honeywell 51109456-200
    Older black power supply generation. Honeywell recommended replacement due to potential over-voltage concerns associated with this series.
  • Honeywell HPM (High Performance Process Manager)
    Controller platform that uses the SPS5785 power supply architecture for process control applications.
  • Honeywell APM (Advanced Process Manager)
    Earlier Honeywell process controller platform supported by compatible UCN cabinet power systems.
  • Honeywell PM (Process Manager)
    Legacy process control platform requiring stable cabinet power distribution.
  • Honeywell 51196694 Series Modules
    Related Honeywell UCN/TDC control hardware used within legacy process automation cabinets.
  • Honeywell 51404127 Series Field Termination Assemblies
    Complementary Honeywell system components used for field signal connection in TDC/TPS architectures.
