Honeywell SC-UCMX01 51307198-175 Overview

The Honeywell SC-UCMX01 51307198-175 is a ControlEdge RTU2020 universal control module designed for remote data acquisition, local processing, and industrial communication applications. It combines controller functions with mixed I/O capability, allowing remote assets to exchange field data with supervisory systems.

The Honeywell SC-UCMX01 51307198-175 is commonly used in distributed automation systems where unattended equipment monitoring and remote control are required. Typical installations include pipeline stations, energy monitoring systems, and remote process assets. Replacement requires verification of firmware, I/O configuration, and communication settings before commissioning.

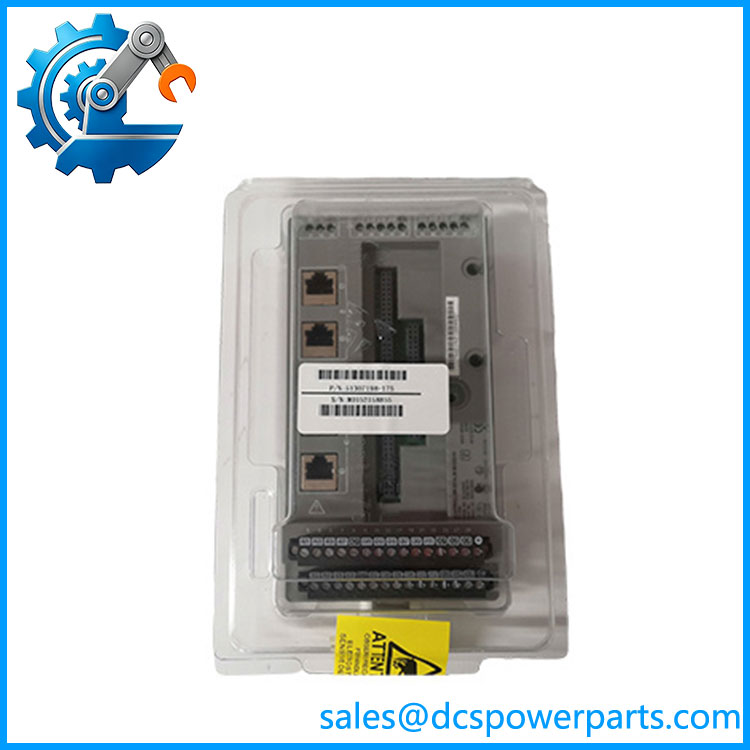

SC-UCMX01 51307198-175

Application Scenarios & Field Pitfalls (The Engineer’s Perspective)

Engineering Pain Point

A remote pumping station stops reporting data to the control room. The field instruments are powered, but operators lose visibility of pressure, flow, and equipment status.

This is where RTU failures become difficult. The problem may not be the field instrument. It may be the controller, communication path, power supply quality, or corrupted configuration inside the RTU.

The SC-UCMX01 sits between field devices and the supervisory system. A replacement unit must match the existing application environment, not only the hardware number.

Typical Applications

• Oil & Gas Pipelines – Remote valve stations, pressure monitoring, flow measurement, and pipeline control.
• Water Treatment Facilities – Pump station monitoring, reservoir level measurement, and remote equipment control.
• Energy Distribution Systems – Utility asset monitoring, power consumption recording, and remote diagnostics.
• Industrial Process Sites – Remote skids, unmanned equipment stations, and distributed SCADA data collection.

Technical Pitfalls to Avoid

1. Confirm Firmware and Application Configuration

   RTU hardware replacement normally requires restoring the correct application database, communication parameters, and I/O mapping.

2. Check Loop Power Requirements

   The module can provide isolated loop power for field devices. Verify sensor current requirements before connecting replacement equipment.

3. Inspect Communication Network Settings

   Ethernet addressing, serial parameters, and SCADA communication settings must match the existing system. A powered RTU with incorrect configuration will not restore operation.
