Honeywell 621-0010-A
Product Introduction
The Honeywell 621-0010-A is a four-point analog output module for the Honeywell IPC 620 / IPC 621 control system family. Honeywell documentation identifies the -A version specifically as an Analog Output, 4-point (4–20 mA) module. This distinguishes it from the closely related 621-0010-V, which is configured for 0–10 V analog output. The distinction is important in legacy control-system maintenance because the two modules may share the same basic product family while serving different field signal requirements.
The Honeywell 621-0010-A converts controller output values into four continuously variable 4–20 mA signals for connected field equipment. Depending on the original control application, these outputs can be used for devices such as valve position interfaces, speed references, analog setpoints, or other receiving equipment designed for current-loop control. Available IPC 621 documentation identifies the module as a rack-mounted output module, while parts records classify it as an analog board.
For replacement work, the complete Honeywell 621-0010-A designation should be preserved. The A suffix is not cosmetic; it identifies the 4–20 mA version. The 621-0010 family also includes voltage-output and other suffix configurations, so substituting a visually similar module without checking the suffix can produce an incorrect field signal. The module is also a legacy/discontinued component, making connector condition, rack compatibility, module revision, and pre-installation testing important considerations when maintaining an existing IPC 620/621 installation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 621-0010-A |
| Manufacturer | Honeywell |
| System Family | IPC 620 / IPC 621 |
| Product Type | Analog Output Module |
| Number of Channels | 4 |
| Output Signal | 4–20 mA |
| I/O Direction | Analog Output |
| Module Interface | Push/pull interface |
| Communication Protocol | None; rack I/O module |
| Installation | IPC 621 I/O rack |
| Related Voltage Version | 621-0010-V, 0–10 V |
| Base Model | 621-0010 |
| Module Dimensions | Approx. 1.2 × 10.5 × 6.8 in. for the 621-0010 family |
| Weight | Approx. 0.85 lb for 621-0010-A listing |
| Operating Temperature | Not verified from the available exact-model documentation |
| Protection Rating | Not applicable as a standalone field device |
| Accuracy | Verify against original IPC 621 documentation |
| Status | Legacy / discontinued |
Honeywell’s IPC documentation directly establishes the four-point 4–20 mA function. The available parts listing also identifies the module as a Honeywell PLC/module-rack component. Exact electrical load limits, output accuracy, isolation characteristics, and environmental ratings should be confirmed from the applicable IPC 621 hardware documentation rather than transferred from a different 621-series module.

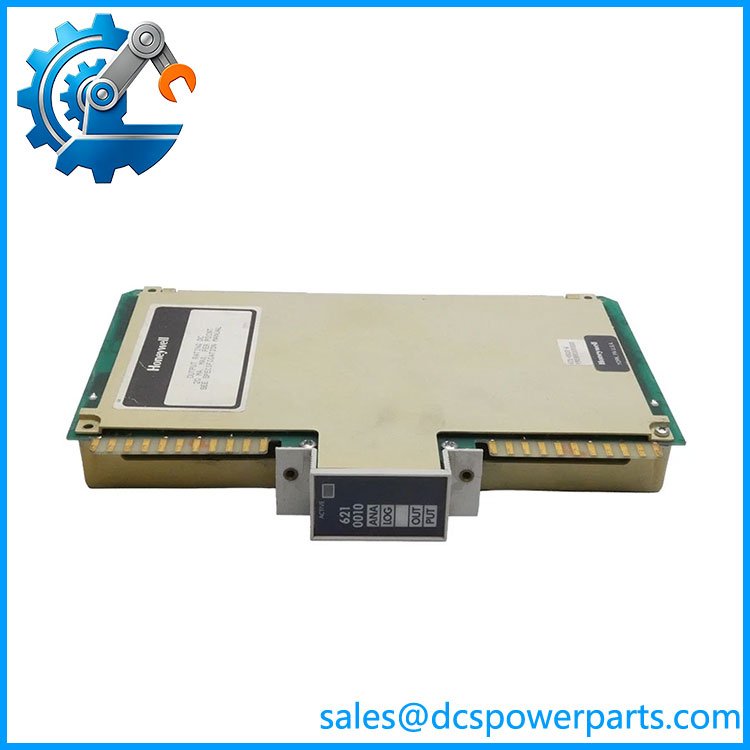

621-0010-A
Main Features and Engineering Considerations
Four analog output points
The 621-0010-A provides four analog output points. Honeywell’s IPC 621 module table explicitly identifies it as a four-point 4–20 mA analog output module.
Current-loop output
The module is intended for equipment that accepts a 4–20 mA control signal. This makes it fundamentally different from the 621-0010-V variant, which provides 0–10 V output. The suffix must therefore be checked before approving a replacement.
IPC 620 / IPC 621 integration
This is a system-level I/O module rather than a standalone modern PLC analog card. Its correct operation depends on the controller, I/O rack, module interface, configuration, and field wiring being compatible with the original IPC architecture.
Legacy system application
The IPC 620/621 family is a legacy Honeywell control platform. The 621-0010-A is listed as discontinued in current parts records. This means condition assessment is particularly important when sourcing an installed-base replacement.
Push/pull interface
Honeywell documentation marks the analog 621-0010-A and 621-0010-V modules as using the push/pull interface. Field termination should therefore be checked against the original rack wiring and interface hardware rather than assumed from newer Honeywell I/O architectures.
Output-loop troubleshooting
When an output channel does not produce the expected 4–20 mA signal, replacing the board immediately is not necessarily the correct first step. The troubleshooting path should include the controller command, module channel, rack interface, field wiring, receiving instrument, and process-side device.
Application Scenarios
- Honeywell IPC 620 control systems
- Honeywell IPC 621 I/O racks
- Legacy process-control systems
- Analog valve control
- Analog actuator references
- Speed or process setpoint transmission
- Current-loop control interfaces
- Industrial process instrumentation
- Legacy plant automation maintenance
Engineer’s Guide: Field Pitfalls
Do not confuse 621-0010-A with 621-0010-V. The -A version is 4–20 mA; the -V version is 0–10 V. Honeywell’s own module table distinguishes these configurations.
Check the complete module label. The base number 621-0010 is insufficient for replacement approval when multiple output variants exist.
Do not assume modern PLC compatibility. This module belongs to the IPC 620/621 architecture and should be evaluated together with the installed rack and controller.
Check the receiving device. A 4–20 mA output must be compatible with the input characteristics of the connected field instrument or control device.
Check the field loop before condemning the module. Open wiring, incorrect termination, a failed receiving device, or an incorrect controller command can all appear as an output-module fault.
Inspect the rack connector. Aging contacts, contamination, oxidation, and mechanical looseness can produce intermittent output problems.
Verify channel assignment. On an operating plant, confirm which physical channel corresponds to the configured process tag before disconnecting field wiring.
Test under controlled conditions. If plant procedures permit, test individual channels against known output commands and measure the actual loop current with appropriate instrumentation.
Do not transfer specifications from 621-0010-V. Although the two variants belong to the same family, the signal type is different and their field applications are not interchangeable without system-level changes.
Frequently Asked Questions
What is Honeywell 621-0010-A?
It is a four-point analog output module for the Honeywell IPC 620/IPC 621 system, with 4–20 mA outputs.
How many analog outputs does it have?
The documented configuration provides 4 analog output points.
Is the output 4–20 mA?
Yes. The -A version is specifically documented as the 4–20 mA configuration.
What is the difference between 621-0010-A and 621-0010-V?
The 621-0010-A is the 4–20 mA version, while 621-0010-V is the 0–10 V version.
Is 621-0010-A a PLC CPU?
No. It is an analog output I/O module used within the Honeywell IPC 620/621 control architecture.
Does it use Ethernet or PROFIBUS?
No independent Ethernet or PROFIBUS interface is documented for this module. It functions as a rack-based analog I/O module.
Is Honeywell 621-0010-A discontinued?
Current parts records identify the module as discontinued by the manufacturer.
Can the 621-0010 base model replace 621-0010-A?
The base number alone should not be used to approve a replacement. The -A suffix identifies the 4–20 mA version, and the complete module designation should be matched to the installed application.
Procurement Note
Specify the item as:
Honeywell 621-0010-A — IPC 621 — 4-Point Analog Output Module — 4–20 mA
Before purchasing or installing a replacement, verify:
- Complete part number: 621-0010-A
- Honeywell IPC 620/621 system compatibility
- Four-channel configuration
- 4–20 mA output requirement
- Rack and connector compatibility
- Module revision
- Existing channel assignment
- Field termination/interface arrangement
- Controller configuration
- Receiving-device requirements
- Condition of the replacement module
- Functional test results for used/refurbished units
The key procurement point is the -A suffix. Honeywell documents it as the 4–20 mA version, while 621-0010-V is the 0–10 V version. For a legacy IPC installation, matching the complete suffix and rack architecture is more important than matching only the 621-0010 base number.
