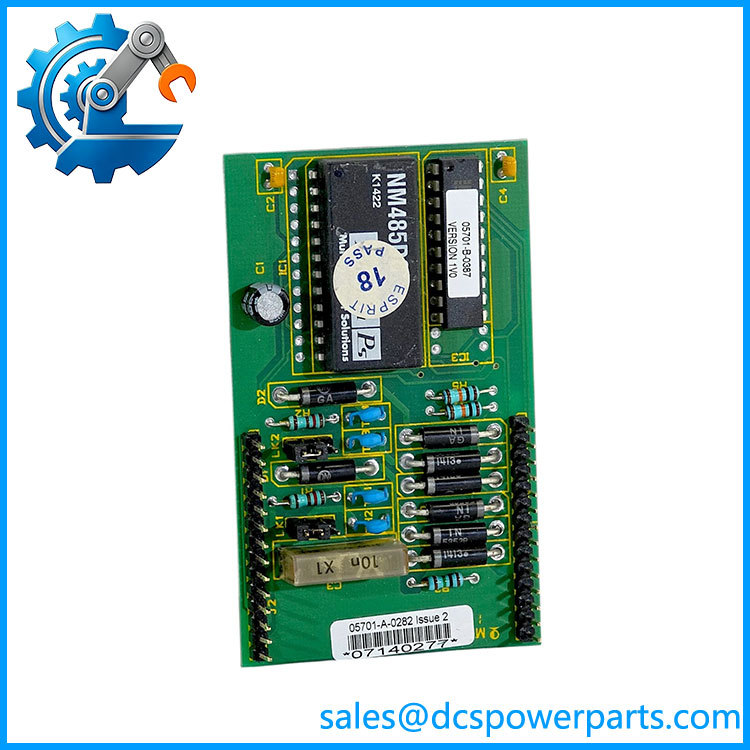

Honeywell 05701-A-0282

The Honeywell 05701-A-0282 is a MODBUS Interface Module for the SIEGER System 57 gas detection platform. The OEM installation documentation identifies it specifically as the RS485/RS422 version, used to provide MODBUS communications between the System 57 and external equipment.

The module is useful when a legacy System 57 installation needs to expose detector and alarm information to a higher-level control or monitoring system. It works as part of the System 57 architecture rather than as a standalone PLC communication card.

05701-A-0282

Application Scenarios & Field Pitfalls

Engineering Pain Point

A System 57 gas detection rack can operate correctly locally while the plant DCS stops receiving detector status or alarm information. That does not necessarily mean the gas detectors or controller have failed. The communication path—including the 05701-A-0282, serial wiring, MODBUS configuration, and receiving-system register mapping—needs to be checked as one chain.

Typical Applications

• Oil & Gas — Transfer gas-detector status and alarm information from System 57 to plant monitoring systems.
• Petrochemical Facilities — Integrate fixed gas detection with supervisory control and alarm-management systems.
• Chemical Plants — Provide serial MODBUS data from System 57 detection racks to centralized control rooms.
• Industrial Gas Detection — Connect legacy SIEGER System 57 installations to external data-acquisition or supervisory equipment.

Technical Pitfalls to Avoid

1. Do not confuse 05701-A-0282 with the RS232 version.
   Honeywell documentation identifies 05701-A-0282 as RS485/RS422 and 05701-A-0287 as RS232. They are separate interface modules.
2. Do not treat it as a MODBUS TCP device.
   This is a legacy serial MODBUS interface. Claims from secondary listings describing it as MODBUS TCP/IP are not supported by the Honeywell System 57 documentation.
3. Check the complete MODBUS interface kit.
   Honeywell’s installation instructions specify the interface module together with EPROM 05701-A-0385 and an HN6264ALP RAM expansion. If restoring an old rack, check whether the required Engineering Card firmware/hardware upgrade is already installed.
4. RS485 and RS422 wiring are not interchangeable assumptions.
   Confirm the actual wiring topology and interface configuration from the System 57 documentation before reconnecting the communications cable.
5. Check serial parameters.
   Baud rate, parity, stop bits, station address, and other communication parameters must agree between the System 57 and the receiving device.
6. Verify MODBUS register mapping.
   A working serial link does not guarantee correct data. Confirm register addresses, data types, scaling, alarm states, and status words in the receiving system.
7. Do not remove the Engineering Card without isolating power.
   Honeywell’s installation procedure specifically instructs the technician to isolate the System 57 rack from all power sources before removing the Engineering Card.
8. Be careful with the EPROM installation.
   Honeywell warns that incorrect insertion of the upgrade EPROM can permanently damage it. Pin-1 orientation and correct seating matter.
9. Check the receiving DCS/SCADA side separately.
   If the System 57 communicates locally but the plant system reports bad data, verify the serial converter, cable, termination, MODBUS master configuration, and register mapping before replacing the interface module.
10. Preserve the existing configuration.
    This is old System 57 hardware. Before replacement, document the module identification, Engineering Card revision, EPROM, communication settings, wiring, and host-system configuration.

Related Products

• Honeywell 05701-A-0287 — System 57 MODBUS Interface Module RS232. This is the RS232 counterpart to the 05701-A-0282 RS485/RS422 module. It should not be substituted without checking the existing serial interface requirements.
• Honeywell 05701-A-0385 — Engineering Card software-upgrade EPROM specified in the System 57 MODBUS interface kit. The original installation documentation requires this EPROM for the MODBUS upgrade.
• Honeywell System 57 Engineering Card — Host engineering/control card into which the MODBUS interface upgrade is integrated. The 05701-A-0282 should be considered part of this System 57 communication architecture.
• Honeywell System 57 Rack — The host gas-detection platform. The 05701-A-0282 provides external MODBUS connectivity for the rack rather than functioning as an independent controller.
• Honeywell 05701-A-0284 — System 57 catalytic sensor drive module. It serves sensor-interface functions and is unrelated to the MODBUS communication role of 05701-A-0282.
• Honeywell 05701-A-0288 — System 57 family PC board. It belongs to the same legacy gas-detection platform but has a different system function.
• Honeywell 05701-A-0301 — System 57 single-channel control card. It handles gas-detection/control functions rather than external MODBUS communications.
• Honeywell 05701-A-0325 — System 57 DC input card. It is an input interface rather than a communication module.
• Honeywell 05701-A-0326 — System 57 field interface card. It provides field-interface functionality and should not be confused with the MODBUS interface.
• Honeywell 05701-A-0327 — System 57 relay card with double-SPCO functionality. It provides relay outputs rather than serial communications.
