Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Honeywell Process Solutions |
| Model | CC-TAIX01 |
| Part Number | 51308363-175 |
| Product Type | Analog Input IOTA / Termination Assembly |
| System Platform | Honeywell Experion PKS Series-C |
| Controller Interface | C300 Controller via Series-C I/O architecture |
| Compatible I/O Modules | CC-PAIH01, CC-PAIH02, CC-PAIX01, CC-PAIX02 |
| Channel Capacity | 16 analog input channels (module dependent) |
| Input Signal Type | Voltage / Current analog signals |
| Supported Current Input | 4–20 mA (with supported AI module configuration) |
| Supported Voltage Input | 0–5V, 1–5V and related ranges |
| HART Support | Through compatible CC-PAIH modules |
| Mounting Type | Series-C IOTA base |
| Redundancy Support | Non-redundant IOTA configuration |
| Power Supply | 24 VDC system supply |
| Installation Location | Experion PKS Series-C I/O cabinet |
| Application | Process measurement, monitoring, and control loops |
Product Introduction
Honeywell CC-TAIX01 51308363-175 Overview
The Honeywell CC-TAIX01 51308363-175 is an Analog Input IOTA module designed for the Honeywell Experion PKS Series-C I/O architecture. It provides the physical termination interface between field instrumentation wiring and analog input processing modules installed in the C300 controller environment. The unit is part of the Series-C I/O hardware structure, where IOTA assemblies provide mounting, field wiring termination, and electrical connection for associated I/O modules.
The Honeywell CC-TAIX01 51308363-175 is typically paired with analog input modules such as CC-PAIH01, CC-PAIH02, and related high-level analog input cards. The IOTA itself does not perform the analog-to-digital conversion; instead, it provides the termination platform that allows field signals from transmitters, sensors, and process instruments to be delivered correctly to the active I/O module.
In an Experion PKS installation, the Honeywell CC-TAIX01 51308363-175 sits between plant instrumentation and the control processing layer. Proper selection requires verification of the installed analog input module type, wiring method, cabinet layout, and redundancy requirements. A physically similar IOTA may not provide the correct terminal arrangement or system compatibility.

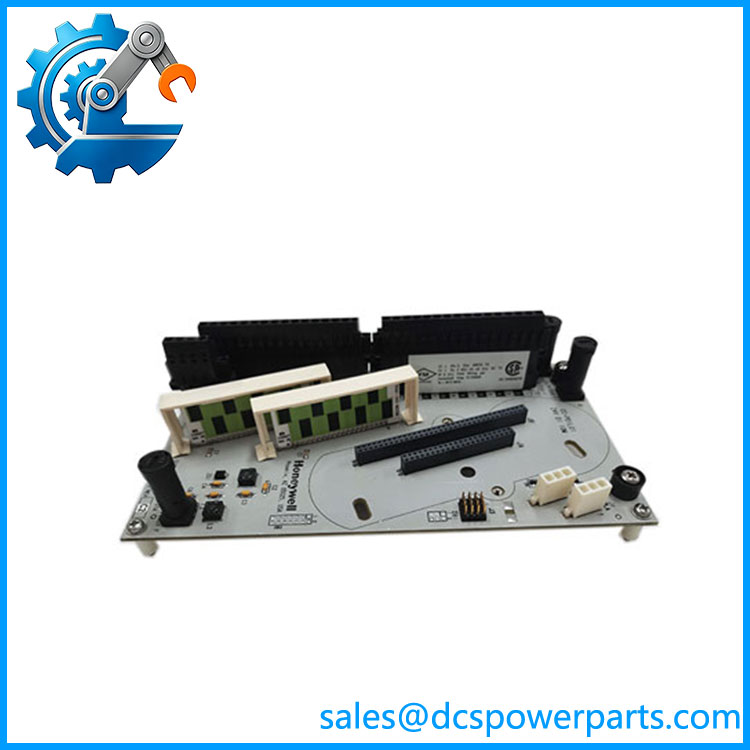

CC-TAIX01
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A process loop begins showing unstable values, intermittent bad PV alarms, or loss of analog measurement. The C300 controller diagnostics may show an I/O communication issue, but the problem can exist anywhere from the field transmitter wiring to the termination assembly.
The CC-TAIX01 51308363-175 is part of the field signal path. It must be evaluated together with:
- Field transmitter wiring
- Terminal connections
- I/O module status
- C300 communication path
- Cabinet power quality
Typical Applications
Refining and Chemical Plants
Used for analog measurements including:
- Pressure transmitters
- Flow transmitters
- Level instruments
- Process analyzers
Power Generation Facilities
Applied in:
- Boiler monitoring systems
- Turbine auxiliary controls
- Plant balance-of-system instrumentation
Oil and Gas Processing
Used for:
- Pipeline monitoring
- Compressor stations
- Process skid instrumentation
General Process Automation
Supports measurement loops for:
- Temperature monitoring
- Pressure control
- Flow regulation
- Process feedback signals
Technical Pitfalls to Avoid
1. Do Not Confuse IOTA with the Analog Input Card
The is a termination assembly. The actual signal processing is performed by the associated CC-Pxxx analog input module.
Replacing the IOTA without checking the installed I/O card can result in incorrect hardware matching.
2. Verify HART Requirements
If field devices require HART communication, confirm that the installed analog input module supports HART functionality. The termination assembly alone does not add HART capability.
3. Check Redundancy Configuration
The CC- is intended for non-redundant applications. Redundant systems normally require the corresponding redundant IOTA configuration such as CC-TAIX11.
4. Inspect Field Wiring Before Replacement
Common field issues include:
- Loose terminal screws
- Incorrect polarity
- Shield grounding problems
- Damaged signal cables
Replacing the termination assembly without checking wiring can leave the original fault unresolved.
