Honeywell 51304511-200 TDC 3000 NIM Modem
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |
| Part Number | 51304511-200 |
| Product Type | NIM Modem I/O / Paddle Card |
| System | Honeywell TDC 3000 |
| Network | Universal Control Network (UCN) |
| UCN Connections | Channel A / Channel B |
| Configuration | CE-compliant NIM |
| Associated Board | EPNI, such as 51401583-100 |
| Installation | NIM card file / NIM assembly |
| Legacy Function | Network interface and modem function |
Honeywell service documentation lists 51304511-200 as the EC NIM Modem I/O version, while the earlier 51304511-100 is listed as the standard NIM Modem I/O board.
Product Introduction
The Honeywell 51304511-200 is a CE-compliant NIM Modem paddle card used in Honeywell TDC 3000 network-interface hardware. It provides the physical modem/interface function for the redundant UCN A and UCN B connections and works as part of the NIM assembly rather than as a standalone DCS controller.
The board is particularly relevant when maintaining older TDC 3000 installations where the UCN/LCN network architecture remains operational. The CE version consolidated functions that had previously been implemented through separate PNM, PNM I/O, PNI I/O, and mini-coax hardware arrangements.
Application Scenarios & Field Pitfalls — The Engineer’s Perspective
Engineering Pain Point
A failed NIM modem can look like a larger network problem because loss of the UCN interface can affect communication between TDC 3000 network nodes and their associated process databases. Before replacing network controllers or unrelated LCN equipment, the NIM modem, UCN cabling, and associated EPNI hardware should be checked as one path.

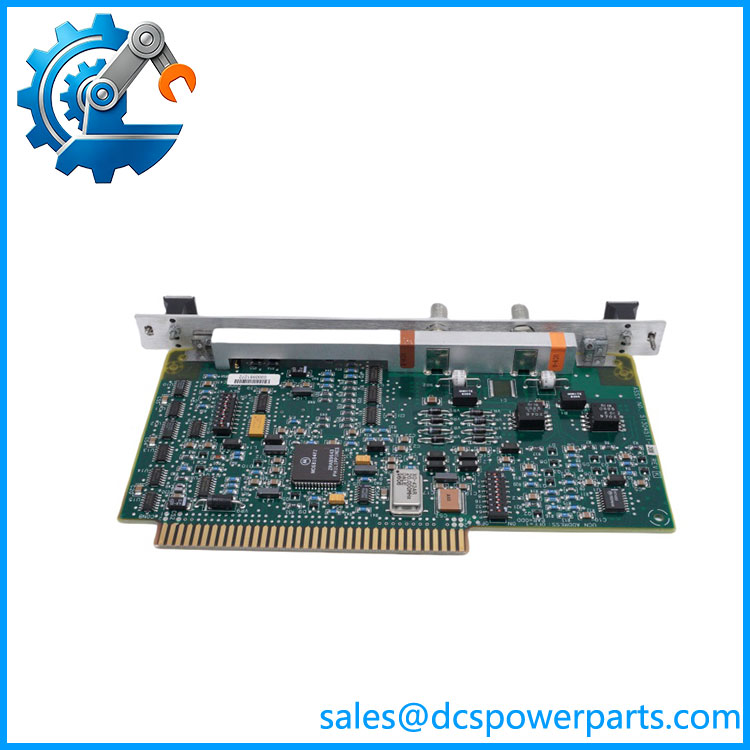

51304511-200
Typical Applications
- Honeywell TDC 3000 UCN networks
- Legacy LCN/UCN process-control installations
- TDC 3000 NIM maintenance and refurbishment
- Replacement of obsolete NIM modem hardware
Technical Pitfalls
1. Do not classify this as an analog I/O module.
Several commercial listings incorrectly describe 51304511-200 as an analog input/output module. The stronger documentation identifies it as a NIM Modem I/O / CE-compliant NIM modem.
2. Verify the NIM configuration.
The board is part of a larger NIM assembly. The associated EPNI board, card file, firmware, and network configuration should be checked before replacement. One technical source specifically identifies the EPNI board 51401583-100 as the main logic board associated with the NIM.
3. Check both UCN channels.
The board provides connections for UCN A and UCN B. During troubleshooting, inspect the connectors and coax/network paths rather than assuming the modem PCB itself is the only possible fault.
4. Do not confuse -200 with -100.
Honeywell documentation distinguishes the 51304511-100 NIM Modem I/O from the 51304511-200 EC version. The CE designation should therefore be treated as part of the required replacement specification.
5. Avoid unsupported electrical specifications.
Some secondary listings publish generic 24 VDC, frequency, channel-count, temperature, and I/O specifications for this part. Those descriptions conflict with the documented NIM modem function and should not be used for engineering acceptance.
6. Consider system firmware when troubleshooting network timing.
The EPNI/NIM architecture has firmware dependencies. One technical description notes that firmware revision H on EPNI board 51401583-100 is required when SOE time synchronization is needed. This is an important distinction when diagnosing a communication problem that appears to be hardware-related.
Related Products
- Honeywell 51304511-100 — Earlier NIM Modem I/O board; compare carefully with the CE -200 version.
- Honeywell 51401583-100 — EPNI main logic board associated with the NIM modem assembly.
- Honeywell 51303944-100 — PNI I/O board used in older NIM configurations.
- Honeywell 51303947-100 — PNM I/O board from earlier network-interface arrangements.
- Honeywell 51109881-100 — Local Control Network Extender.
- Honeywell 51304540-100 — LCNE2 Local Control Network Extender.
- Honeywell 51108899-100 — LCN fiber-optic link hardware.
- Honeywell TDC 3000 NIM — Complete Network Interface Module assembly containing the modem and associated interface electronics.
Procurement Note
For 51304511-200, specify the complete Honeywell part number and CE version. Do not substitute a 51304511-100 simply because the base NIM modem designation matches. Before installation, verify the NIM card-file configuration, EPNI board revision, UCN A/B connections, and any SOE synchronization requirements. For a live TDC 3000 system, the modem should be evaluated as part of the complete NIM–EPNI–UCN communication path, not as an isolated plug-in board.
