Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | K9203 996920302 |
| Manufacturer | HIMA Paul Hildebrandt GmbH |
| Product Type | Circulation Fan Unit Module |
| Application | Cooling for HIMA process safety control systems |
| Power Supply | 24 VDC |
| Fan Quantity | 3 axial fans |
| Mounting | 19-inch rack mounting |
| Height | 1U rack height |
| Monitoring Function | Fan run monitoring |
| Interface | Power input and status monitoring connection |
| Cooling Method | Forced air circulation |
| Installation Position | Control cabinet / HIMA system rack |
| Operating Environment | Industrial control room environment |
| Replacement Model | K9203A (verify system compatibility) |
Product Introduction
HIMA K9203 996920302 Product Introduction
HIMA K9203 996920302 is a circulation fan unit module designed to maintain airflow and temperature control inside HIMA safety system cabinets. The assembly uses multiple axial fans to provide forced cooling and includes fan operation monitoring to support maintenance diagnostics.
The purpose of HIMA K9203 996920302 is protecting safety controller hardware from excessive heat accumulation, especially in densely populated racks. Before installation, verify cabinet layout, rack dimensions, 24VDC supply wiring, and fan monitoring connections.

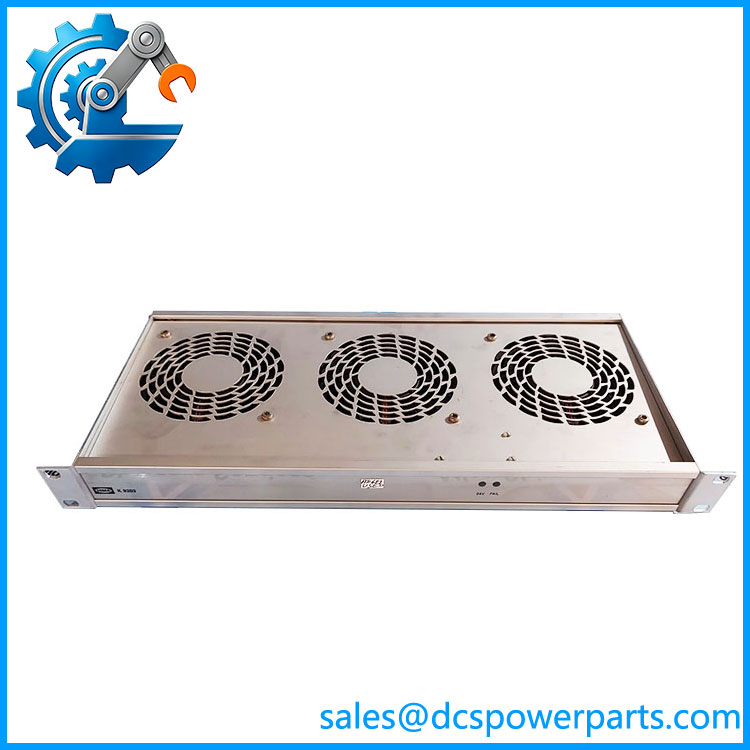

K9203 996920302
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A safety controller cabinet begins showing intermittent hardware alarms after years of continuous operation. Processor modules appear healthy, but internal temperature readings rise during normal plant operation.
Cooling failures are easy to miss. A fan module does not execute safety logic, but overheating can shorten the service life of CPUs, I/O modules, and power supplies.
Typical Applications
- Oil & Gas Facilities – Cooling HIMA safety racks used for emergency shutdown systems and burner management applications.
- Chemical Processing Plants – Maintaining cabinet temperature for SIS controllers operating continuously in process areas.
- Power Generation – Cooling safety control cabinets for turbine protection and auxiliary safety systems.
- Industrial Manufacturing – Temperature management for HIMA-based machine safety and process protection systems.
Technical Pitfalls to Avoid
- Confirm Rack Compatibility Before Replacement
The K9203 is a cabinet accessory rather than a standard I/O module. Verify the rack type, mounting position, and replacement model before installation. - Do Not Ignore Fan Monitoring Signals
A fan may still rotate while operating below required airflow levels. Check the monitoring circuit and alarm feedback after replacement. - Inspect Cabinet Conditions
Dust buildup, blocked ventilation paths, and failed cabinet filters can reduce cooling performance even with a new fan assembly installed.
Related Products
- HIMA K9203A 996920360
Updated circulation fan unit designed as a replacement generation for the older K9203 assembly. Confirm mechanical and electrical compatibility before substitution. - HIMA F8650X
Safety controller CPU module used in HIMA safety architectures. Proper cabinet cooling supports reliable CPU operation. - HIMA F8652E
Safety controller module used in HIMA automation systems. Often installed within the same controlled cabinet environment. - HIMA F7130A
Power supply module for HIMA systems. Cooling performance directly affects power supply operating conditions. - HIMA F3236
Safety digital input module used for collecting field safety signals in HIMA SIS applications. - HIMA F3221
Digital input module used for safety-related signal acquisition and monitoring. - HIMA H51q System Rack
Rack platform supporting HIMA safety modules, processors, and accessories including cooling assemblies. - HIMA SILworX Engineering Environment
Engineering software used for configuring and maintaining HIMA safety systems.
