Description
F3330 is a HIMA safety-related digital output module used in HIMA safety PLC / SIS systems.
Product details
- Manufacturer: HIMA Paul Hildebrandt GmbH
- Model: F3330
- Order number: 984333002 (commonly listed)
- Module type: 8-channel safety-related digital output module (DO)
- Application: HIMA HIQuad / H41q / safety instrumented systems (SIS)
Main specifications
| Parameter | Value |
|---|---|
| Channels | 8 digital outputs |
| Output voltage | 24 V DC |
| Output current | 500 mA per channel (12 W) |
| Load type | Resistive / inductive loads |
| Lamp load | Up to 4 W |
| Protection | Short-circuit proof outputs |
| Safety level | SIL 3 / safety-related applications |
| Isolation | Safe electrical isolation |
| Rack space | 4 TE |
| Supply consumption | 5 V DC: approx. 110 mA; 24 V DC: approx. 180 mA (plus load) |

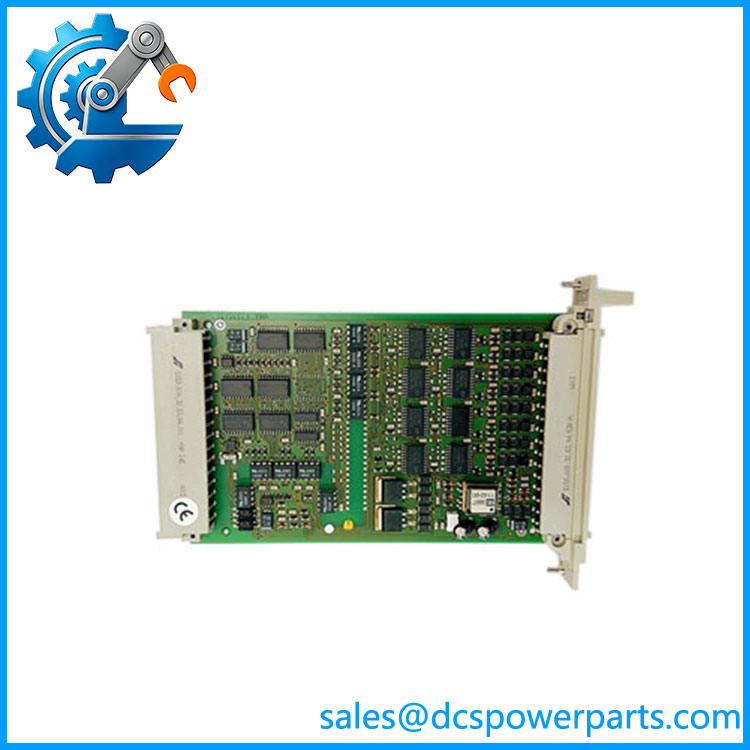

F3330
Product Introduction
F3330 is a high-performance safety control module for fault-tolerant distributed control systems. Equipped with industrial-grade chips and optimized circuit layout, it delivers stable signal processing and reliable data transmission. Designed for critical safety loops, this module serves as a vital replacement component in industrial safety instrument systems to guarantee the safe and continuous running of production facilities.
Key Features
- Built-in comprehensive self-diagnosis function for real-time fault detection
- Outstanding electromagnetic compatibility, suitable for complicated industrial sites
- Support system redundant configuration to enhance overall operation security
- Compact rack-mounted structure, enabling fast disassembly and replacement
- Undergoes strict aging and reliability testing for extended service life
- Standard internal bus interface, seamless connection with main control racks
Functions
- Drives safety actuators such as:
- Solenoid valves
- Motor starters
- Relays
- Shutdown devices
- Includes:
- Integrated safety shutdown
- Output signal feedback monitoring
- Automatic online testing
- Detection of output faults during operation
Typical applications
- Emergency Shutdown (ESD) systems
- Burner management systems
- Oil & gas plants
- Power generation
- Chemical and process industries
