Description

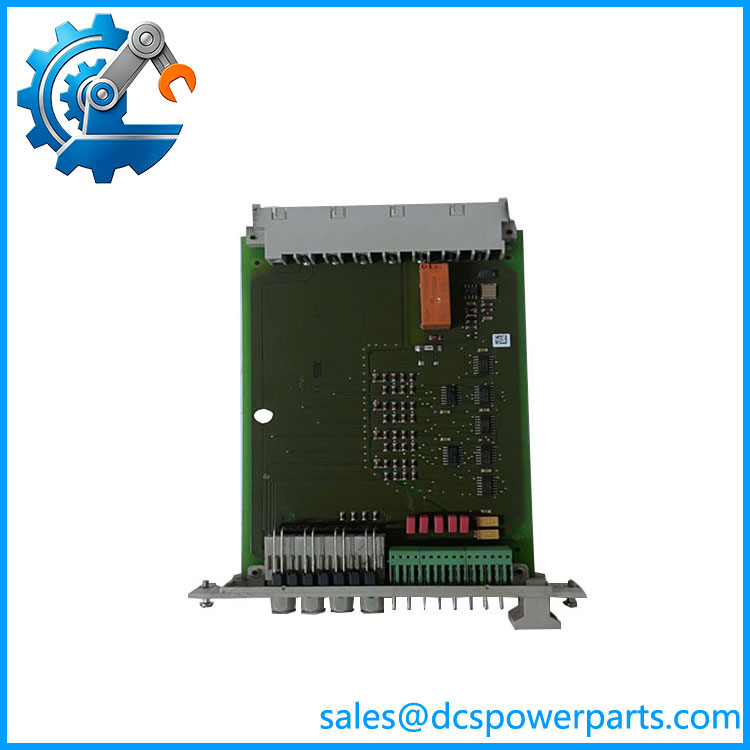

F7133 is most commonly identified as a HIMA F7133 4-fold Power Distribution Module used in HIMA safety PLC / safety instrumented systems (SIS).
Product information
- Manufacturer: HIMA Paul Hildebrandt GmbH
- Model: F7133
- Type: 4-channel (4-fold) power distribution module
- Part / Order number: 984713302 (commonly associated)
- System family: HIMA HIQuad / H41q / H51q safety systems
Main functions
- Distributes 24 V DC power to I/O modules, sensors, and actuator circuits
- Provides 4 separately fused output channels
- Fuse monitoring and fault indication via relay contact
- Short-circuit and overcurrent protection
Typical specifications
| Parameter | Value |
|---|---|
| Supply voltage | 24 V DC |
| Channels | 4 |
| Fuse rating | Max. 4 A slow-blow |
| Relay contact load | 30 V / 4 A continuous |
| Switching time | Approx. 100 ms |
| Space requirement | 4 TE |
| Power consumption | Approx. 60 mA at 24 V DC |
F7133
Product Introduction
F7133 is a high-reliability industrial control module used in safety instrumented and fault-tolerant control systems. Adopting mature redundant circuit design and industrial-grade electronic components, it maintains stable signal processing under severe working conditions. As a core replacement spare part, it ensures continuous, secure operation of critical production units and is widely deployed in petrochemical, power and process automation industries.
Key Features
- Advanced fault diagnosis function, capable of real-time self-check
- Robust anti-interference performance, adaptable to harsh industrial electromagnetic environment
- Redundant architecture support, improving system operational safety
- Compact structure, convenient for rack installation and quick replacement
- Strict industrial aging testing, long service life and low failure rate
- Standard communication interface, easy to integrate with host control system
Applications
- Safety instrumented systems (SIS)
- Oil & gas plants
- Power generation
- Chemical/process automation
- Emergency shutdown (ESD) systems
