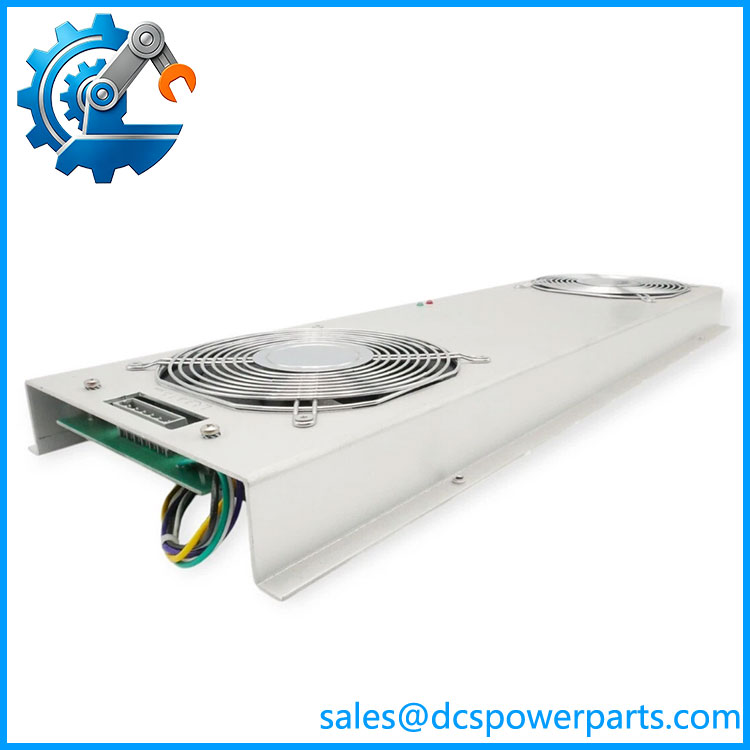

HIMA K9202 Cabinet Fan Module
Product Introduction
The HIMA K9202 Cabinet Fan Module is a dedicated thermal-management component used in HIMA automation and safety-system cabinets. Unlike HIMA processor, communication, or I/O modules, the K9202 is responsible for supporting forced-air cooling inside the equipment enclosure. HIMA’s own approval documentation identifies K9202 specifically as a Cabinet Fan Module for the H41, H51, H41q, and H51q automation-system families.
The practical role of the HIMA K9202 is straightforward but important: maintain controlled airflow around the electronics installed in a populated safety-system cabinet. Temperature management becomes increasingly significant in older HIMA cabinets where multiple processor, I/O, communication, and power modules operate together. A failed fan assembly can therefore become a cabinet-level maintenance issue rather than simply a failed auxiliary component. Current secondary documentation describes the K9202 as a rack-installed cooling module with fan monitoring and a fault indication function, while another current listing identifies a 24 VDC supply and fan-fault alarm contact. These electrical details should be checked against the exact hardware revision before procurement.
For procurement, should be identified by its complete part number and hardware marking. One industrial procurement record associates with material number 99 6920202 and the HIMA H51QE-HRS programmable electronic system, while HIMA certification documentation independently confirms as a cabinet fan module.
Technical Specifications
| Specification | Information |
|---|---|
| Manufacturer | HIMA |
| Model | |
| Product Type | Cabinet Fan Module |
| Primary Function | Forced-air cabinet cooling |
| Applicable HIMA Families | H41 / H51 / H41q / H51q |
| System Role | Cabinet thermal-management / ventilation |
| Installation | HIMA system cabinet/rack |
| Supply Voltage | 24 VDC reported by secondary technical listing; verify before replacement |
| Fan Monitoring | Fan fault monitoring reported |
| Fault Indication | Status/fault indication reported |
| Temperature Classification | T4 |
| Communication Protocol | Not applicable as a conventional network communication module |
| Process I/O | Not a conventional process I/O module |
| Protection Rating | Not reliably established from the sources reviewed |
| Operating Temperature | Secondary listings report -20 to +60°C; verify against exact revision |
| Material Number | 99 6920202 reported for |
| Product Lifecycle | Associated with legacy H41/H51/H41q/H51q systems |
HIMA’s official certification material is the stronger source for the product identity and T4 classification. The more detailed electrical and environmental figures above should be treated as configuration-dependent until confirmed against the physical unit or applicable HIMA technical documentation.
HIMA K9202
Main Features and Engineering Considerations
Dedicated Cabinet Cooling
The is not part of the control logic itself. Its job is to maintain the thermal conditions required by the surrounding HIMA electronics. This distinction matters when preparing a spare-parts list because a should not be substituted with a generic PLC fan assembly simply because the physical dimensions appear similar.
Fan Monitoring
Available technical listings describe the as providing fan monitoring and a fault indication/alarm function. This allows a cabinet ventilation problem to be detected rather than waiting for elevated cabinet temperature to cause secondary failures.
Legacy HIMA System Compatibility
HIMA’s approval documentation specifically groups with the H41, H51, H41q, and H51q automation systems. This is an important procurement clue. The should be matched to the actual cabinet architecture rather than assumed to be interchangeable across every HIMA generation.
Thermal Management Is a System Requirement
For an operating safety cabinet, cooling is part of the equipment’s operating environment. If the is being replaced because of a fan failure, inspect the other fans, airflow paths, filters, cabinet temperature, and fan alarm circuitry at the same time. A replacement module will not solve a blocked airflow path or a failing upstream power circuit.
T4 Classification
HIMA certification documentation lists with T4 temperature classification. This is a documented certification characteristic and should not be confused with an enclosure or hazardous-area installation rating by itself. The complete cabinet/system certification determines whether the assembled installation is suitable for a particular hazardous location.
Application Scenarios
- HIMA H41 safety-system cabinets
- HIMA H51 safety-system cabinets
- H41q automation systems
- H51q automation systems
- Emergency shutdown system cabinets
- Process safety system cabinets
- Industrial control cabinets requiring monitored forced-air cooling
- Replacement of failed HIMA cabinet fan assemblies
Engineer’s Guide: Field Pitfalls
1. Do not classify as a CPU or communication module.
HIMA’s own documentation identifies it as a Cabinet Fan Module. Several secondary sellers incorrectly describe as a communication or safety-relay module, so those descriptions should not be used for technical procurement.
2. Verify the complete part number.
is also associated with 99 6920202 in an industrial procurement record. Retain both the designation and any 99-series material number found on the equipment.
3. Check the fan fault circuit.
If the original unit generated a cabinet-fan alarm, verify whether the problem is the fan itself, the electronics, the supply voltage, or the alarm wiring.
4. Inspect cabinet airflow.
A replacement fan can fail prematurely if filters are blocked, ventilation openings are obstructed, or the cabinet has accumulated excessive dust.
5. Do not assume newer HIMA hardware is a direct substitute.
The is documented with the H41/H51/H41q/H51q family. Verify the system generation and cabinet construction before selecting an alternative.
6. Check thermal conditions after replacement.
Do not stop testing when the fan starts. Confirm that the fan-fault indication clears and that cabinet temperature returns to the expected operating range.
Frequently Asked Questions
What is HIMA ?
HIMA is a Cabinet Fan Module used in HIMA automation-system cabinets. HIMA’s certification documentation explicitly uses this description.
Is a HIMA communication module?
No. Despite several reseller descriptions calling it a communication or safety-relay module, HIMA’s own documentation identifies as a cabinet fan module.
Which HIMA systems use ?
HIMA documentation lists with the H41, H51, H41q, and H51q automation-system modules.
Is a safety I/O module?
No. It is an auxiliary cabinet cooling component, not a conventional safety digital-input, digital-output, analog-input, or processor module.
What is the material number?
99 6920202 is associated with in an industrial procurement record. Verify the actual nameplate before using this number as the purchasing identifier.
What supply voltage does use?
A current secondary technical listing identifies 24 VDC, but this should be confirmed against the installed unit’s nameplate and applicable documentation before energizing a replacement.
Procurement Note
For a HIMA replacement, the key issue is system compatibility rather than process-control functionality. Confirm the HIMA cabinet/system family, complete marking, material number, fan arrangement, supply wiring, and fan-fault monitoring circuit.
Most importantly, do not purchase based on reseller descriptions that call a “communication module,” “CPU,” or “safety relay.” HIMA’s own certification documentation identifies the part as a Cabinet Fan Module, which is the appropriate technical classification.
