Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | HIMA |
| Model | F3322 |
| Order Number | 984332202 |
| Product Type | 16 Channel Digital Output Module |
| System Platform | HIQuad H41q / H51q |
| Output Channels | 16 digital outputs |
| Output Voltage | 24 VDC nominal |
| Output Current | 500 mA per channel |
| Maximum Load | 12 W per channel |
| Load Type | Resistive, inductive, lamp loads |
| Short Circuit Protection | Yes |
| Current Limiting Threshold | >550 mA |
| Safety Isolation | Yes |
| Output Behavior on L- Failure | Outputs switch off |
| Internal Power Consumption | 5 VDC: 110 mA |
| Additional Supply Consumption | 24 VDC: 150 mA plus load current |
| Module Width | 4 TE |
| Rack Installation | HIMA I/O subrack |
| Maximum Modules per Rack | Up to 10 output modules |
| Recommended Fuse | 4 A slow-blow |
| Simultaneous Output Load Limit | Maximum 8 A |
| Application | SIS, ESD, industrial safety control |
Product Introduction
HIMA F3322 Overview

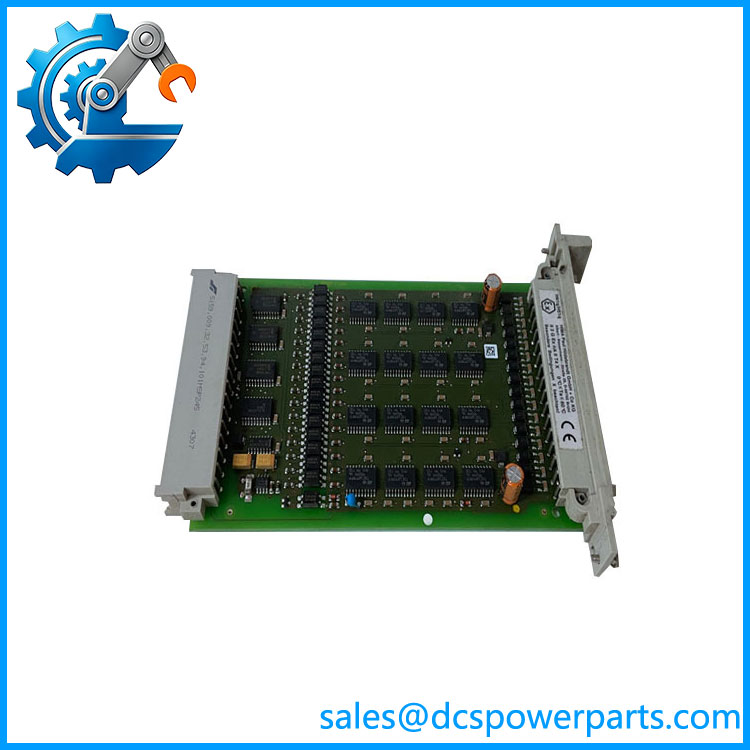

The HIMA F3322 is a 16-channel digital output module designed for HIMA HIQuad safety control systems, including H41q and H51q platforms. It provides the interface between the safety controller logic and external field devices that require discrete 24 VDC switching signals. The module is mainly used in safety-related applications where reliable actuator control and fault monitoring are required.
The HIMA F3322 receives output commands from the safety controller through the internal I/O bus and controls connected field loads through sixteen independent digital output channels. Each output channel is designed to handle resistive or inductive loads up to 500 mA, making it suitable for typical industrial actuators such as shutdown valves, relay coils, indicator lamps, and control solenoids.
The HIMA F3322 includes short-circuit protection and current limiting functions to help protect the output electronics and connected field wiring. The module monitors output conditions and provides predictable behavior during abnormal conditions. If the L- supply is interrupted, the module prevents unintended output activation by removing output signals.
The HIMA F3322 is installed in safety systems where output reliability directly affects plant protection functions. Typical installations include petrochemical facilities, power generation plants, offshore platforms, and process industries using HIMA HIQuad safety controllers.
The is not a standalone controller. Its operation depends on the complete HIQuad rack configuration, safety program, field wiring, and connected actuator circuits. When replacing an existing module, engineers should confirm the exact rack position, application configuration, terminal wiring, and safety validation requirements before returning the system to service.
F3322
Application Scenarios & Field Considerations
Engineering Pain Point
A safety system reports output channel faults, actuator control failures, or unexpected shutdown signals. The output module may be suspected, but the issue may also originate from field wiring, actuator coils, power supply conditions, or safety logic configuration.
Recommended troubleshooting steps:
- Check diagnostic indicators
- Verify 24 VDC field supply
- Measure output voltage at terminals
- Inspect actuator wiring
- Check short-circuit conditions
- Review HIMA diagnostic messages
The provides the switching interface, but the complete safety loop determines final system behavior.
Typical Applications
Emergency Shutdown Systems (ESD)
Used for:
- Shutdown valve activation
- Emergency trip circuits
- Safety interlocks
Process Safety Systems
Applied for:
- Chemical process protection
- Refinery shutdown systems
- Hazardous process isolation
Power Generation
Used for:
- Turbine trip outputs
- Burner management systems
- Auxiliary safety circuits
Industrial Machinery Safety
Applied for:
- Safety relay control
- Actuator shutdown functions
- Protective sequencing
Technical Pitfalls to Avoid
1. Verify Exact Module Type
Before replacement, confirm:
- part number
- HIQuad system type
- Rack configuration
- Application approval requirements
Different HIMA output modules may have similar appearances but different electrical characteristics.
2. Check Load Requirements
Verify:
- Solenoid coil current
- Relay coil consumption
- Inductive load characteristics
- Maximum simultaneous output load
Exceeding output limits can trigger protection or damage the module.
3. Inspect Field Wiring
Common issues include:
- Short circuits
- Damaged actuator cables
- Incorrect polarity
- Poor terminal connections
4. Maintain Safety Configuration Records
Before replacement:
- Backup safety application
- Record rack position
- Document wiring assignments
- Verify safety validation procedures
