Description
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE |
| Model | IS230TNCIH4C |
| Functional Acronym | TNCI |
| Product Family | Mark VIe |
| Module Type | Contact Input Assembly |
| Architecture | TMR |
| Processor Architecture | BPPC |
| Signal Type | Discrete / contact input |
| Installation | Mark VIe DIN-rail I/O architecture |
| Communication | IONet |
| Field Interface | Contact-input terminal assembly |
| Environmental Humidity | 5–95% RH, non-condensing |
The GE-oriented parts catalog specifically identifies IS230TNCIH4C as a “Module, Assembly, MKVIe, Contact Input Assembly, TMR, (BPPC)”. This is materially different from the generic “analog I/O card” descriptions appearing on some reseller pages.
Product Introduction
The GE IS230TNCIH4C is a Mark VIe TNCI contact-input assembly designed to bring discrete field status signals into the turbine control architecture. It is associated with the TMR/BPPC Mark VIe configuration and belongs to the distributed I/O layer rather than serving as a standalone controller or analog measurement card.
The assembly is intended for applications where turbine-control logic needs reliable status information from field contacts such as switches, interlocks, equipment states, and other discrete devices. The exact field-voltage arrangement should be verified against the installed terminal-board configuration rather than inferred from generic online listings.

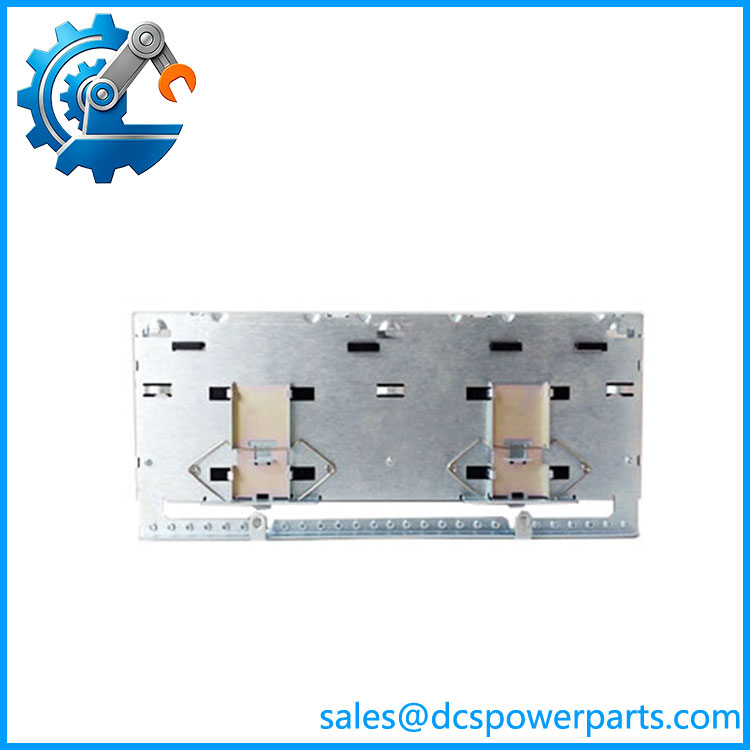

IS230TNCIH4C
Application Scenarios & Field Pitfalls — Engineer’s Perspective
Engineering Pain Point
The main replacement risk with the IS230TNCIH4C is misidentification. Several current listings describe this part as an analog I/O card, analog output module, or communication module, while GE-oriented catalogs identify the H4C configuration as a Mark VIe TMR contact-input assembly.
Typical Applications
- GE Mark VIe turbine control — acquisition of discrete field status signals.
- TMR turbine-control architectures — contact inputs used within redundant control and monitoring logic.
- Turbine interlock monitoring — switch and contact states used by control sequences and permissives.
- Power-generation automation — field status acquisition from turbine auxiliaries and associated equipment.
Technical Pitfalls to Avoid
- Do not classify IS230TNCIH4C as an analog input module.
The H4C designation is documented as a contact-input assembly, not a conventional analog input/output board. - Match the TMR/BPPC architecture.
The H4C catalog designation explicitly associates this assembly with TMR and BPPC. Substituting another TNCI variant without checking the processor and redundancy architecture can create an integration problem. - Verify field-voltage specifications from the actual system documentation.
Some reseller pages publish 24 VDC, 110 VDC, 125 VDC, or 220 VDC values for this part without reliable supporting documentation. I would not treat those values as verified specifications for the H4C itself. - Do not confuse the TNCI assembly with the controller or I/O processor.
The IS230TNCIH4C belongs to the I/O/interface layer. Its presence does not eliminate the requirement for the appropriate Mark VIe processor, I/O network, and terminal hardware.
Related Products
- IS230TNCIH3C — related Mark VIe TNCI contact-input assembly with a different hardware configuration.
- IS230TNCIH5C — related Mark VIe input assembly; verify its exact electrical and processor configuration before substitution.
- IS230TNCIH6C — another Mark VIe TNCI input assembly variant.
- IS230TBAIH2C — TBAI analog I/O assembly; used for analog signals rather than the TNCI contact-input function.
- IS230TNAIH2C — Mark VIe analog input assembly with a different signal-processing function.
- IS230TNAOH1C — Mark VIe analog output assembly.
- IS230TNRLH1B — Mark VIe TMR relay-output assembly.
- IS230TNEAH1A — Mark VIe TMR trip/protection assembly.
- IS220UCSAH1A — Mark VIe UCS controller/I/O processor family component, serving a different system role.
Procurement and Replacement Notes
For an , verify these items before approving a replacement:
- Complete part number:
- TNCI functional designation
- Mark VIe platform
- TMR architecture
- BPPC processor compatibility
- Associated terminal assembly
- Field contact-voltage arrangement
- IONet architecture
- Existing control-system configuration
- Hardware revision and nameplate information
- Field wiring and terminal assignments
- ToolboxST/Mark VIe configuration where applicable
Recommended procurement description:
GE Mark VIe TNCI Contact Input Assembly, TMR, BPPC-Compatible, Discrete Field Input Interface for GE Speedtronic Turbine Control.
The important identification point is that is a Mark VIe TMR contact-input assembly, not a generic analog I/O card. The H4C suffix should be matched against the installed BPPC/TMR architecture and field terminal configuration rather than substituting another TNCI variant based only on physical appearance.
