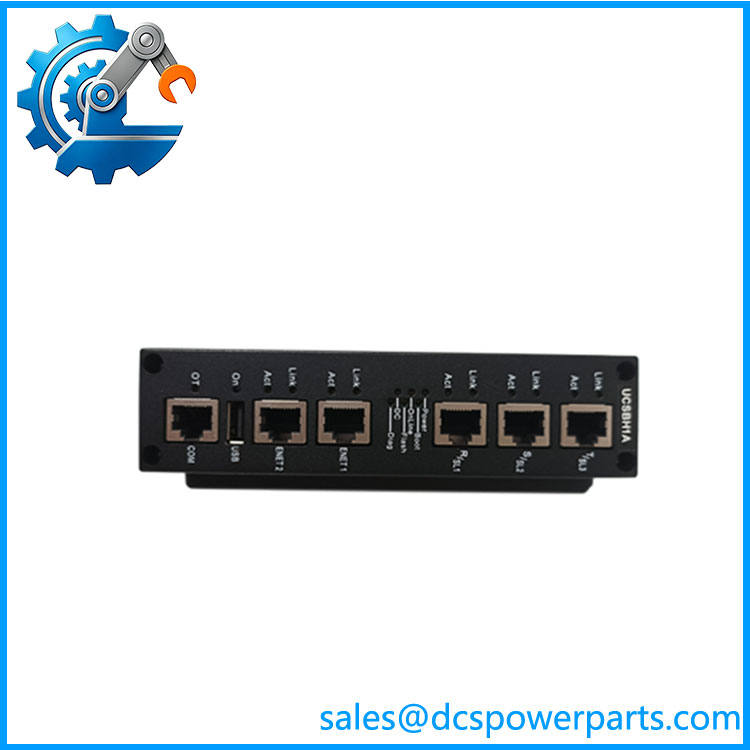

IS420UCSBH1A
GE Vernova Mark VIe UCSB Standalone Controller
Product Overview
IS420UCSBH1A is a UCSB (Universal Control System Board) standalone computing controller built for GE Speedtronic Mark VIe control platforms. It serves as the core logic execution unit for turbine and generator control systems, running on QNX real-time operating system. Different from traditional rack-based controllers, this unit adopts independent panel mounting architecture without relying on shared backplanes. It connects distributed I/O packs via dedicated IONet network, executes closed-loop regulation, sequence control and equipment protection algorithms. It supports simplex, duplex and TMR triple redundant configurations, widely deployed for gas turbines, steam turbines, generator excitation and critical rotating machinery control projects.
Core Strengths
- Fanless and battery-free mechanical design, minimizing vulnerable moving parts and lowering long-term maintenance workload
- High-precision IEEE 1588 time synchronization over IONet, realizing microsecond-level unified clock for distributed I/O modules
- Multiple built-in Ethernet IONet ports, supporting reliable bidirectional real-time data exchange between controller and field I/O packs
- Equipped with ECC error-correcting memory to avoid logic misoperation caused by random memory bit errors
- Supports online partial modification of control application programs without full system restart
- Complete onboard self-test mechanism; front panel LED indicators clearly display power, communication and fault status
- Integrated thermal radiator structure for passive heat dissipation, stable operation under large ambient temperature fluctuation
- Conformal coated circuit board enhances resistance against humidity, dust and corrosive atmosphere inside power station control rooms
- Compatible with Mark VIe, EX2100e and LS2100e series control systems, convenient for equipment renewal and spare replacement
IS420UCSBH1A
Technical Parameters
| Parameter Item | Specification |
|---|---|
| Model | IS420UCSBH1A |
| Manufacturer | GE Vernova (GE Energy) |
| Product Type | UCSB Universal Standalone Controller |
| Processor | Intel EP80579 600 MHz |
| Memory | 256 MB DDR2 ECC RAM, 2 GB NAND Flash |
| Operating System | QNX Neutrino Real-Time OS |
| Power Supply | 18–36 VDC, nominal 24/28 VDC |
| Communication Interfaces | Multi-channel IONet Ethernet, RS232/RS485 serial port, USB service port |
| Synchronization Protocol | IEEE 1588 PTP |
| Redundancy Scheme | Simplex / Duplex / TMR triple modular redundancy optional |
| Mounting Method | Direct panel mounting |
| Cooling Mode | Passive natural convection, fanless |
| Operating Temperature | -30 ℃ ~ +65 ℃ |
| Storage Temperature | -40 ℃ ~ +85 ℃ |
| Relative Humidity | 5% – 95% RH, non-condensing |
| Protection Standard | Meet IEEE 1613 substation EMC requirements |
Installation & Commissioning Guidelines
Cut off all power circuits before installation. Wear anti-static wrist strap to prevent electrostatic damage to internal chips. Fix the controller firmly on the cabinet panel and reserve sufficient clearance around the radiator to guarantee smooth heat dissipation.
Separate IONet communication cables, serial signal wires and power cables during wiring. Shielded network cables shall be adopted for IONet links, and single-point grounding shall be implemented as required to restrain electromagnetic interference.
After wiring inspection, carry out segmented power-on. Connect configuration software to download control logic, set network addresses, IONet topology and redundant synchronization parameters. Conduct communication verification between controller and each I/O pack.
Simulate operating conditions and fault signals to verify control response, protection action and event recording function. Confirm data transmission to upper HMI and SCADA system is stable. After acceptance, add regular inspection arrangements to check operating temperature, communication status and historical fault records.
Main Application Fields
Thermal Power Plant Turbine Control
Speed regulation, load control and safety protection for steam turbine and gas turbine units.
Generator Excitation Control Systems
Core control hardware for EX2100e static excitation equipment, realizing automatic voltage adjustment and parallel operation control.
Combined Cycle Power Generation Units
Coordinated control of gas turbine, steam turbine and heat recovery auxiliary equipment.
Offshore & Onshore Oil & Gas Facilities
Control of large compressors and rotating machinery on production platforms and refineries.
Power Plant Control System Retrofit Projects
Direct replacement of aging Mark VIe controller hardware, matching original I/O architecture and control logic.
